APPLIANCE ELECTRICAL CONNECTION
The electric connection must comply with the current legal standards and regulations. Before making
the connection, check that:
• The system electrical rating and the current outlet are adequate for the maximum power output of
the appliance (see the label applied to the bottom of the casing).
• The outlet or the system is equipped with an efficient ground connection in accordance with
the current legal standards and regulations. The manufacturer will not be responsible for the
noncompliance with these instructions.
• The power cord is supplied with a 15A plug, suitable for the load indicated on the label and a
standard 15A GPO.
• The power cord must be positioned so that a temperature of 75°C will not be reached
at any point.
• Do not use reductions, adapters or splitters since they might cause false contacts and lead to
dangerous overheating.
When the connection is made directly to the electric network:
• Use a device that ensures disconnection from the mains in which the contacts are opened to
a distance that permits complete disconnection according to the conditions for over-voltage
category III.
• The disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The ground wire must not be interrupted by the circuit-breaker.
• As an alternative, the electric connection can also be protected by a high-sensitivity residual
current circuit- breaker but this may be subject to nuisance tripping due to residual humidity in
heating elements.
• It is highly recommended to attach the special green-yellow ground wire to an efficient
ground system.
WARNING: If the power cord is replaced, the ground wire (yellow-green) connected to the
terminal, should be longer than the other wires by about 2 cm.
WARNING: if the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or similarly qualified person in order to avoid a hazard.

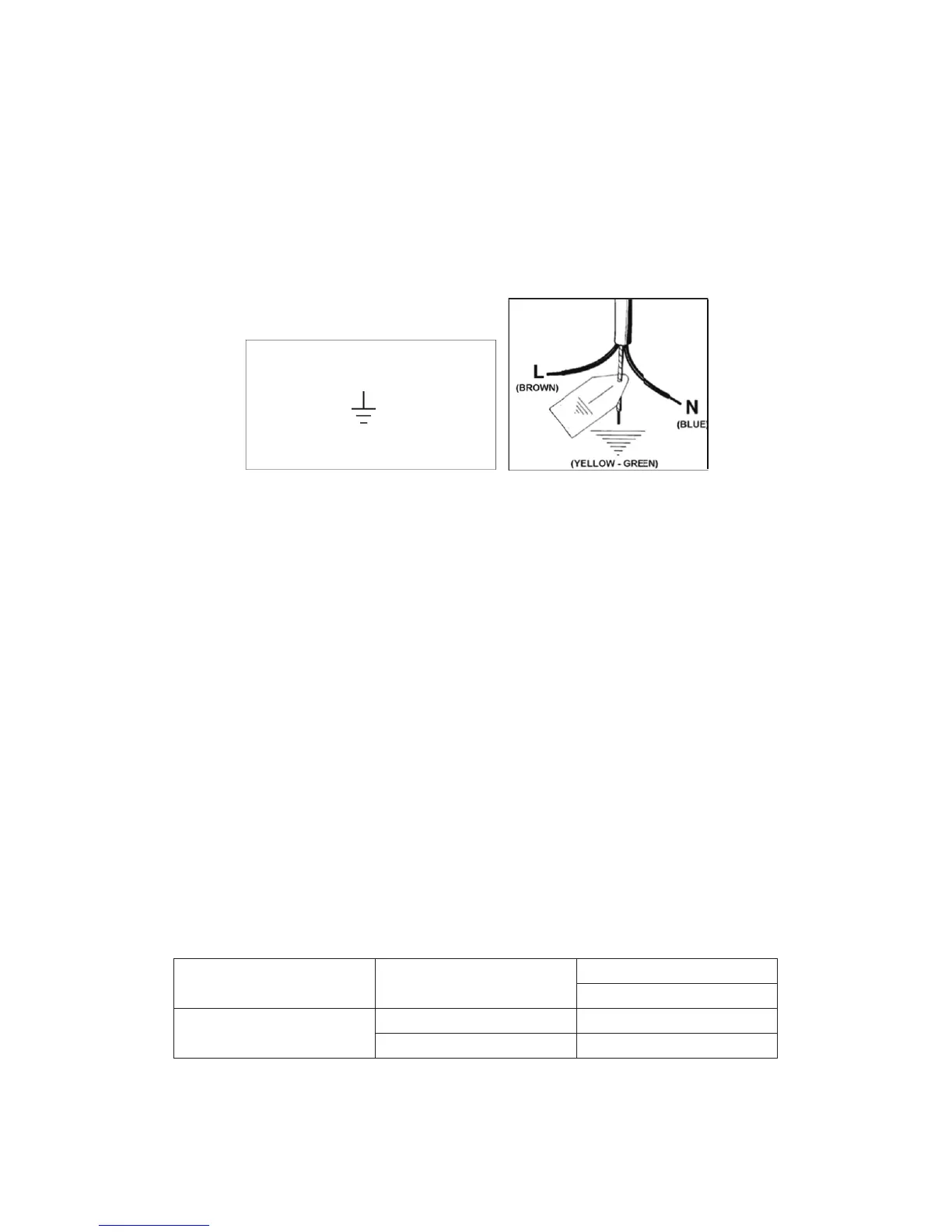

Fig. 16
Letter L (phase) =brown w i r e ;
Letter N (neutral) = blue w i r e ;
Ground symbol = green - yello w
wi r e ;
Work surface operation Oven operation
Cross section
230V ~
Only gas burner
Multifunction electric oven 3 x 1.5mm
2
Gas oven/Electric grill 3 x 1mm
2
TABLE N°3: TYPES OF POWER CORDS
The appliance conforms to the regulation AS4551 regarding gas appliance for domestic use and
AS/NZS60335.26 regarding safety and CSPR 14 regarding electromagnetic compatibility.
