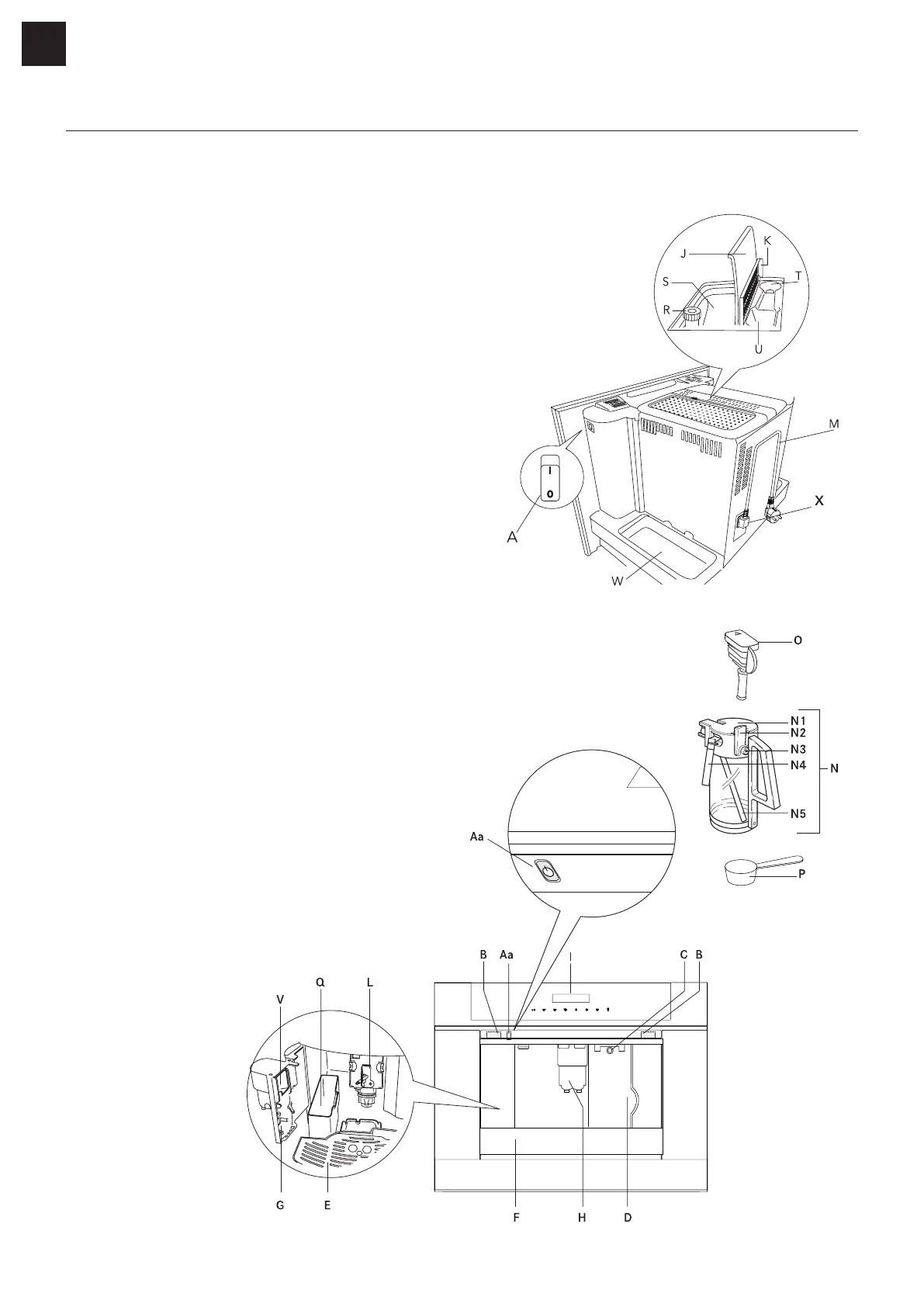

OVERVIEW
Description
A. Main switch / Aa. On/Stand-by button
B. Handles
C. Nozzle
D. Water tank (removable)
E. Cup tray
F. Drip tray grill (removable)
G. Service door
H. Height adjustable coffee dispenser
I. Control panel
J. Coffee bean holder cover
K. Ground coffee chute cover
L. Brewing unit
M. Power cable
N. Milk container:
N1. Cover (removable)
N2. Slider Caffe latte/Cappucino (removable)
N3. Clean button
N4. Milk dispenser pipe (removable)
N5. Suction pipe (removable)
O. Hot water spout (removable)
P. Measuring spoon for preground coffee
Q. Waste coffee container (can be taken out)
R. Knob for setting the grind level
S. Coffee bean container
T. Place for the measuring spoon
U. Filling chute for preground coffee
V. Coffee guide
W. Place for accessories (left and right)
X. IEC Connector
