Connection to exhaust flue
Connect the cooker hood with a pipe or
tubing Ø160 mm.

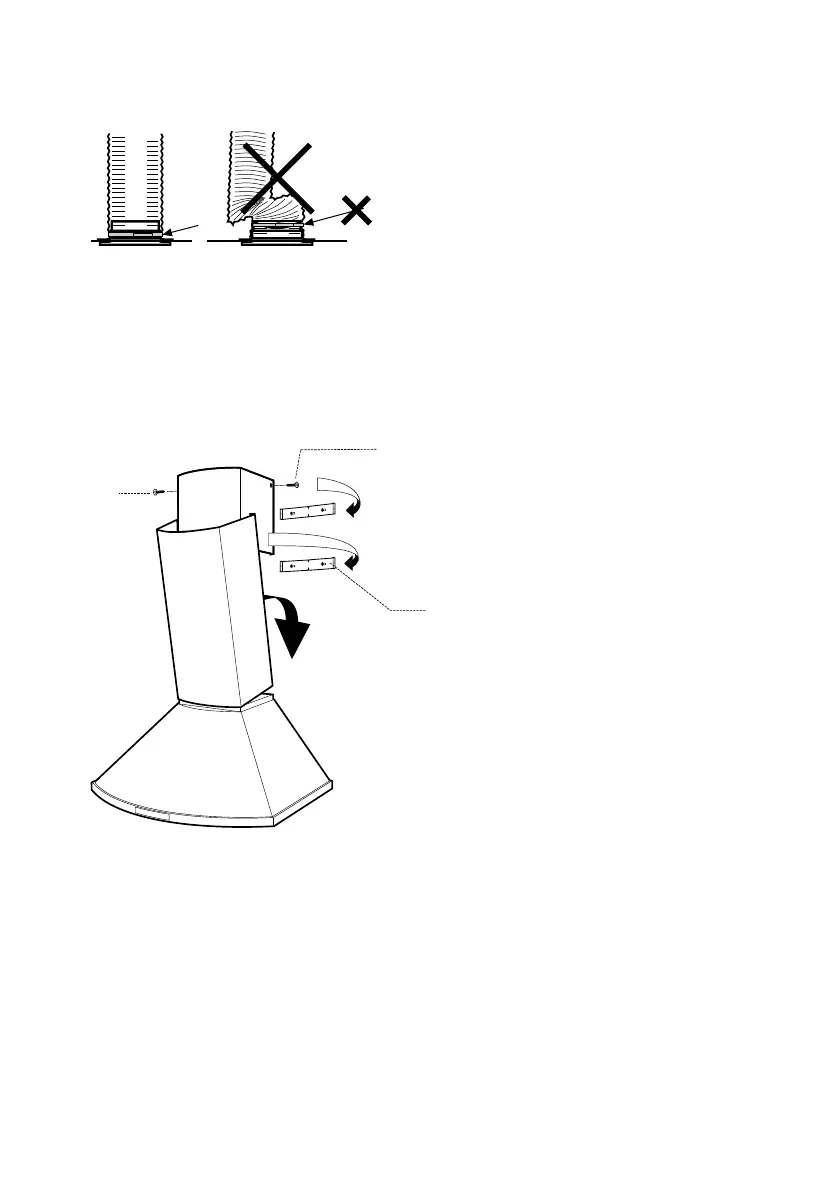

Fig. 5
Attention!
When using connecting tubing, the tub-
ing must be stretched and installed di-
rectly adjacent to the connection, Fig. 5.
Mounting the chimney
Fig. 6
Chimney upper section
Gently bend the two sides of the upper
chimney section outwards and hook them
on the brackets D. Make sure they are
secure.
Attach the sides to the upper brackets us-
ing screws G (2.9 x 9.5 mm), Fig. 6.
Chimney, lower section
Gently bend the two sides of the lower
chimney section outwards and lower it on
to the hood. Hook the bottom of the chim-
ney section into place. Make sure they are
properly in position.
Removal of protective plastic
Remove all protective plastic from the filter
and any other parts of the product.
991.0520.120/D000000006918/180382/2021-10-08 13
