Winding the coils

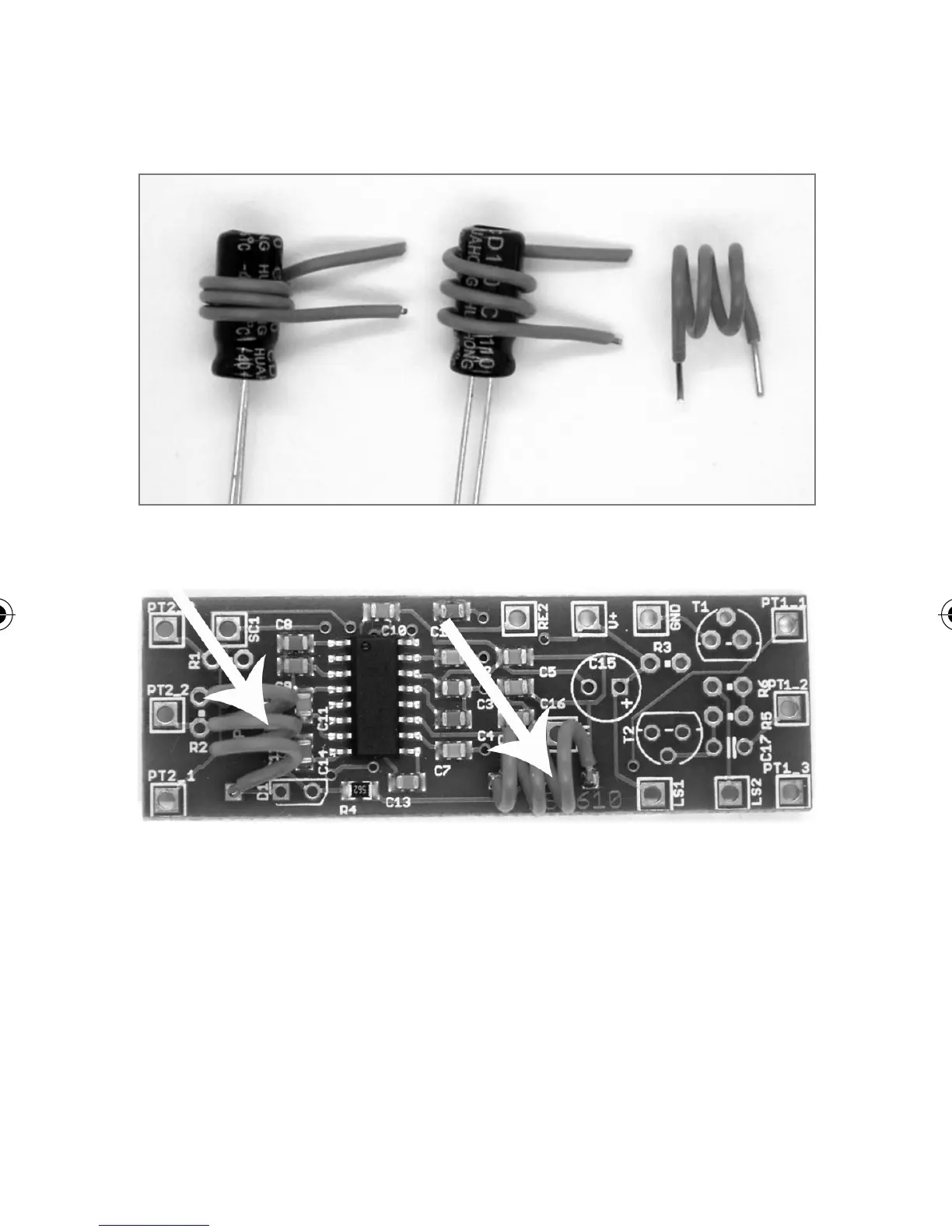

Installation of the coils
Insert the resistors R1 (4.7 kΩ, yellow, violet, red), R2 (220 kΩ,
red, red, yellow) close to the connections to potentiometer PT2.
The resistors R3 (1 k
Ω, brown, black, red), R5 (330 kΩ, orange,
orange, yellow) and R6 (33
Ω, orange, orange, black) belong to
