Soldering
The board contains a large number of SMD components (sur-
face-mounted device, wireless components) already soldered
on: the receiver IC TDA7088, 15 condensers and one resistor.
You will only need to solder in some components with con-
necting wires. This includes all components of the AF amplifier,
the coils and all components needed for the diode tuning of
the radio.

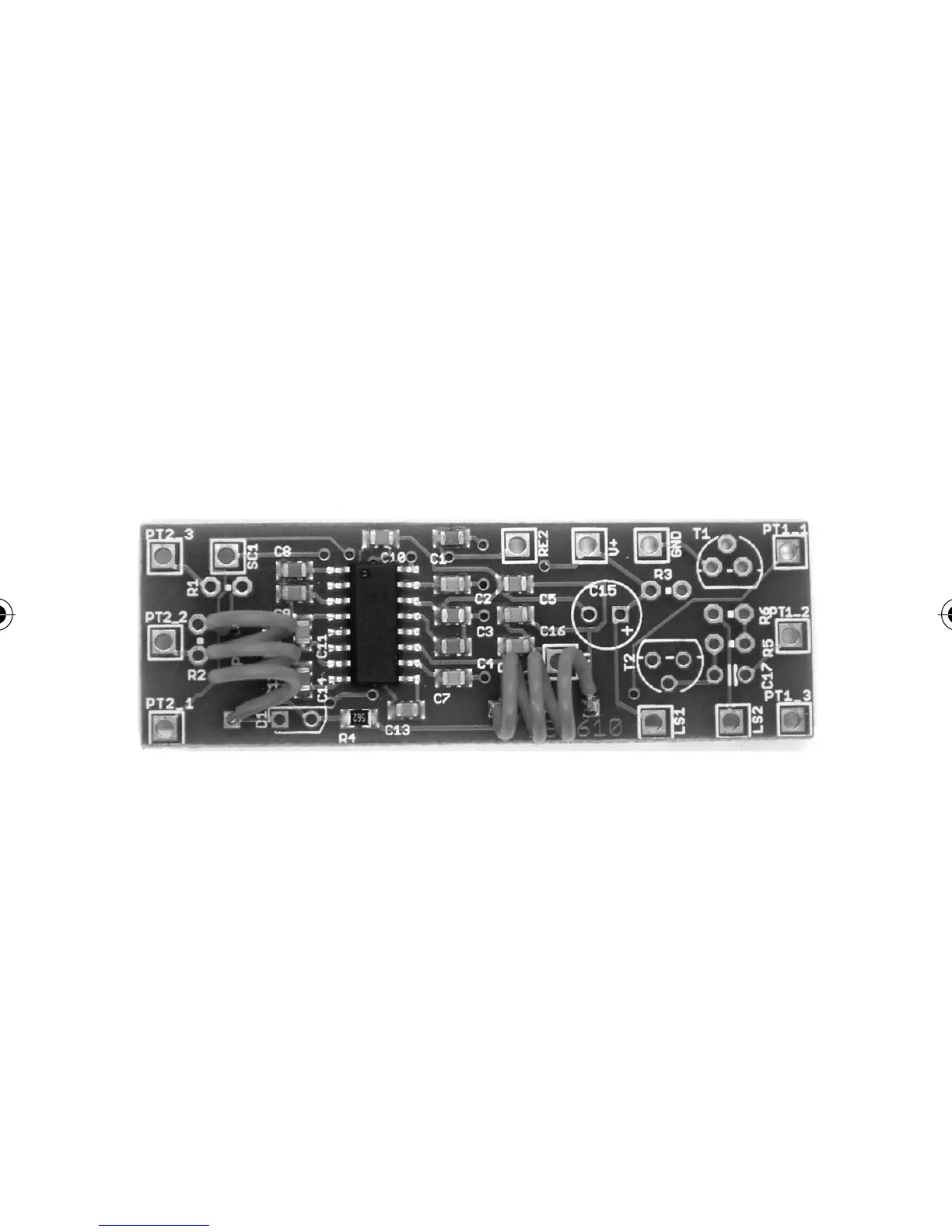

The SMD components
Now the PCB is to be assembled, please refer to the circuit dia-
gram on the last page of the manual for orientation.
