12
the AF amplifier on the other side of the board. The resistor
R4 (5.6 k
Ω) is already soldered as an SMD component. Now
bend the connecting wires so that they are suited for vertical
assembly.

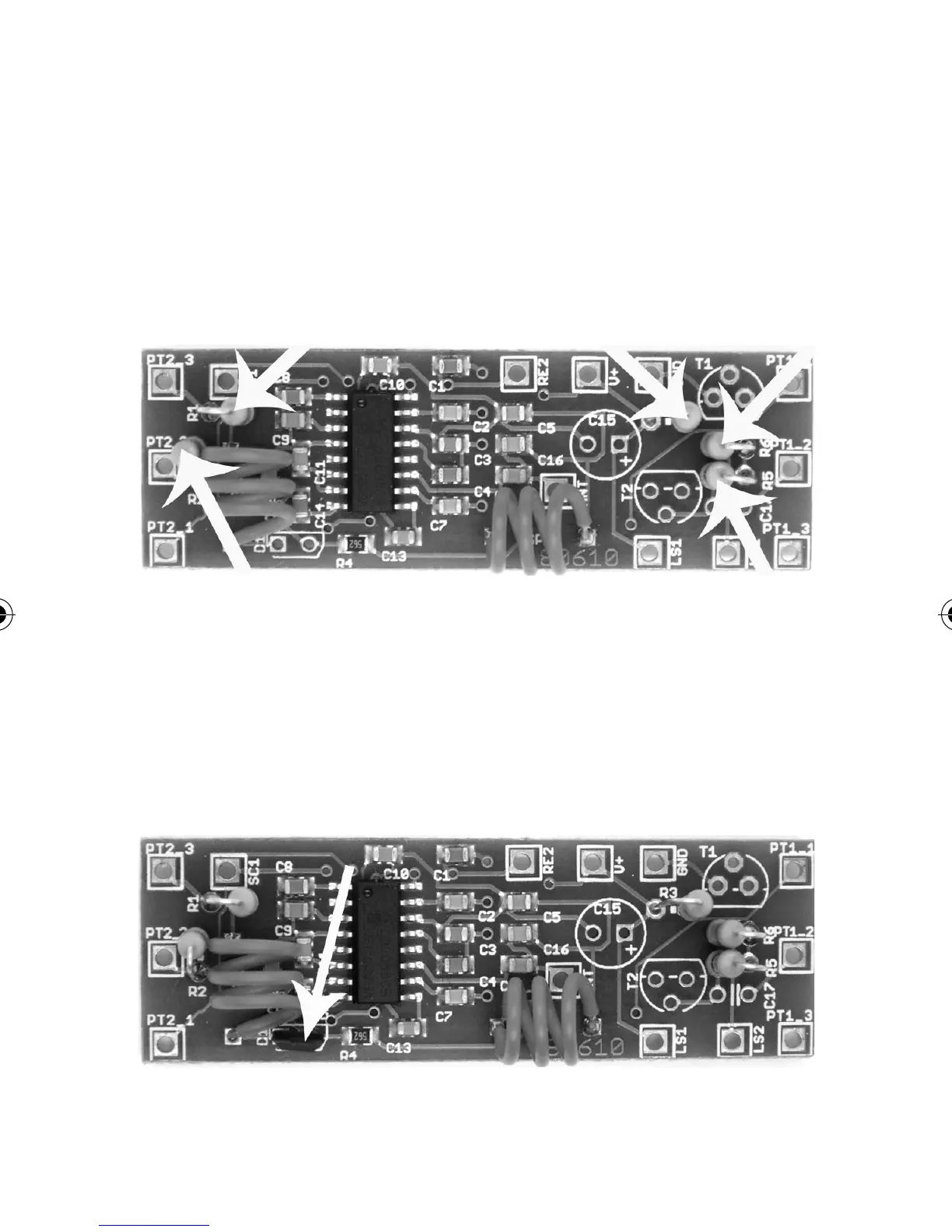

The resistors
Solder the D1 varactor diode (1SV101 in the flat transistor
housing with two connections, imprint V101), following the
direction shown on the PCB marking. The flat, printed side
points towards the coil.
The D1 varactor diode
