Assembly

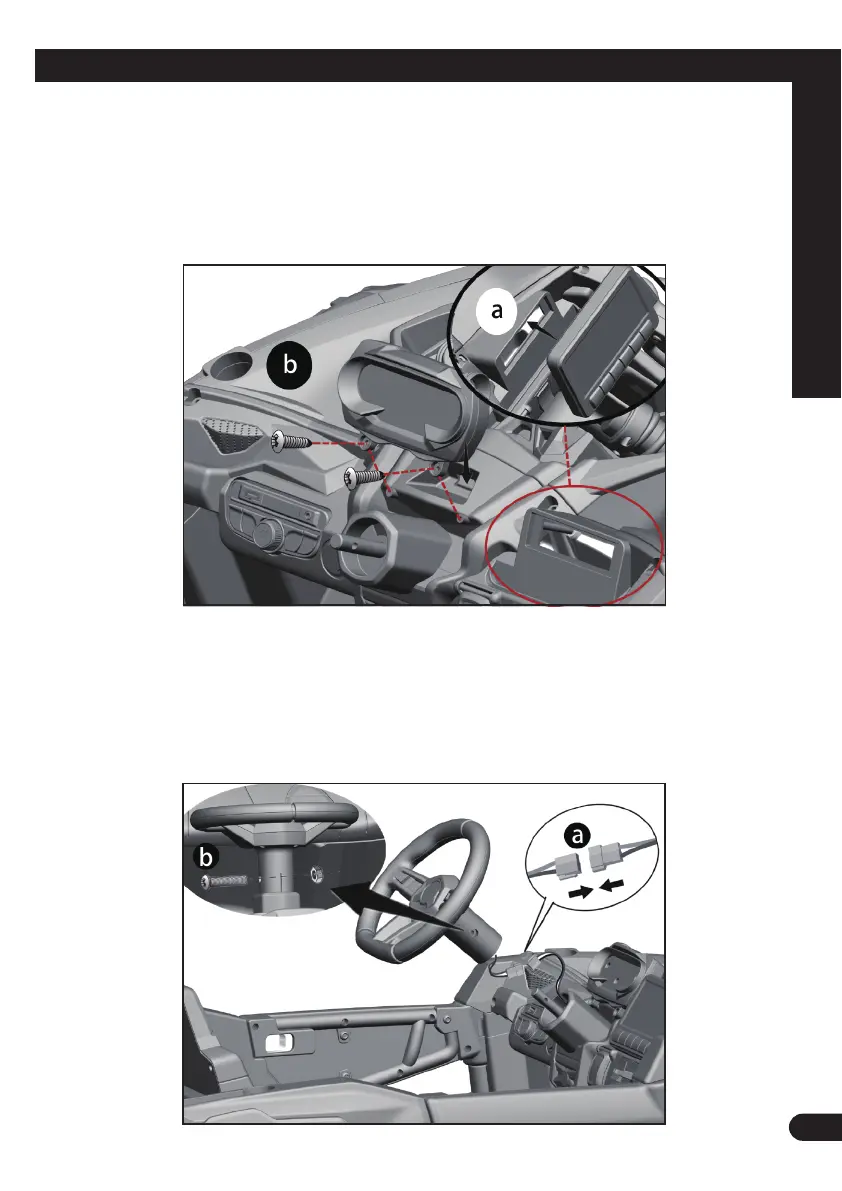

11. Install dashboard and plastic trim
a. Stuck the plastic trim on dashboard into dashboard when under the MP3
version, it not including under the MP4 version.
b. Insert part1 into dashboard and fix it with 2 pcs of M4*12mm self-
tapping screws.
12. Install steering wheel
a. Connect lines both from steering wheel and dashboard according to
the picture.
b. Insert steering wheel into dashboard and fix it with M5*35mm screw
bolt and M5 locking screw.
Installation steps
