4.4.1 Probe tool
Push the non-chamfered end of the probe tool
into the free end of the suction hose.
Note The probe tool does not need the
adaptor.

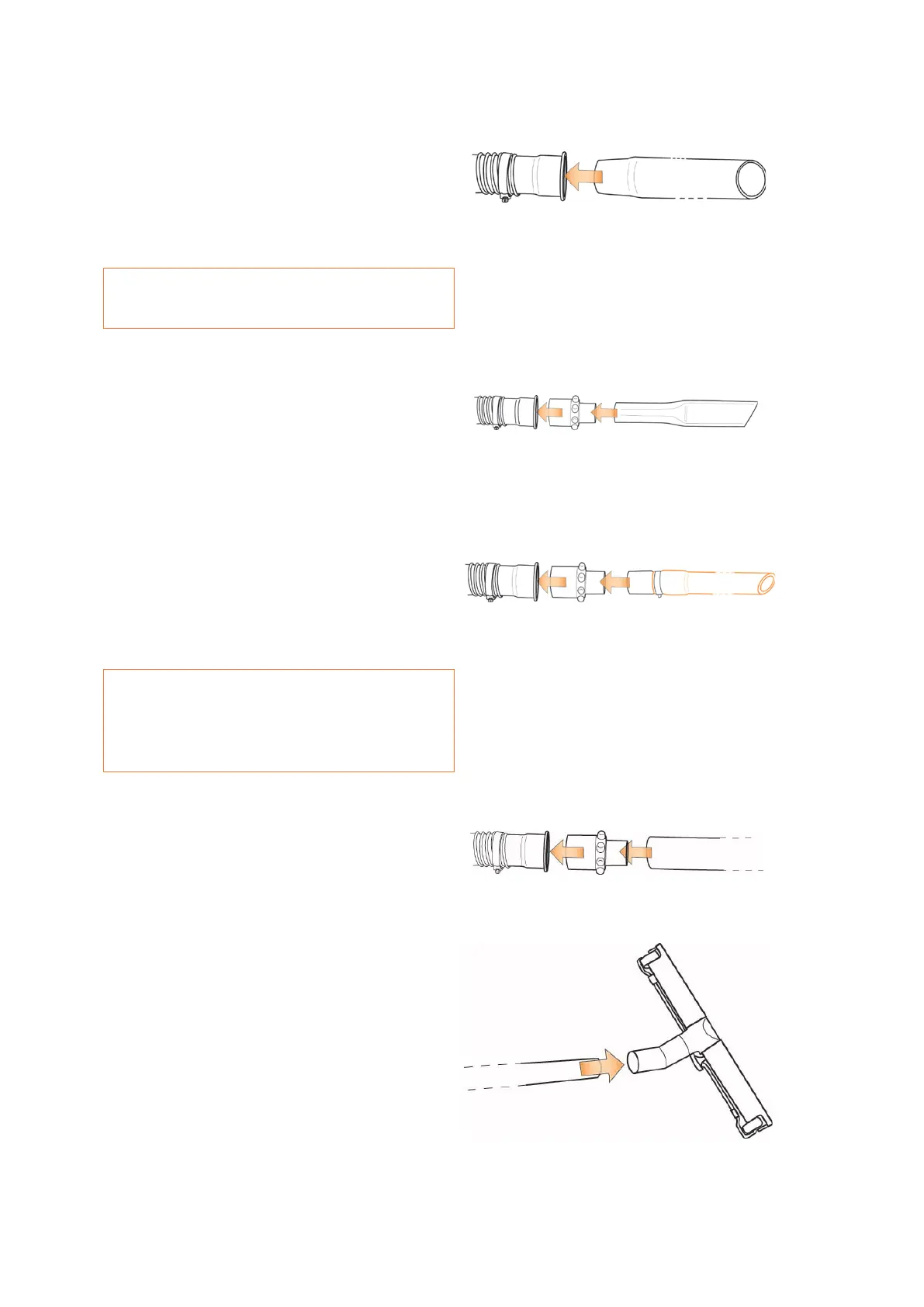

Figure 4-10: Fit the probe tool
Hint The chamfered end of the probe tool can
be rotated to act as a scoop if necessary.
4.4.2 Crevice tool
Fit the adaptor into the free end of the suction
hose.
Push the crevice tool onto the adaptor.
Figure 4-11: Fit the crevice tool
4.4.3 Flexible bench tool
Fit the adaptor into the free end of the suction
hose.
Push the non-chamfered end of the flexible
bench tool onto the adaptor.
Figure 4-12: Fit the flexible bench tool
Hint You can cut the end soft polyurethane
tool once it has started to wear down or
to give a different angle at the end of the
tool.
4.4.4 Floor tool
Fit the adaptor into the free end of the suction
hose.
Push the extension tube onto the adaptor.
Figure 4-13: Fit the adaptor and extension
tube
Push the extension tube into the floor tool.
Figure 4-14: Fit the floor tool
