22 FPQ41 Superminor Issue 1
3. After discharge
When you have finished emptying the tank:
 Close the discharge valve

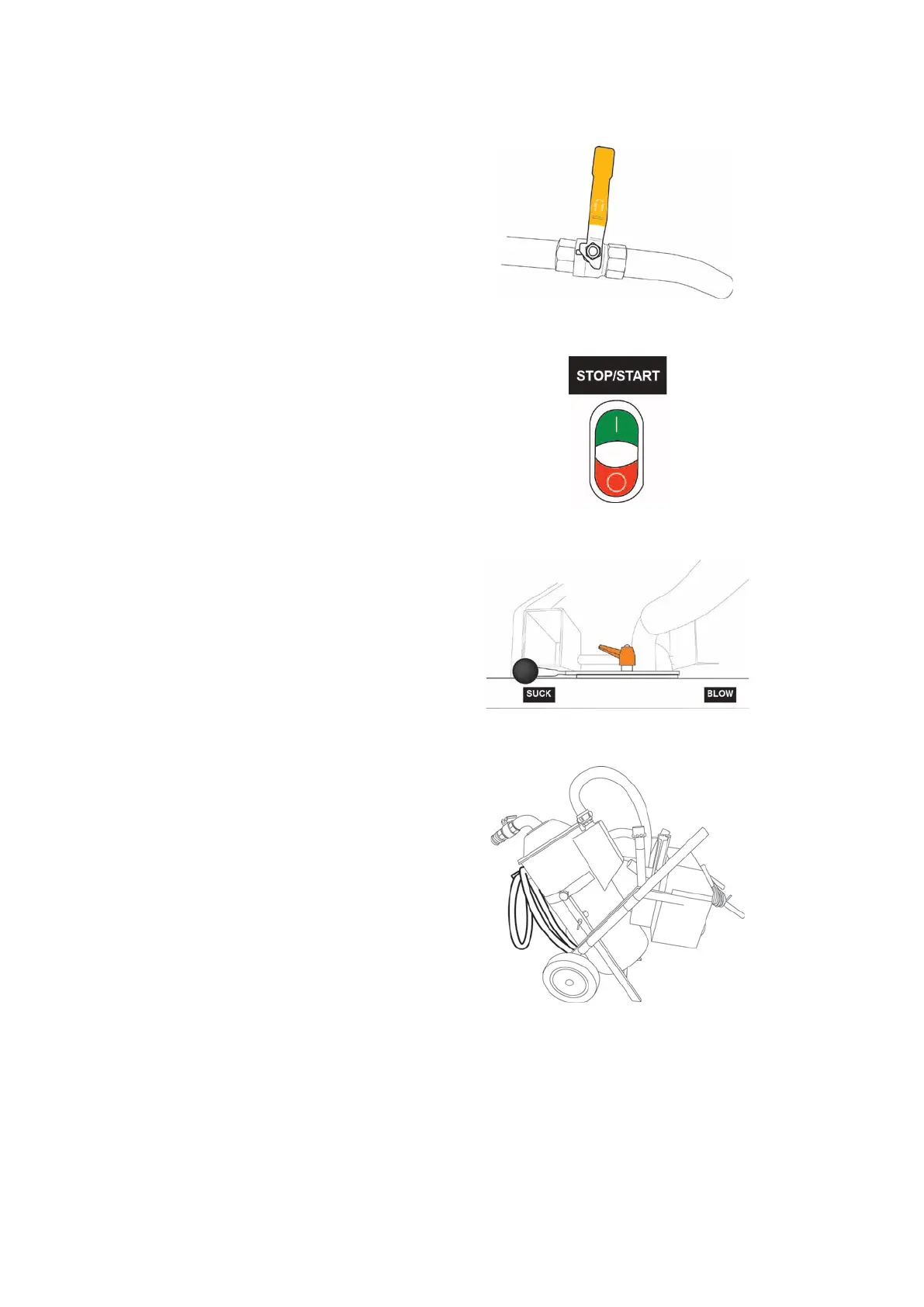

Figure 4-36: Discharge valve closed
 Press the red
O
button on the power
switch
Figure 4-37: Power switch

Select SUCK on the Suck/Blow valve to
prevent any spillages when you next start
the machine
Figure 4-38: Select SUCK
 Wind up the return hose and place the
discharge nozzle into its holder
Figure 4-39: Discharge pipe and nozzle in
their stored position
