Freedom 20 - Recommended Fuse Types and Assembly

Part No. 90-0113-00
Fdmman2.p65 2/98
INSTALLATION
+ (red)
For Freedom 10, 15
200 Amp Fuse & Holder PN# 84-4155-00 (C/R)*
200 Amp Fuse & Holder PN# 84-4158-00 (R/R)**
200 Amp Fuse Only PN# 84-4157-00
For Freedom 20, 25
300 Amp Fuse & Holder PN# 84-4156-00 (C/R)*
300 Amp Fuse & Holder PN# 84-4154-00 (R/R)**
300 Amp Fuse Only PN# 84-4151-00
*C/R. . . . . Compression/Ring Terminal
**R/R. . . . . Ring/Ring Terminal
FUSE HOLDER
FUSE
BATTERY
CABLE
INVERTER
CABLE
FLAT WASHER
LOCK WASHER
NUT
FUSE HOLDER
FUSE
BATTERY
CABLE
INVERTER
CABLE
FLAT WASHER
LOCK WASHER
NUT
COMPRESSION / RING TERMINAL
Recommended Fuse: Class T JLLN This
fuse with fuse holder is available from your
dealer or Heart Interface.
RING / RING TERMINAL
Improper stack up of hardware will cause
excessive heat and fuse failure. Stack up
as shown.
WARNING

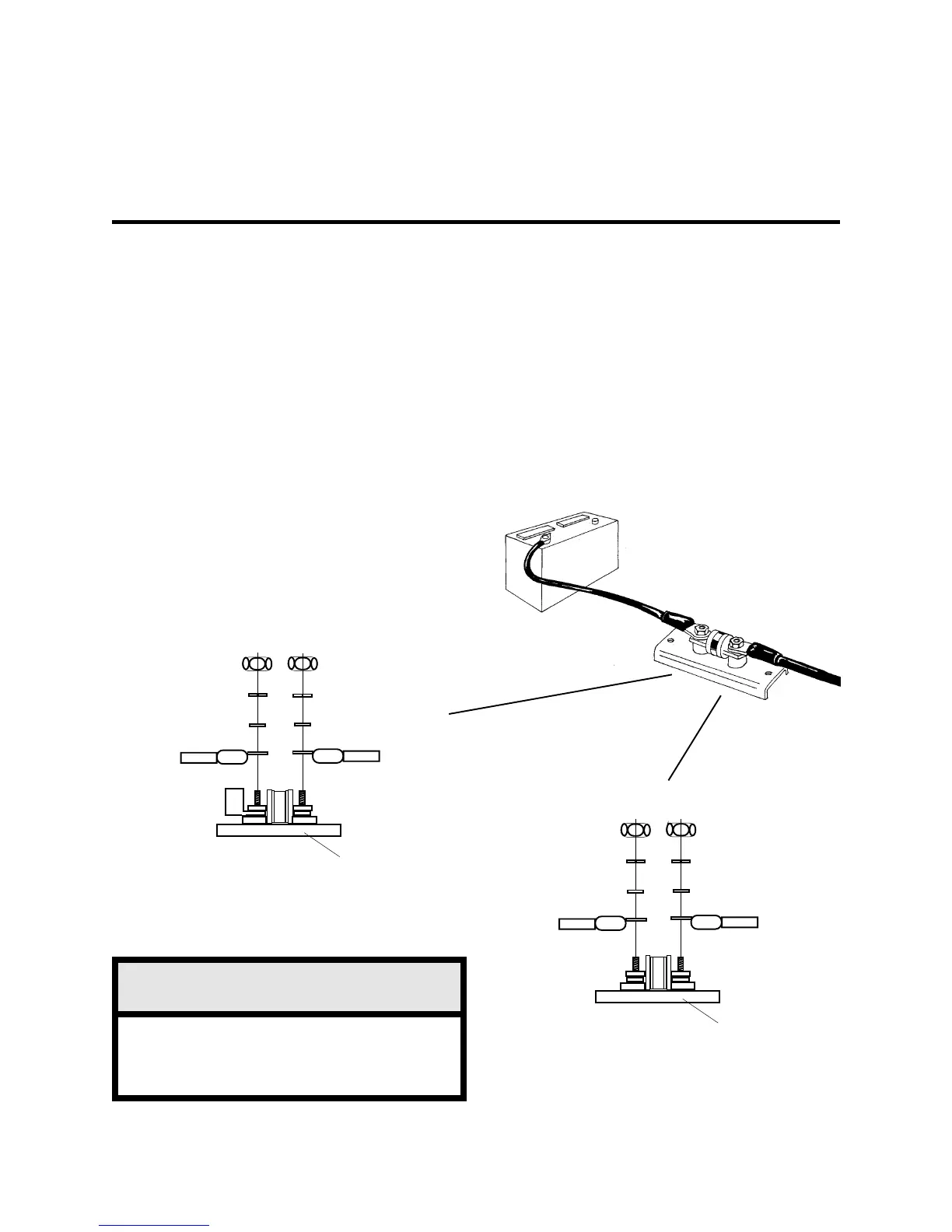

EXPLODED VIEW
OF FUSE ASSEMBLY
+
_
25
