6

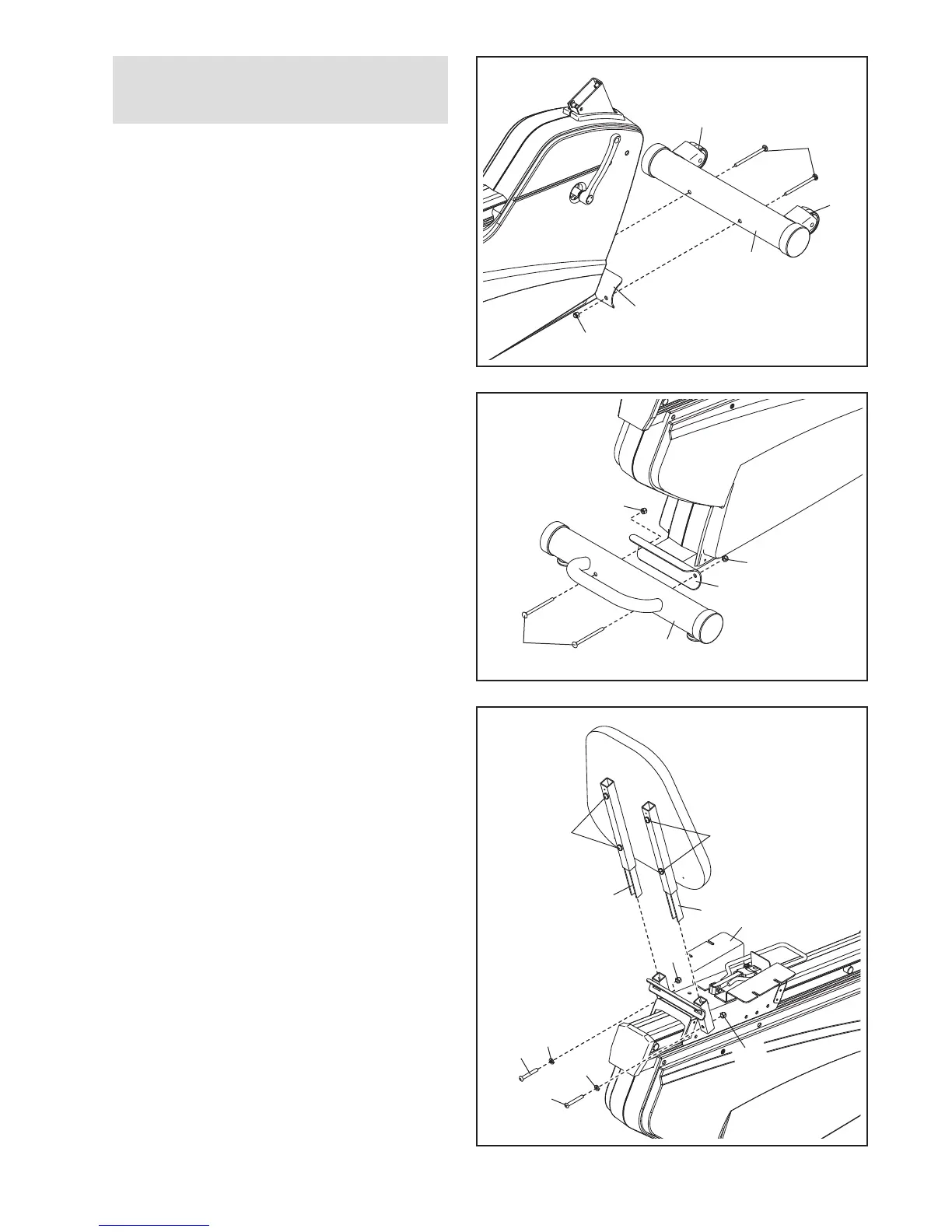

2. While another person lifts the rear of the Frame
(1), attach the Rear Stabilizer (16) to the Frame
with two M10 x 96mm Button Bolts (65) and two
M10 Locknuts (91).
91
91
16
65
1
2
3
3. Tip: Loosen the four M6 x 38mm Button
Screws (25) if the Backrest Tubes (52) do not
slide into the Seat Carriage (41).
Insert the Backrest Tubes (52) into the Seat
Carriage (41).
Attach each Backrest Tube (52) with an M8 x
35mm Button Bolt (72), an M8 Split Washer
(93), and an M8 Locknut (99). Make sure that
the Locknuts are in the hexagonal holes in
the Seat Carriage. Do not tighten the Button
Bolts yet.
72
52
52
25
25
41
93
72
93
1.
Orient the Front Stabilizer (15) with the Wheels
(17) in the position shown.
Attach the Front Stabilizer (15) to the Frame (1)
with two M10 x 96mm Button Bolts (65) and two
M10 Locknuts (91). Note: Only one Locknut is
shown.
15
91
1
1
6
5
17
17
99
99
To make assembly easier, read the
i
nformation on page 5 before you begin.
