Freewing SebArt F-104 STARFIGHTER - Assembly: Nose Cone & Air Brake; Nose Cone Attachment; Air Brake System Installation

6
Item No.:FJ310
F-104S Starfighter
M
a
g
n
et
1
A
2
B
C
3
DD
4
E

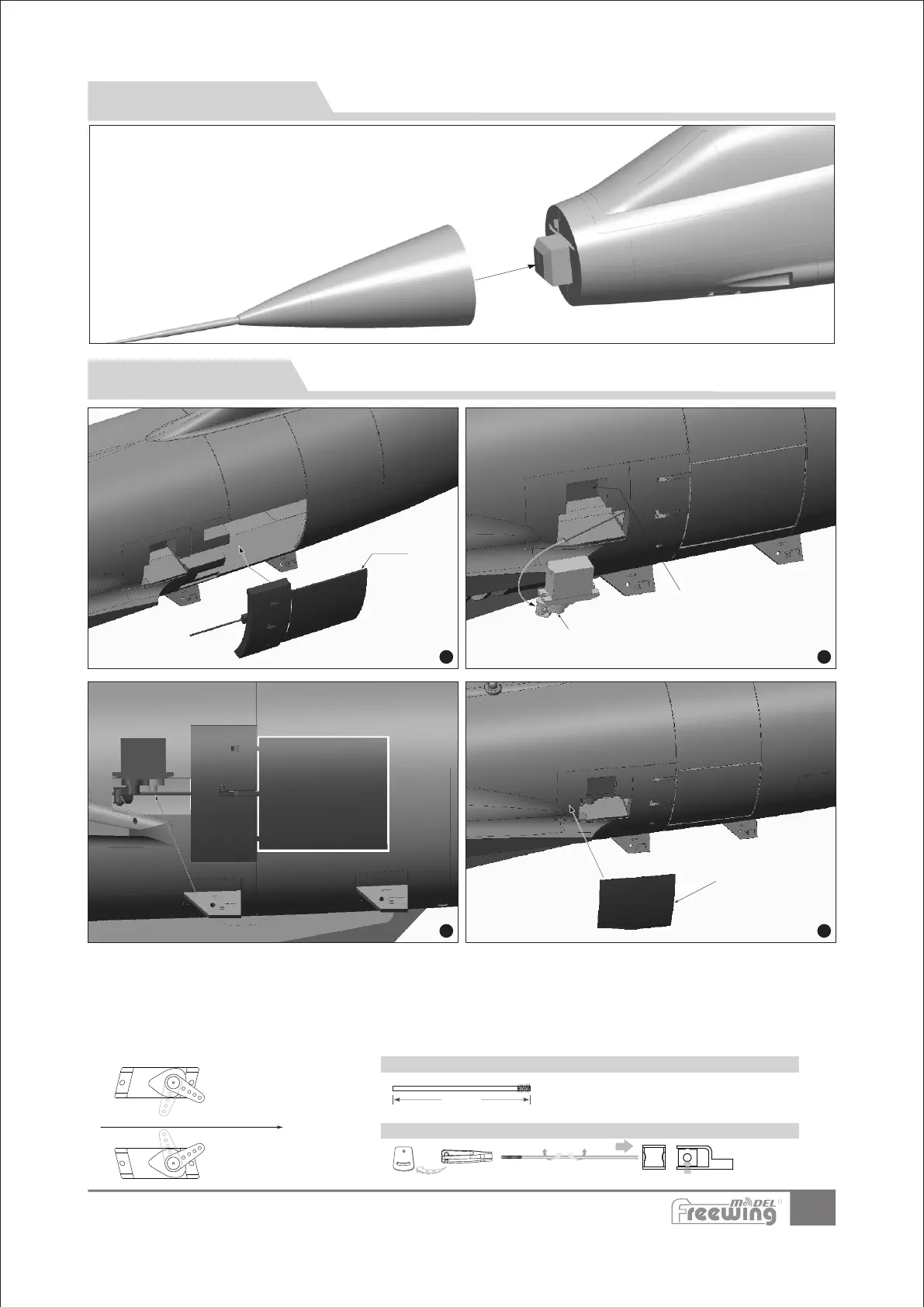

1.Through servo tester or radio to correct the
servo arm on the move- starting position；
2.Use glue to attach the speed brake set (A) on two side of fuselage.
3.Use glue to attach the servo(B) on the servo mount(C). In installing,please note:
-Connect the servo cable and fuselage extension cable and fix well.
-Insert the pushrod to the fixed bolt of servo arm.
4.Keep the airbrakes is in closed position,fix well the screws of fixed bolt.
5.After test OK,use glue to attach the servo box cover in order to protect servo！
move forward to nose direction
EN
Install air-brake
Step Step
StepStep
(1.97in)
50mm
Rotating pushrod,can increase
or reduce control distance.
Air-brake pushrod size
Air-brake pushrod mounting hole
Pushrod diameter:Ø1.5mm
A-
B-16g Servo
C-Servo fixed mount.
Air-brake set
E-Servo cover
D-Pushrod
EN
Install nose cone
Since we use the magnet structure,we only need
to attach the nose cone on the nose fuselage.
R
