Check the tightness of the piston rod nut. See
Table 1 for torque values. Tighten if needed.
f420731a
1
2
A
B
06/25/93
A. Do not remove this clamp ring. B. Do not remove the factory-sealed clamp ring.
1. MGM "E" Series Brake Chamber 2. MGM "TR-T" Series Brake Chamber

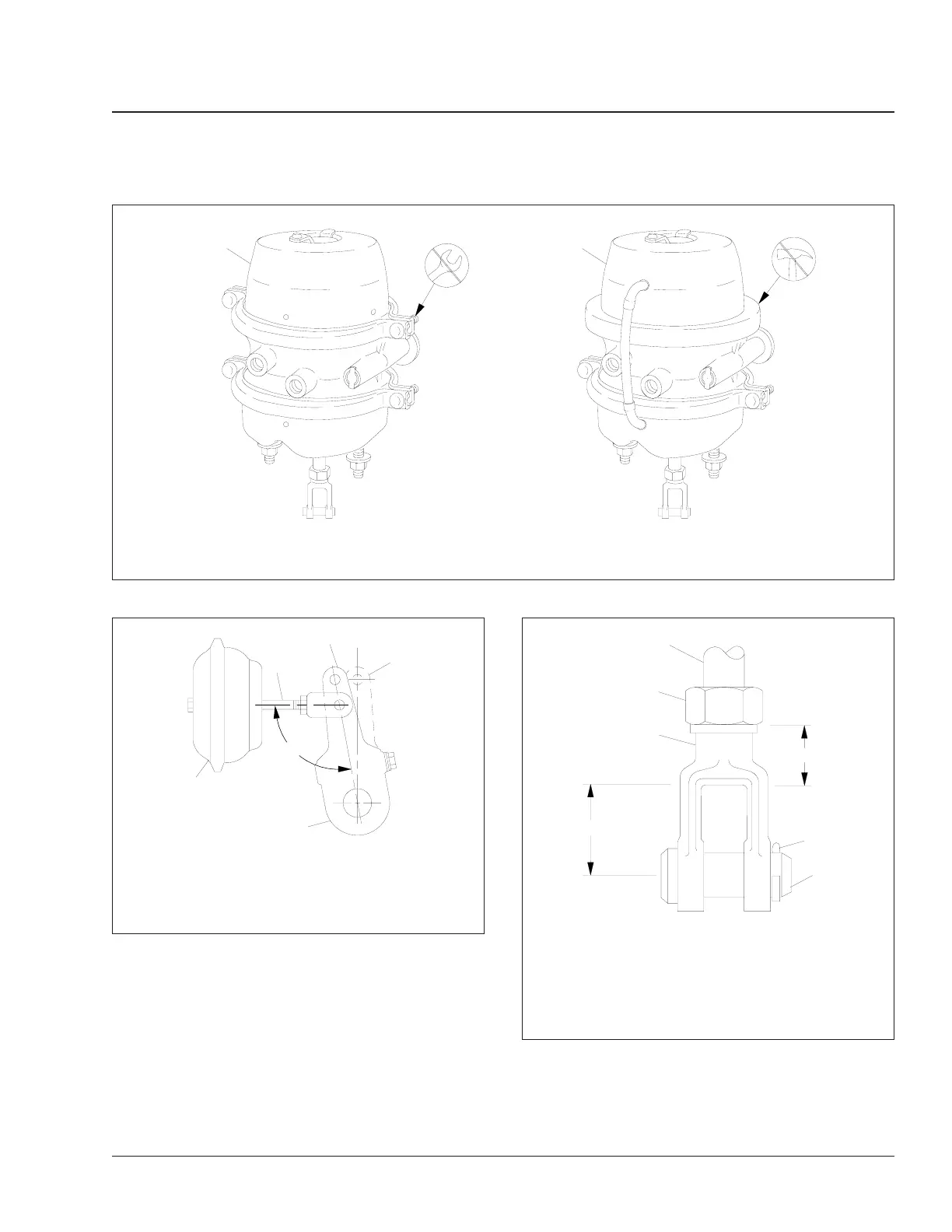

Fig. 1, Service/Parking Brake Chambers
f420009a
07/27/94
1
3
2
C
B
A
A. Brakes Released
B. Brakes Applied
C. Greater than 90
degree angle
1. Brake Chamber
2. Piston Rod
3. Slack Adjuster
Fig. 2, Angle Between Piston Rod and Slack Adjuster
f420225a
1
2
3
B
A
08/20/93
4
5
A. Minimum of 1 inch (25 mm) clearance between
centerline of clevis pin hole and piston rod end.
B. Minimum of 7 threads engagement.
1. Piston Rod
2. Piston Rod Nut
3. Clevis
4. Cotter Pin
5. Clevis Pin
Fig. 3, Piston Rod Engagement With the Clevis
