1. Reservoir Bracket Mounting Bolt, 5/16–24
2. Steel-Plated Washer, 5/16
3. Locknut, 5/16–24
4. Clutch Support Plate
5. Master Cylinder Capscrew, M6
6. Hardened Flatwasher, M6
7. Locknut, 1/2–13
8. Hardened Flatwasher, 0.53
9. Frontwall Bracket Mounting Bolt, 1/2–13
10. Frontwall Standoff Bracket
11. Cushioned Clamp
12. Locknut, 1/4–20
13. Steel-Plated Washer, 1/4
14. Clamp Mounting Bolt, 1/4–20
15. Hydraulic Hose
16. Master Cylinder
17. Reservoir Bracket

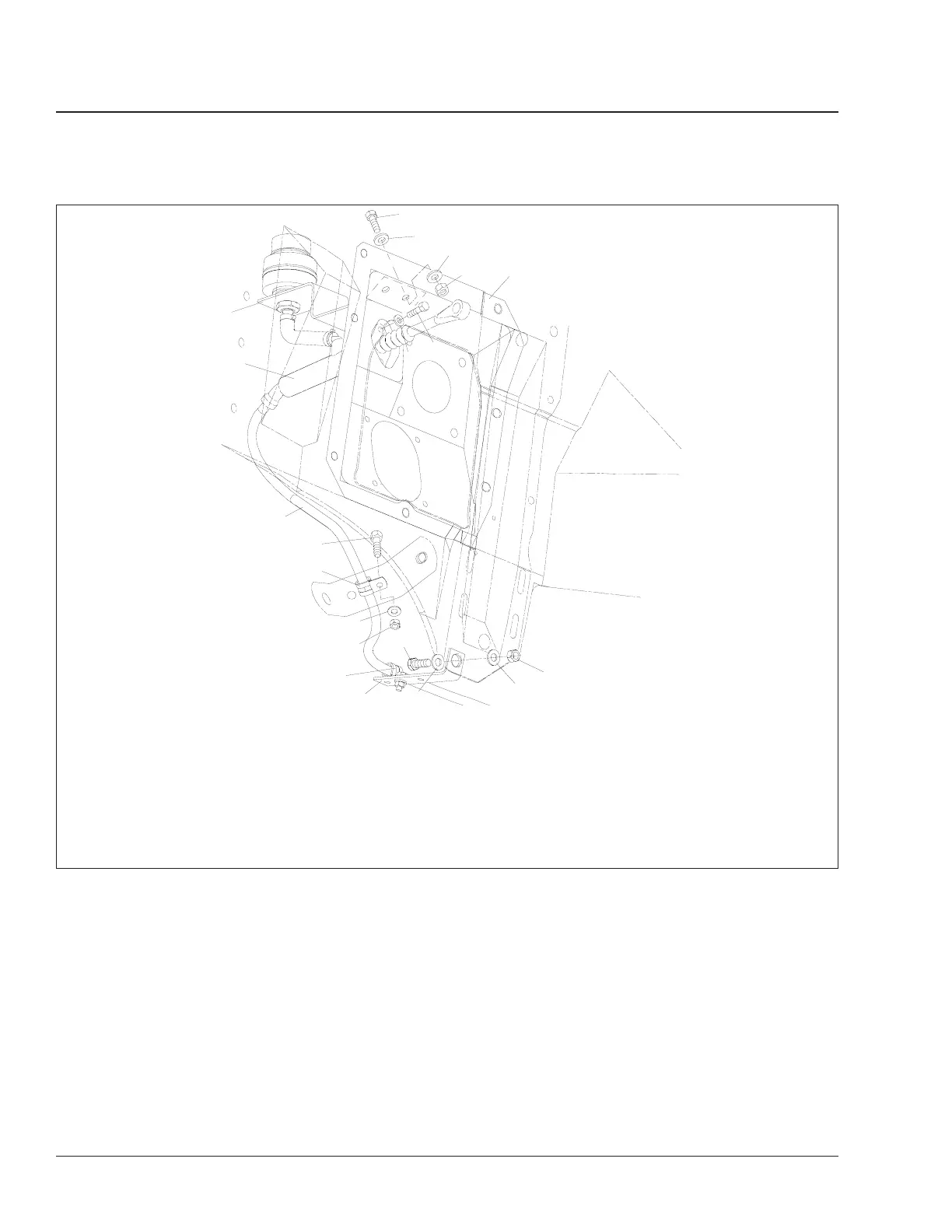

Fig. 4, Clutch Master Cylinder
