CAUTION
Do not overfill the transmission. Overfilling
causes leakage from the pump vent (this can be
mistaken for a pump seal leak), bubbles in the
fluid, and foaming. This can reduce fluid life sig-
nificantly and cause shifting problems.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
f260301
12/12/94
1. Torque Converter
2. Input Shaft
3. Oil Pump
4. Front Band
5. Front Clutch
6. Rear Clutch
7. Planetaries
8. Rear Band
9. Overrunning Clutch
10. Overdrive Clutch
11. Direct Clutch
12. Planetary Gear
13. Governor
14. Output Shaft
15. Seal
16. Intermediate Shaft
17. Overdrive Overrunning Clutch
18. Direct Clutch Spring
19. Overdrive Piston Retainer
20. Filter
21. Valve Body

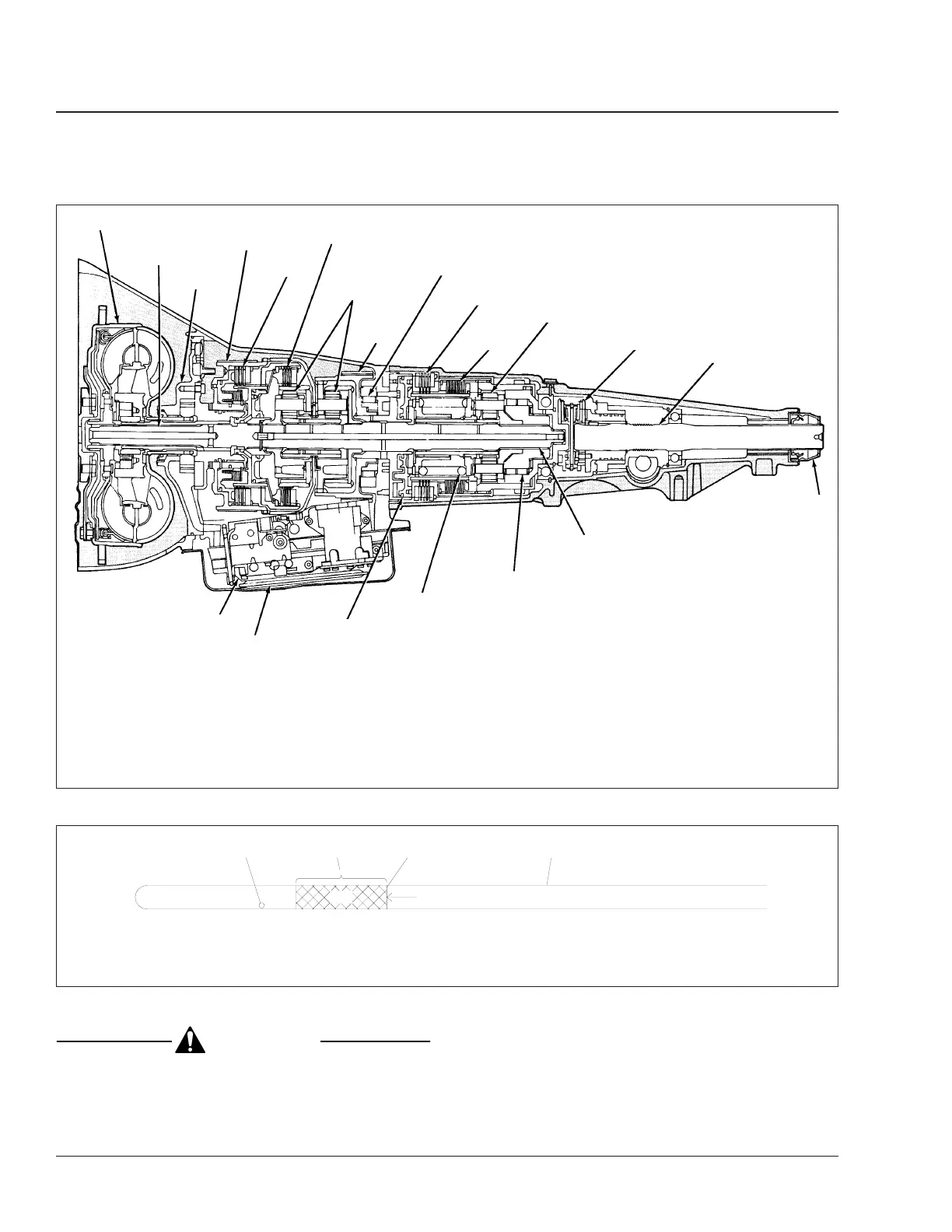

Fig. 12, Chrysler 46RH Transmission and Overdrive Unit
MAXMIN OK
123 4
f26030212/12/94
1. MIN Dot (Minimum Level—Add Fluid)
2. OK Band (Acceptable Fluid Level)
3. MAX Mark (Maximum Correct Fluid Level)
4. Dipstick
Fig. 13, Dipstick Fluid Level Markings, Chrysler Transmission
