2. Remove the transmission oil pan and drain the
fluid. Remove the fluid filter.
3. Loosen the locknut and back it off five to six
turns. Make sure the adjusting screw turns freely
on the band adjusting lever.
4. Set the adjusting screw. To turn the adjusting
screw, use a 5/16-inch 8-point socket ona0to
100 lbf·in (1100 N·cm) torque wrench.
4.1 Tighten the adjusting screw 72 lbf·in (800
N·cm).
4.2 Back off the adjusting screw two turns.
5. Holding the adjusting screw in position, tighten
the locknut 25 lbf·ft (34 N·m).
6. Install the filter and oil pan. Replace the oil pan
gasket. Tighten the oil pan bolts 13 lbf·ft (17
N·m).
7. Lower the vehicle.
8. Check and adjust the fluid level using the proce-
dures under "Checking the Fluid Level."
26-08 Aisin Transmission Fluid
and Filter Changing and
Magnetic Plug Cleaning
1. Park the vehicle on a level surface and apply the
parking brakes. Chock the rear tires.
12/13/94
f260304
2
1
3
4
1. Locknut
2. Rear Band Adjusting Screw
3. Band Adjusting Lever
4. Valve Body

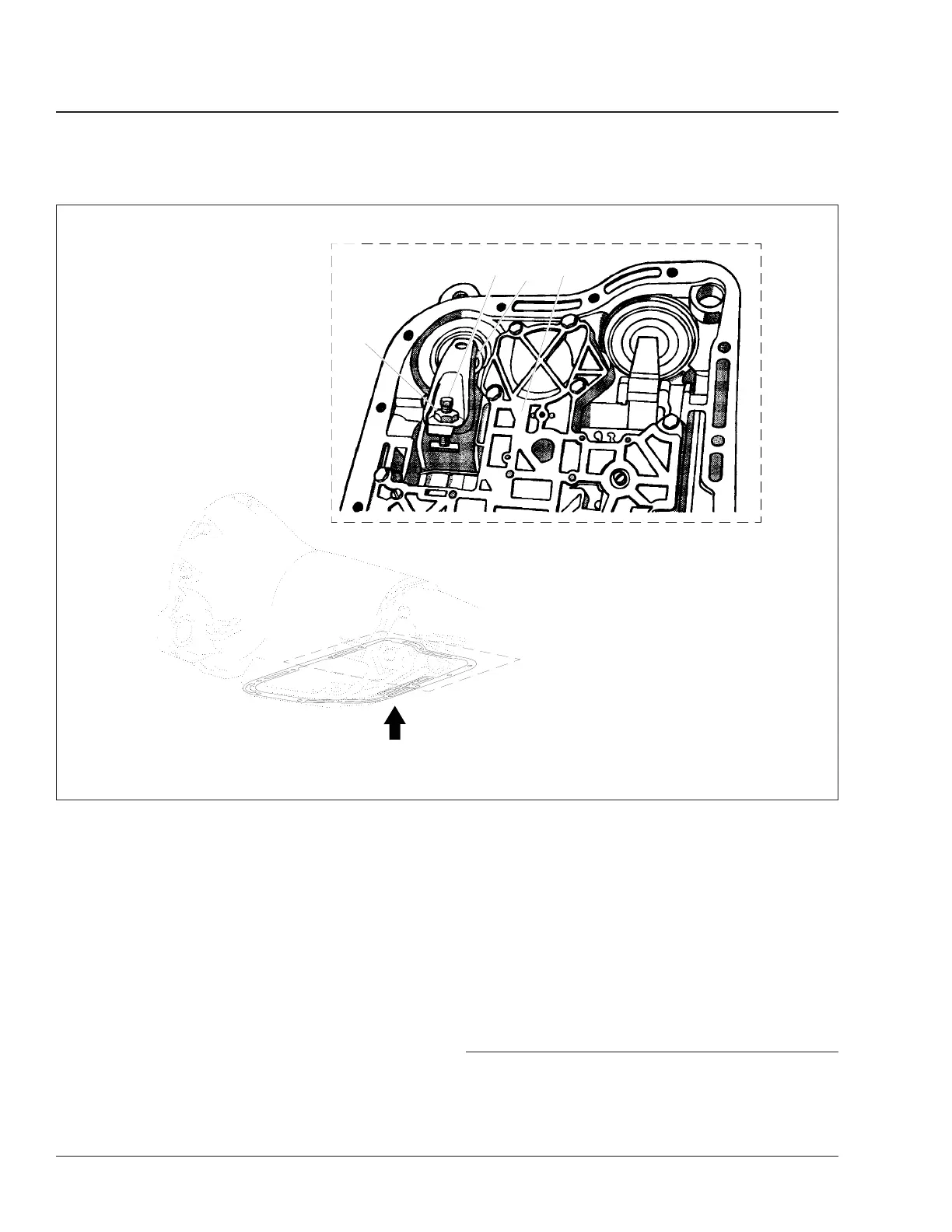

Fig. 15, Rear Band Adjusting Screw, Chrysler
Transmission26
