reset the jam nut. Lock and unlock the mecha-
12/02/2010 f311134
1
2
2
3
4
5
5
6
7
8
8
9
10
11
12
12
12
13
14
15
16
8
7
6
5
5
8
17
12
12
18
15
19
20
21
22
23
12
12
24
15
25
26
27

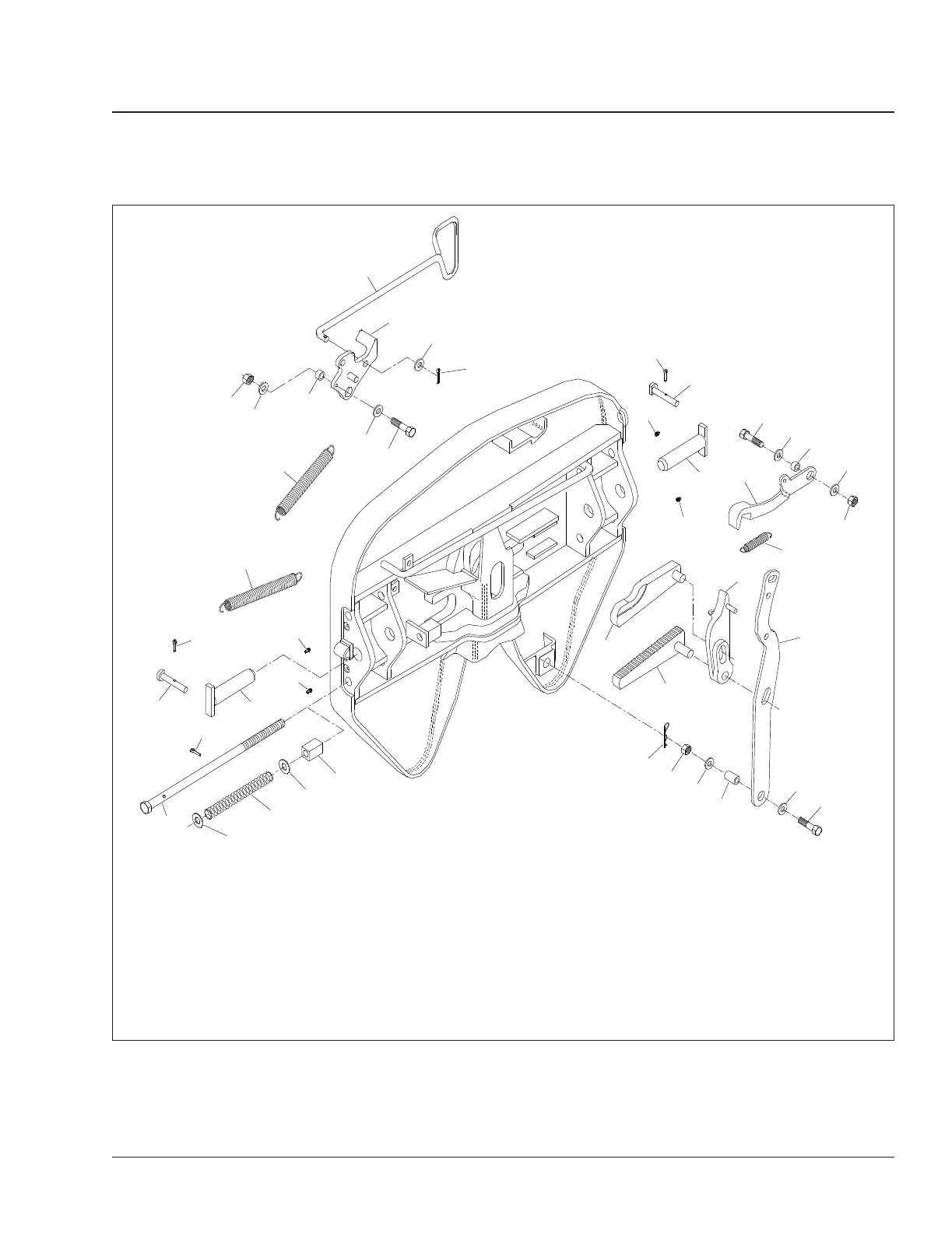

NOTE: 6000 Series shown; 7000 Series fifth wheels use similar parts.
1. Wedge Stop Rod Nut
2. Flat Washer, 5/8"
3. Wedge Stop Rod Spring
4. Wedge Stop Rod
5. Grease Fitting
6. Bracket Pin
7. Bracket Retainer Pin
8. Cotter Pin, 3/16" x 1"
9. Bumper Spring
10. Handle Spring
11. Bolt, Secondary Safety Lock
12. Flat Washer
13. Secondary Safety Lock
14. Bushing, Secondary Safety
Lock
15. Hex Locknut
16. Pull Handle
17. Bolt, Bumper
18. Bushing
19. Bumper
20. Timer Spring
21. Timer
22. Operating Handle
23. Bolt, Operating Handle
24. Bushing, Operating Handle
25. Hair Pin Cotter
26. Wedge
27. Step Jaw
Fig. 2, Fontaine Fifth Wheel
Frame and Frame Components 31
New Cascadia Maintenance Manual, September 2018 31/3
