The fusion fitting is to be removed
from the packaging only directly
before the planned processing. The
packaging protects the fittings
against external influences during
transport and storage.
5.1.3 Assembly
- Place the saddle onto the prepared
surface of the pipe.

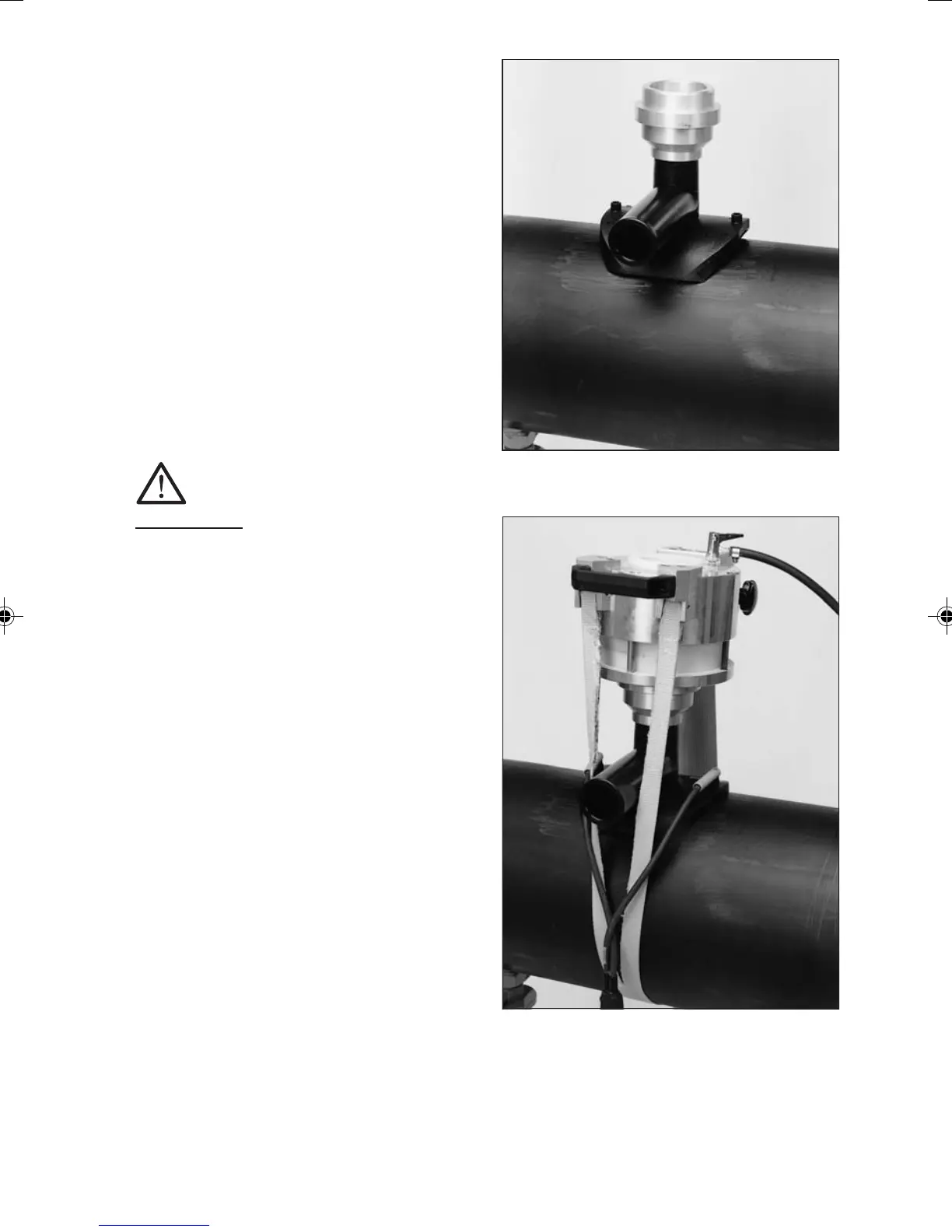

- Fit the adapter of the FRIATOP
clamping device (Figure 15a).
- Fit the clamping device as directed
in the Operating Instructions (Figure
15b).
WARNING!
For pressure tapping tees and
pressure tapping valves, the
factory drill setting may not be
changed before starting the fusion
process.
5.1.4 Carrying out of fusion
When fusing Pressure Tapping
Tees to media-carrying pipings, the
following operating pressures may
not be exceeded until the pipe has
cooled down completely:
Figure 15a
Figure 15b
