QUANTUM
™
LX EVAPORATOR CONTROL PANEL
MAINTENANCE
090.610-M (MAY 2016)
Page 10
THE EVAPORATOR REMOTE PANEL ENCLOSURE
DESCRIPTION
Both versions of the Evaporator control panel, Q4 and
Q5, utilize the same Remote panel. With the Quantum™
LX Evaporator system version 3.0x and later, a single
Quantum ™ Control Panel can control up to ten remote
panels with each remote capable of handling three
Evaporator units, for a total possible of thirty units. It is
also capable of Ethernet access, which can be viewed
remotely through any web browser, or the optional
Frick
®
Evaporator Operator Interface Panel.

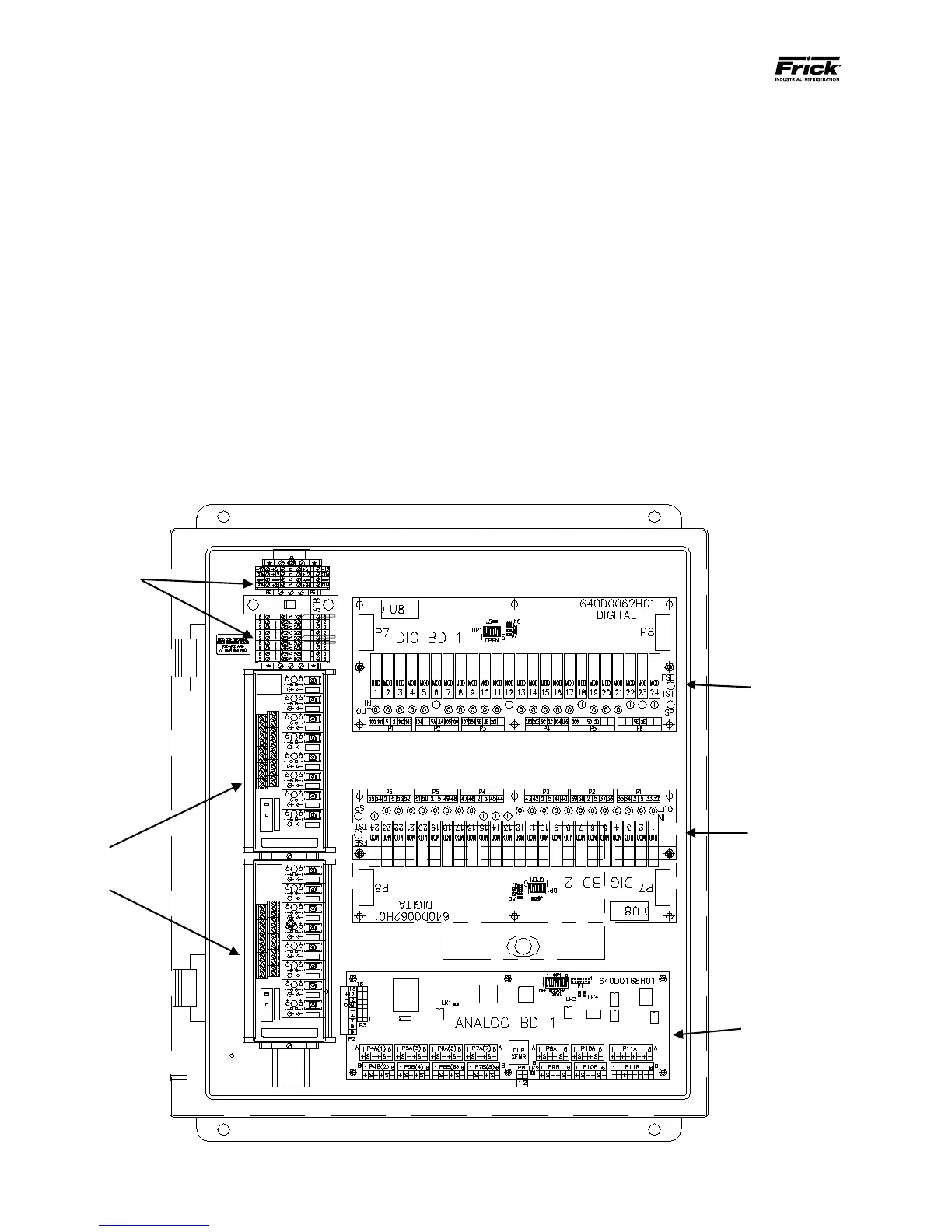

The Frick® Quantum™ LX Remote panel enclosure
utilizes available space efciently. The panel is also
equipped with the necessary posts and hardware to
add options in the eld. Each Remote panel is con-
gured with one Digital and one Analog board, and a
second Analog board may be present depending upon
installed options.
There are additionally two HOA (Hands Off Automatic)
boards installed, which allow for overriding the auto-
matic function of the control by allowing the user to
manually operate outputs.
The DC power/communications harness in this panel
is color-coded. This will make wire identication much
easier. The coding is as follows:
• +5VDC - RED
• +12VDC - YELLOW
• -12VDC - PURPLE
• Common/Ground - BLACK
• +RX/TX - BLUE
• -RX/TX - BLUE w/WHITE stripe
