QUANTUM
™
LX EVAPORATOR CONTROL PANEL
MAINTENANCE
090.610-M (MAY 2016)
Page 17

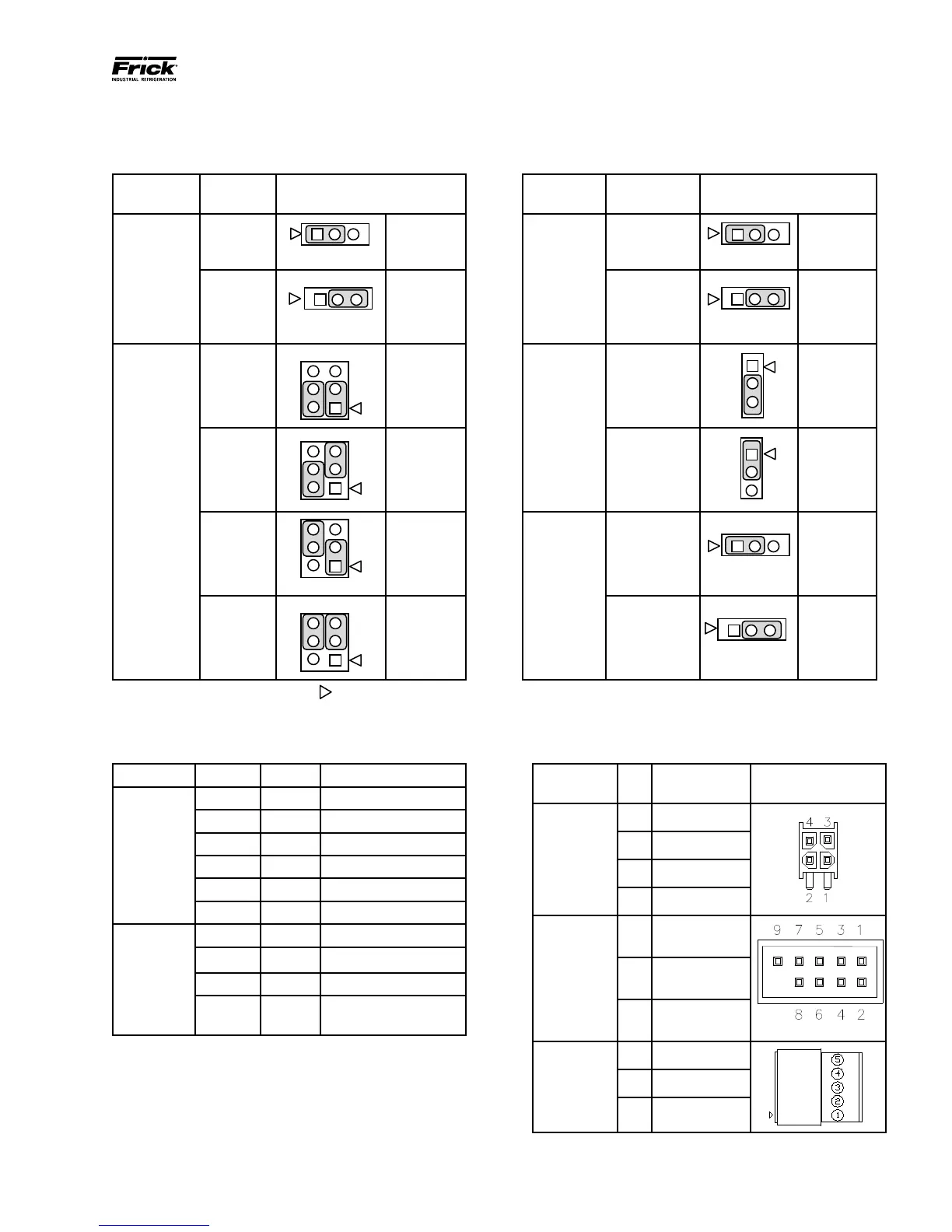

Q5 BOARD JUMPERS, LED’S AND CONNECTORS
JUMPER TABLE
Jumper
Title
Function Jumper Setting
Jumper
Title
Function Jumper Setting
CMOS1
(CMOS
Clear)
Normal
(default)
1 2 3
1 - 2
Closed
CN3
(Touch
Panel Type
Selector)
5-Wire
Touch
Screen
1 2 3
1-2 Closed
Clear
CMOS
1 2 3
2 - 3
Closed
8-Wire
Touch
Screen
(default)
1 2 3
2-3 Closed
CN1000
(LCD
Resolution
Selector)
24-bit
800x600
6
4
2
5
3
1
1-3 Closed
&
2-4 Closed JLVDS2
(Backlight
Level Se-
lector)
0 – 5V
(default)
1
2
3
2-3 Closed
24-bit
1024x768
6
4
2
5
3
1
3-5 Closed
&
2-4 Closed
0 – 2.5V
1
2
3
1-2 Closed
18-bit
800x600
6
4
2
5
3
1
1-3 Closed
&
4-6 Closed JLVDS3
(Backlight
Control
Mode)
Voltage
Mode - use
with inverter
(default)
1 2 3
1-2 Closed
18-bit
640x480
(default)
6
4
2
5
3
1
3-5 Closed
&
4-6 Closed
PWM Mode
(Use for LED
display - no
inverter)
1 2 3
2-3 Closed
NOTE 1: The triangle symbol (
) denotes Pin 1 on connectors.
NOTE 2: Jumper CN4 is not shown on this chart, as it must always be installed.
LED DEFINITION TABLE
LED Title Label Color Function
Power
LED’s
LED1 Red 5VSB
LED2 Red 3VSB
LED3 Green VCC 12V
LED4 Green VCC 5V
LED5 Green VCC 3V
LED6 Blue Power On OK Status
CN1000
(LCD
Resolution
Selector)
1000MB Green Giga – LAN Speed
100MB Yellow 100MB - LAN Speed
10MB Red 10MB –LAN Speed
ACT
Green
(Blinks)
LINK Activity
CONNECTOR PINOUT TABLE
Connector
Title
Pin Function
CN_PWR1
(Power
Input)
1 Ground (GND)
2 Ground (GND)
3 VCC 12V
4 VCC 5V
COM1 &
COM2
(RS-232
Communi-
cations)
2 Receive (RX)
3 Transmit (TX)
5 Ground (GND)
COM3 &
COM4
(RS-485
Communi-
cations)
1 -RX/TX
2 +RX/TX
3 Ground (GND)
