DIGITAL BOARD SETTINGS
COMMUNICATIONS SETTINGS
The following table is to be used when conguring the Quantum™ for external communications.
J5
in 120 ohm long communications line termination.
out* No termination.
J7
in RS-422/485 transmit pull-up for long communications lines.
out* No pull-up.
J8
in RS-422 transmit pull-up for long communications lines.
out* No pull-up.
J9
in RS-422/485 receive pull-down for long communications lines.
out* No pull-down.
J10
in RS-422 receive pull-down for long communications lines.
out* No pull-down.
* = standard setting
DIPSWITCH SETTINGS

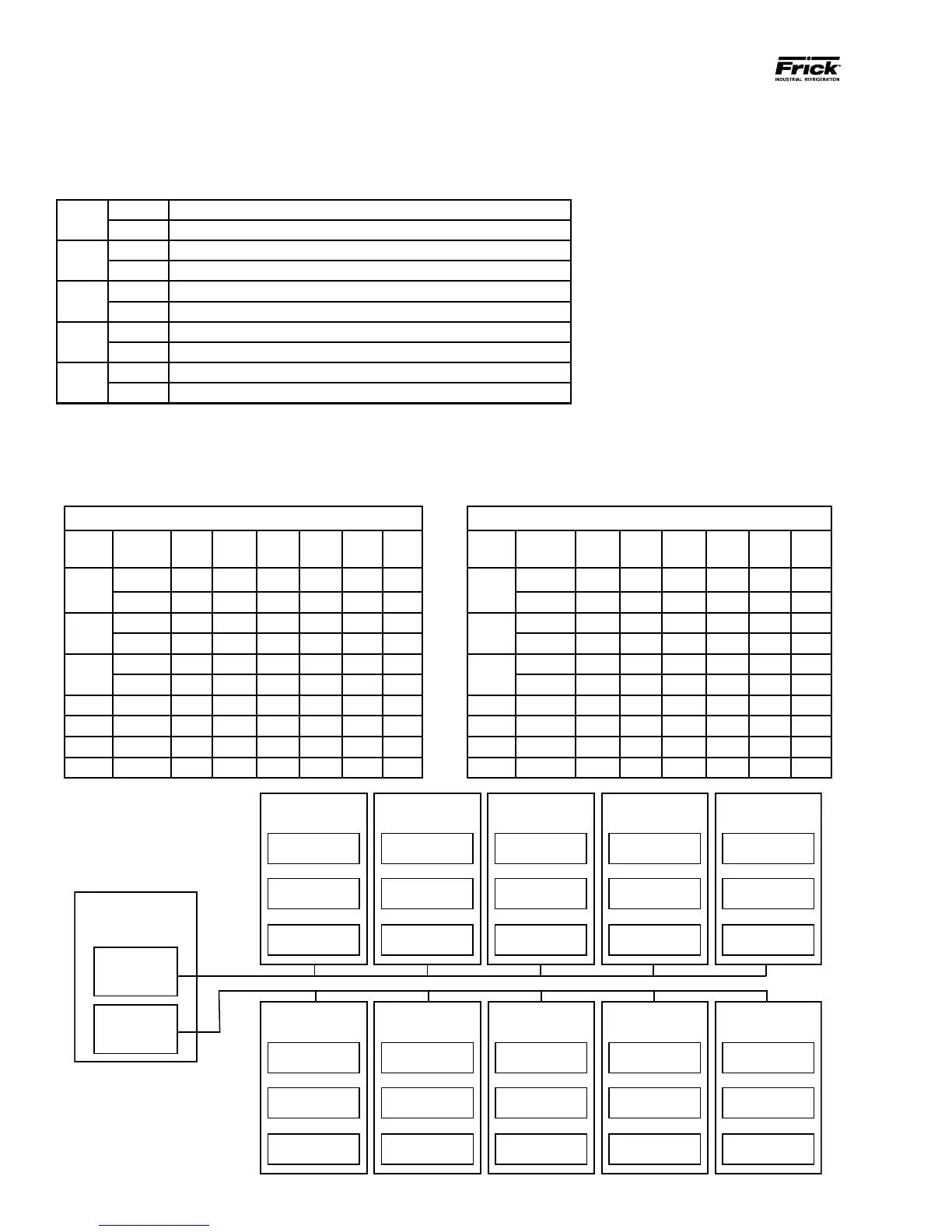

The following table is to be used to set the digital board addresses. Refer to and study the diagram at the bottom of this page
to determine the correct board conguration.
Comm. 4 of Quantum™ (Zones 1-15) Comm. 3 of Quantum™ (Zones 16-30)
I/O
Group
Digital
Board #
SW1 SW2 SW3 SW4 SW5 SW6
I/O
Group
Digital
Board #
SW1 SW2 SW3 SW4 SW5 SW6
1
1 On On On On Off On
1
1 On On On On Off On
6 Off On Off On Off On 6 Off On Off On Off On
2
2 Off On On On Off On
2
2 Off On On On Off On
7 On Off Off On Off On 7 On Off Off On Off On
3
3 On Off On On Off On
3
3 On Off On On Off On
8 Off Off Off On Off On 8 Off Off Off On Off On
4 4 Off Off On On Off On 4 4 Off Off On On Off On
9 On On On Off Off On 9 On On On Off Off On
5 5 On On Off On Off On 5 5 On On Off On Off On
10 Off On On Off Off On 10 Off On On Off Off On
Quantum™ LX
Control Board
Comm. 4
(Zones
1-15)
Comm. 3
(Zones
16-30)
I/O Group 1
Zones 16, 17, 18
Digital Board
1
Digital Board
6
Analog Board
1
I/O Group 2
Zones 19, 20, 21
Digital Board
2
Digital Board
7
Analog Board
2
I/O Group 3
Zones 22, 23, 24
Digital Board
3
Digital Board
8
Analog Board
3
I/O Group 4
Zones 25, 26, 27
Digital Board
4
Digital Board
9
Analog Board
4
I/O Group 5
Zones 28, 29, 30
Digital Board
5
Digital Board
10
Analog Board
5
I/O Group 1
Zones 1, 2, 3
Digital Board
1
Digital Board
6
Analog Board
1
I/O Group 2
Zones 4, 5, 6
Digital Board
2
Digital Board
7
Analog Board
2
I/O Group 3
Zones 7, 8, 9
Digital Board
3
Digital Board
8
Analog Board
3
I/O Group 4
Zones 10, 11, 12
Digital Board
4
Digital Board
9
Analog Board
4
I/O Group 5
Zones 13, 14, 15
Digital Board
5
Digital Board
10
Analog Board
5
