QUANTUM
™
LX EVAPORATOR CONTROL PANEL
MAINTENANCE
090.610-M (MAY 2016)
Page 43

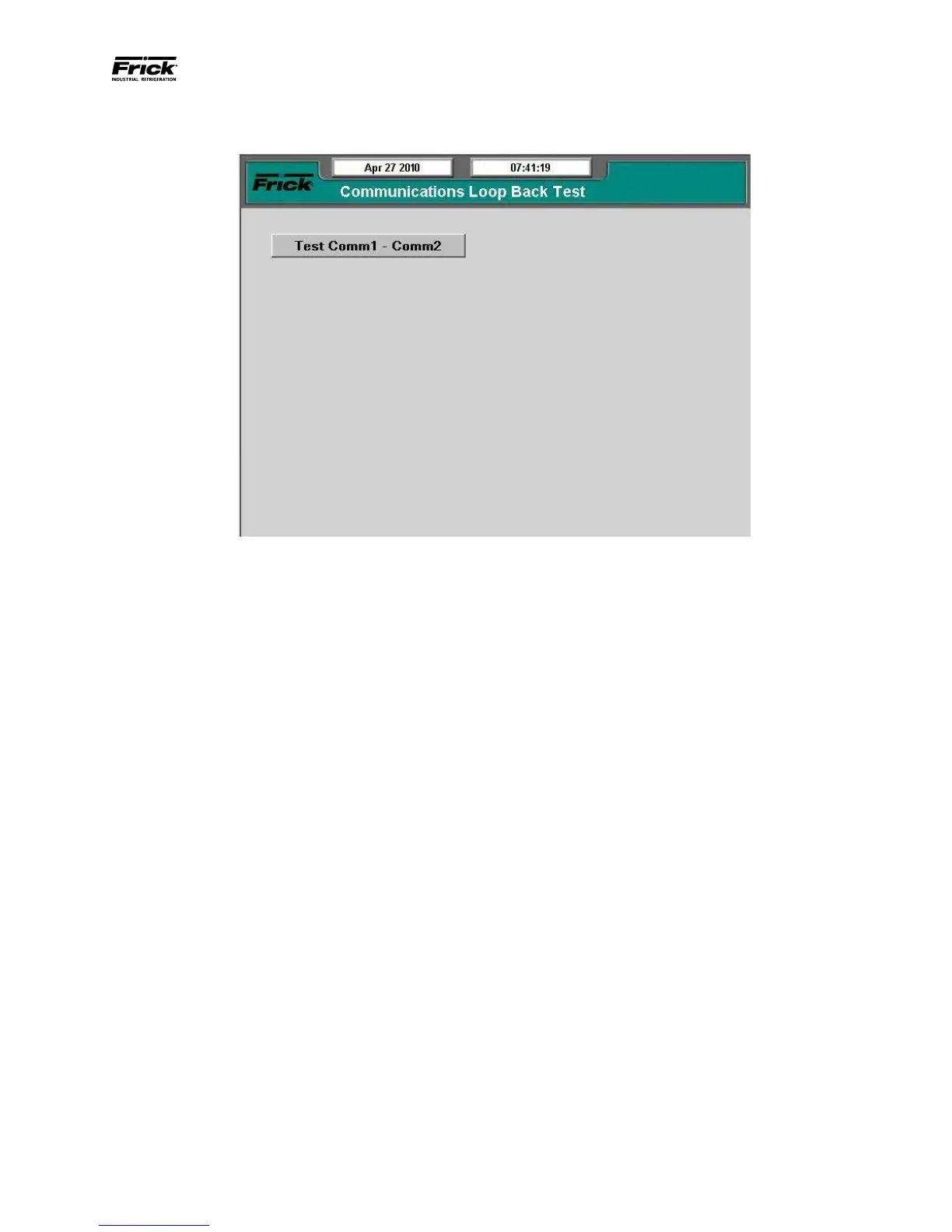

SERVICE – Communications Loop-Back Test
DESCRIPTION: This screen allows the user to test the integrity of each of the communications channels, by using a Loop-Back
cable. Refer to the Evaporator Communications Manual (090.610- CS) for specic information about this test.
