070.250-IOM1 (NOV 2013)
Page 8
TDS_ Rotary Screw Compressor
Installation

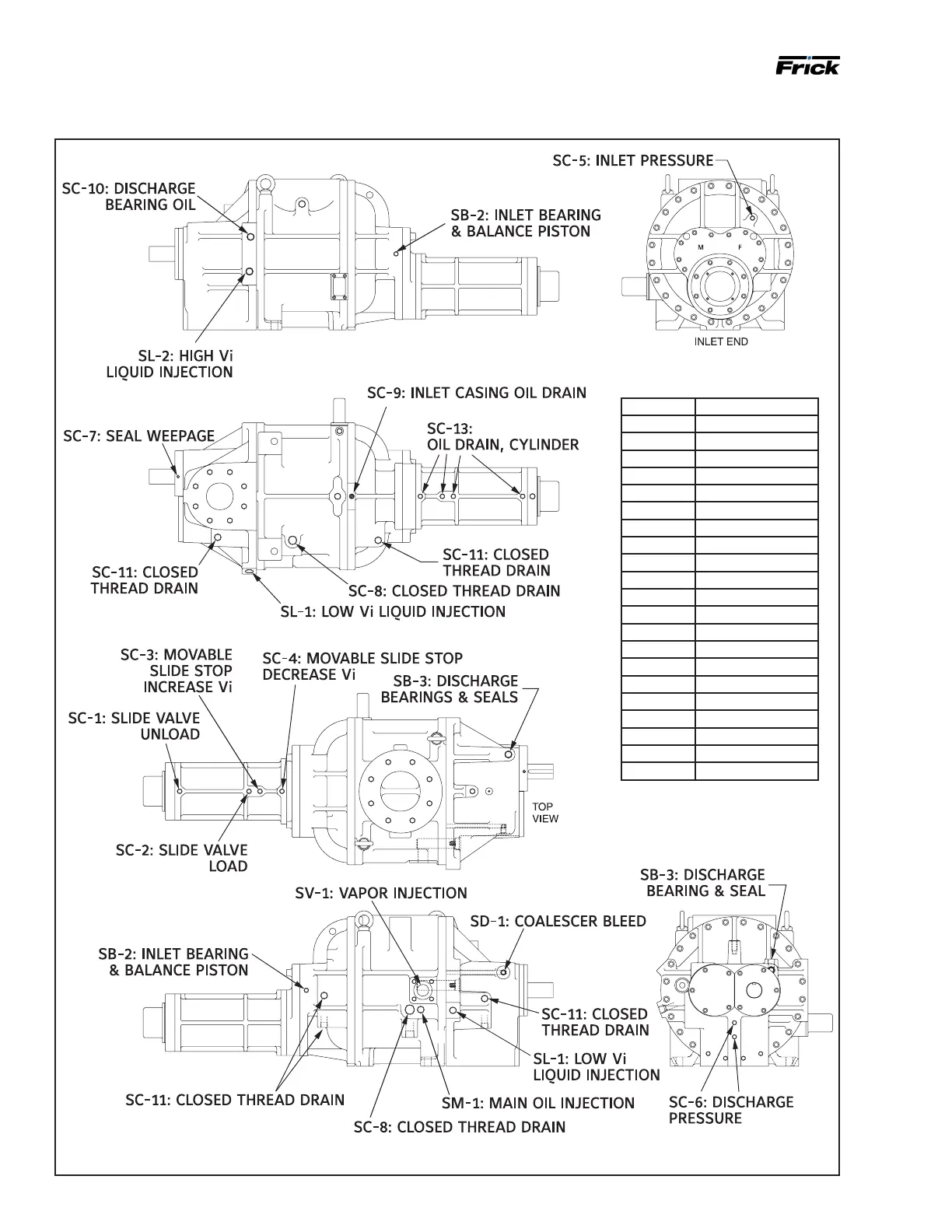

Figure 3: Compressor port locations, 163/193
Symbol Size
SC-1 3/8-18 NPTF
SC-2 3/8-18 NPTF
SC-3 3/8-18 NPTF
SC-4 3/8-18 NPTF
SC-5 3/8-18 NPTF
SC-6 3/8-18 NPTF
SC-7 1/8-27 NPTF
SC-8 1-11½ NPTF
SC-9 3/8-18 NPTF
SC-10 3/4-14 NPTF
SC-11 3/4-14 NPTF
SC-13 3/8-18 NPTF
SB-2 3/8-18 NPTF
SB-3 3/4-14 NPTF
SM-1 3/8-18 NPTF
SV-1 1¼SQange
SL-1 3/4-14 NPTF
SL-2 3/4-14 NPTF
SE-1 1/2-14 NPTF
SE-2 1/2-14 NPTF
SD-1 3/4-16 UNF-2B
