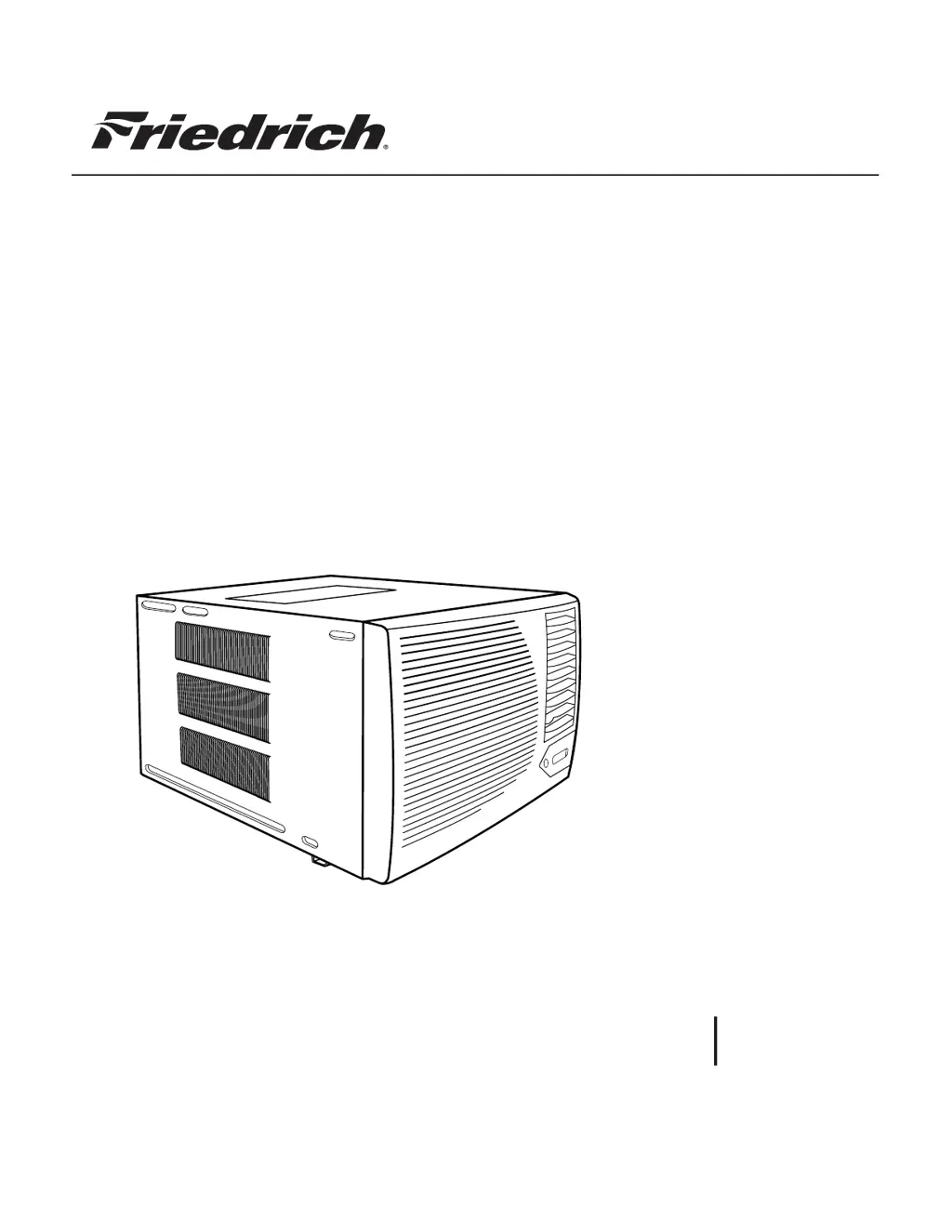

Service Manual
Compact Programmable
CP-14-18-24-ServMan (04-09)
Models
2009
2008

Table of Contents

Questions and Answers

  • G
    glennbrianAug 16, 2025
    Why is my Friedrich 2008 Air Conditioner not cooling enough?
    • D
      Daniel WilliamsAug 16, 2025
      If your Friedrich Air Conditioner is not cooling or only cools slightly, consider these potential causes: the unit might be undersized, so refer to an industry standard sizing chart. Ensure the thermostat is set to the coldest position and test/replace it if necessary. Clean the filter as recommended in the Owner’s Manual. Also, clean any dirt or restrictions from the condenser or evaporator coil using a pressure wash or biodegradable cleaning agent. Adjust the discharge louvers and use a high fan speed to improve air circulation. On applicable models, ensure the fresh air or exhaust air doors are closed. Check for leaks if the unit has low capacity, and if the compressor isn't pumping properly, check its amperage draw against the nameplate and perform a pressure test.
  • S
    Sarah RoyAug 26, 2025
    How to fix a Friedrich Air Conditioner fan motor that is not running?
    • R
      Rick WestAug 26, 2025
      If the fan motor in your Friedrich Air Conditioner does not run, check the following: Test the system switch and replace it if inoperative. Refer to the applicable wiring diagram for broken, loose, or incorrect wiring. Test the capacitor and replace it if inoperative. Test the fan speed switch and replace it if inoperative. Test the fan motor and replace it if inoperative, making sure the internal overload has had time to reset.
  • M
    Michael WrightAug 28, 2025
    Why does my Friedrich 2008 Air Conditioner compressor run constantly and not cycle off?
    • R
      Renee NicholsAug 28, 2025
      If your Friedrich Air Conditioner compressor runs continually and does not cycle off, consider the following causes: The unit may be undersized, so test cooling performance and replace with a larger unit if needed. Check for restrictions in the line and partially iced coils, and check the temperature split across the coil. Look for refrigerant leaks by checking for oil at silver soldered connections, partially iced coils, and low running amperage. Check the operation of the thermostat, and replace it if the contacts are stuck. Refer to the appropriate wiring diagram if the thermostat is incorrectly wired. Replace the thermistor or electronic control board if the thermistor is shorted.
  • D
    Diana AriasAug 31, 2025
    What to do if my Friedrich Air Conditioner unit does not run?
    • M
      Megan GoldenAug 31, 2025
      If your Friedrich Air Conditioner does not run, start by checking the fuse or circuit breaker. Replace the fuse or reset the breaker. If the issue persists, verify the fuse or breaker size and inspect the unit's wiring and components for shorts. Also, ensure the power cord is properly plugged in and the system switch is not in the “OFF” position. Test the system switch for continuity. Check for loose or disconnected wiring at the switch, control board, or other components, and reconnect them according to the wiring diagram.
  • A
    Andre PierceSep 3, 2025
    What to do if the evaporator coil freezes up in my Friedrich Air Conditioner?
    • P
      pkimSep 3, 2025
      If the evaporator coil in your Friedrich Air Conditioner freezes up, try the following: 1. Clean the filter as recommended in the Owner’s Manual. 2. Check for restricted airflow, ensuring the coil is clean and unobstructed; use a pressure wash or biodegradable cleaning agent to clean it. 3. Test the thermostat or thermistors for continuity. 4. De-ice the coil and check for refrigerant leaks. 5. Test the fan motor and replace it if inoperative. 6. De-ice the coil and check the temperature differential (delta T) across the coil; touch test coil return bends for consistent temperature and test for low running current if a partially restricted capillary tube is suspected.
  • S
    Sara RileySep 6, 2025
    What causes a Friedrich 2008's thermostat to not turn the unit off?
    • K
      Kelly JohnsonSep 7, 2025
      If the thermostat on your Friedrich Air Conditioner does not turn the unit off, it could be due to several reasons. First, disconnect power to the unit, remove the thermostat cover, and check if the contacts are stuck; if so, replace the thermostat. Next, ensure the thermostat is not set at the coldest point; turn it to a higher temperature setting to see if the unit cycles off. Also, refer to the appropriate wiring diagrams to ensure correct wiring. If the unit is undersized for the area to be cooled, refer to an industry standard sizing chart. Finally, a defective thermistor could be the cause, so consider replacing the thermistor or electronic control board.
  • M
    Mrs. Christina Bell DDSSep 10, 2025
    Why won't my Friedrich 2008 turn on using the thermostat?
    • A
      Amanda SandersSep 12, 2025
      If the thermostat on your Friedrich Air Conditioner does not turn the unit on, it may be due to a loss of charge in the thermostat bulb. Place a jumper across the thermostat terminals to check if the unit operates. If it does, replace the thermostat. Check for loose or broken parts in the thermostat. Refer to the appropriate wiring diagram to ensure correct wiring. If the issue persists, the thermistor may be defective; replace the thermistor or electronic control board.
  • D
    Denise RomeroSep 12, 2025
    Why is my Friedrich 2008 Air Conditioner making so much noise?
    • M
      Mia JonesSep 12, 2025
      If your Friedrich Air Conditioner is operating noisily, it could be due to several factors. First, refer to the Installation Manual to ensure proper installation. Check if the fan blade is striking the chassis and reposition it by adjusting the motor mount. Inspect the compressor to ensure the grommets have not deteriorated and that all mounting parts are present. Also, check the assembly and parts for any looseness, rubbing, or rattling, and ensure that cabinet parts are properly mounted.
  • T
    Todd RiveraNov 21, 2025
    How to troubleshoot a Friedrich 2008 compressor that won't run?
    • K
      Kelly JonesNov 21, 2025
      If your Friedrich Air Conditioner's compressor does not run, check the following: * Ensure the voltage at the compressor is within the acceptable range (10% variance for 115V & 230V units). * Confirm the thermostat is set to the coldest position and test/replace if inoperative. * If the compressor hums but cuts off on overload, hard start the compressor and direct test it; add starting components if it starts. * Check for open or shorted compressor windings by testing for continuity & resistance. * Test and replace the overload protector if inoperative. * Test and replace the capacitor if inoperative. * Test the system switch for continuity in all positions and replace if inoperative. * Refer to the appropriate wiring diagrams to check for broken, loose, or incorrect wiri...

Summary

IMPORTANT SAFETY INFORMATION

Personal Injury & Death Hazards

Details hazards related to personal injury or death, including electrical dangers.

Refrigeration & Mechanical Hazards

Covers safety precautions for refrigeration systems and mechanical components.

Property Damage Hazards

Outlines potential risks of fire and water damage due to improper handling.

UNIT IDENTIFICATION

Model Number Code Explained

Explains the structure and meaning of the unit's model number code.

Serial Number Identification Guide

Provides a guide for identifying units based on their serial number.

ELECTRICAL DATA & GROUNDING

Plug, Outlet & Circuit Ratings

Details required plug types, outlets, and circuit breaker ratings for safe operation.

SPECIFICATIONS

2009 Models Specifications

Technical specifications and performance data for 2009 models.

2008 Models Specifications

Technical specifications and performance data for 2008 models.

COMPONENT DEFINITIONS

Mechanical, Electrical & Hermetic Components

Defines key mechanical, electrical, and hermetic components of the unit.

AIR CONDITIONER OPERATION

Operating the Friedrich Room Air Conditioner

Instructions for basic operation, including mode, fan speed, and temperature settings.

Remote Control Operation Guide

Details on using the remote control for various unit functions.

REFRIGERATION SYSTEM

Sequence of Operation

Explains the step-by-step process of the refrigeration cycle.

Sealed System Repairs & Charging

Procedures for repairing sealed refrigeration systems and proper refrigerant charging.

REFRIGERANT SYSTEM DIAGNOSIS

Undercharged & Overcharged Systems

Diagnosing issues related to insufficient or excessive refrigerant charge.

Restricted Refrigerant Systems

Troubleshooting procedures for partial or complete restrictions in the refrigerant system.

COMPRESSOR & METERING DEVICE CHECKS

Metering Device & Capillary Tubes

Checking the metering device for restrictions and proper function.

Compressor Checks & Tests

Procedures for testing compressor voltage, amperage, and overload conditions.

Internal Overload & Resistance Tests

Testing internal compressor overloads and resistance for proper motor function.

CAPACITORS

Capacitor Checks & Connections

Methods for checking capacitor health and proper connection procedures.

MAJOR COMPONENT REPLACEMENT

Compressor Replacement Procedure

Step-by-step guide for replacing a defective compressor.

Motor Compressor Burnout Procedure

Special procedures to follow in the case of a motor compressor burnout.

ROUTINE MAINTENANCE

Air Filter & Coil Cleaning

Instructions for cleaning the air filter and maintaining coils and base pan.

Blower, Fan & Electrical Checks

Maintenance for blower wheel, fan blades, and electrical components.

Sleeve, Drain & Front Cover Maintenance

Procedures for maintaining the unit sleeve, drain system, and front cover.

COOLING TROUBLESHOOTING

Unit Not Running or Cooling Issues

Diagnosing problems when the unit fails to start or cool effectively.

Coil Freezing & Cycling Problems

Troubleshooting evaporator coil freezing and compressor cycling issues.

Water Leaks & Noise Issues

Addressing water leaks into the room and operational noise problems.

Thermostat & Moisture Issues

Resolving thermostat malfunctions and excessive moisture concerns.

WIRING DIAGRAMS

2009 Models Wiring Diagram

Electrical wiring diagrams for 2009 model air conditioners.

2008 Models Wiring Diagram

Electrical wiring diagrams for 2008 model air conditioners.

EXPLODED VIEWS & PARTS LISTS

2009 Models Exploded View & Parts

Exploded views and parts lists for 2009 model air conditioners.

2008 Models Exploded View & Parts

Exploded views and parts lists for 2008 model air conditioners.
