16 17
C. INSTALLATION OF THE UNIT
C.4 Window Installation (Continued)

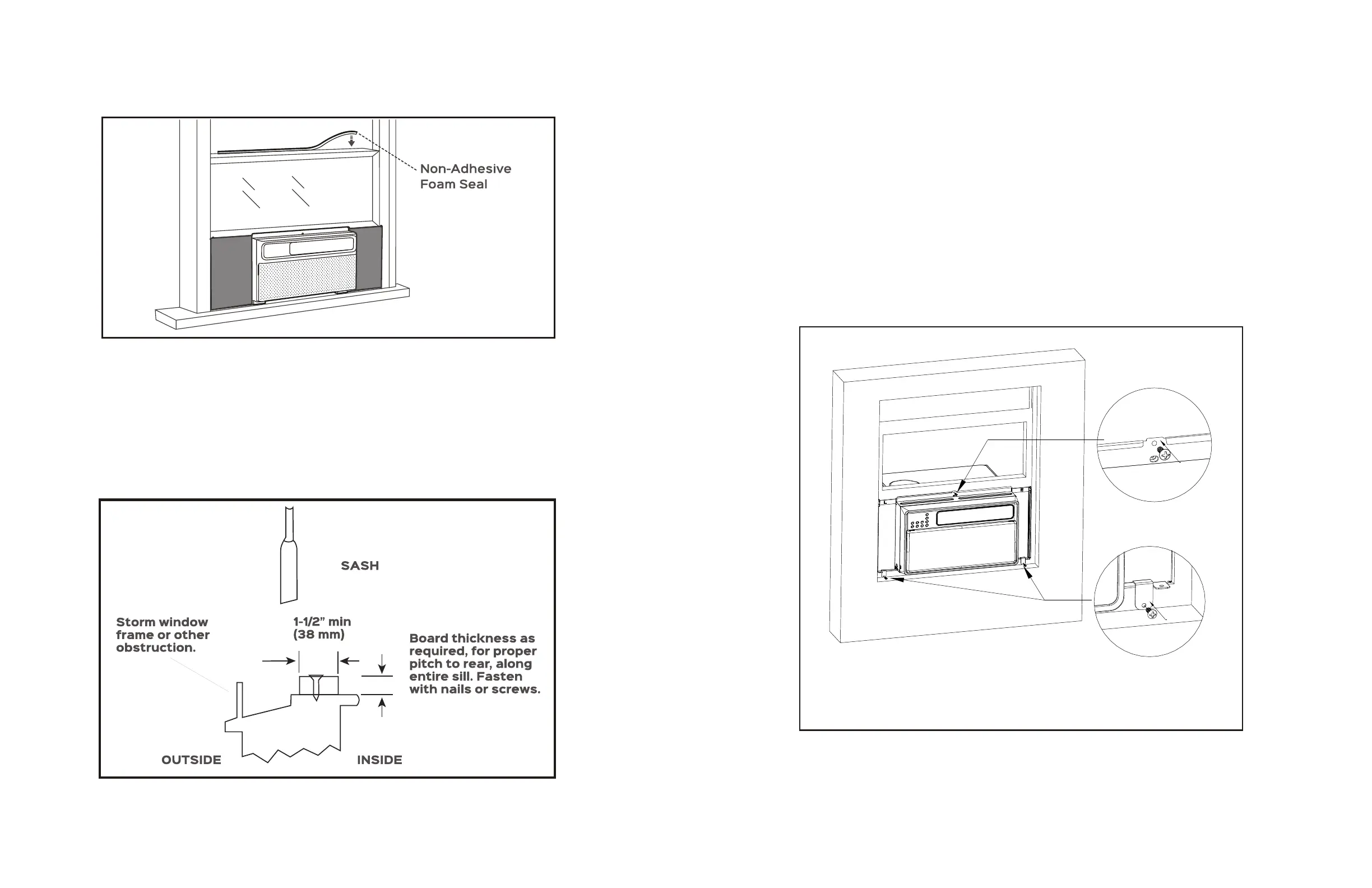

C.4.9 Trim the Seal
Trim the non adhesive foam seal to the appropriate length and insert between the window sashes.
Figure C.4.9
C.4.10 If AC Is Blocked By Storm Window
1. Add wood as shown, or remove storm window before air conditioner is installed.
2. If Storm Window Frame must remain, be sure the drain holes or slots are not caulked or painted shut.
Accumulated Rain Water or Condensate must be allowed to drain out.
Figure C.4.10
16
ASSEMBLING YOUR AIR CONDITIONER
9.Installing the Security Bracket
Attach the security bracket on top of the window sash and secure with two 1/2" screws.
10.Filling the Gap Between Sashes
Trim the non-adhesive foam seal to the appropriate length and insert
between the window sashes.
CAUTION:
When open the window, besure that the fixed screws are avaliable from the curtain to the
window frame.
If AC Is Blocked By Storm Window
1. Add wood as shown, or remove
storm window before air
conditioner is installed.
2. If Storm Window Frame must
remain, be sure the drain holes
or slots are not caulked or
painted shut. Accumulated Rain
Water or Condensate must be
allowed to drain out.
16
ASSEMBLING YOUR AIR CONDITIONER
9.Installing the Security Bracket
Attach the security bracket on top of the window sash and secure with two 1/2" screws.
10.Filling the Gap Between Sashes
Trim the non-adhesive foam seal to the appropriate length and insert
between the window sashes.
CAUTION:
When open the window, besure that the fixed screws are avaliable from the curtain to the
window frame.
If AC Is Blocked By Storm Window
1. Add wood as shown, or remove
storm window before air
conditioner is installed.
2. If Storm Window Frame must
remain, be sure the drain holes
or slots are not caulked or
painted shut. Accumulated Rain
Water or Condensate must be
allowed to drain out.
C. INSTALLATION OF THE UNIT
C.4 Window Installation (Continued)
C.4.11 Alternate Bracket Installation
Some window frames may be too thin or too thick to be properly secured using the regular procedure.
If that is the case, you may need to use the back-up lock brackets to properly secure the unit.
If the AC unit can not be properly secures by the steel frame holes, you must use the back-up lock brackets.
For example, if you have an aluminum alloy window.
1. Install the screw into the top channel of the AC unit, and screw into the window frame.
2. Select two suitable back-up using lock brackets. Attach them at the bottom of steel frame near the
sides with screws.
3. If needed, you can use the other two back-up using lock brackets for exta security near top area.
Screw the top channel
into the window frame
with 3 screw./4"
Screw the back-up lock
frame into the window
frame with 3/4 screws,
both sides at the bottom.
"
ASSEMBLING YOUR AIR CONDITIONER
For some special window frame, as too thin or too thick, you may need to use the back-up lock
frame to do the additional fixed.
If the AC unit can not be screw-fixed well by the steel frame holes, you must use the back-up lock
frame to do the additional fixed, as the aluminum alloy window.
1. Install the screw into the top channel of the AC unit, and screw into the window frame.
2. Select two suitable back-up using lock frames, fix them at the bottom of steel frame near the
sides with screws.
3. If needed, you can use the other two back-up using lock frames to do the additional fix at the
top area.
17
Figure C.4.11
