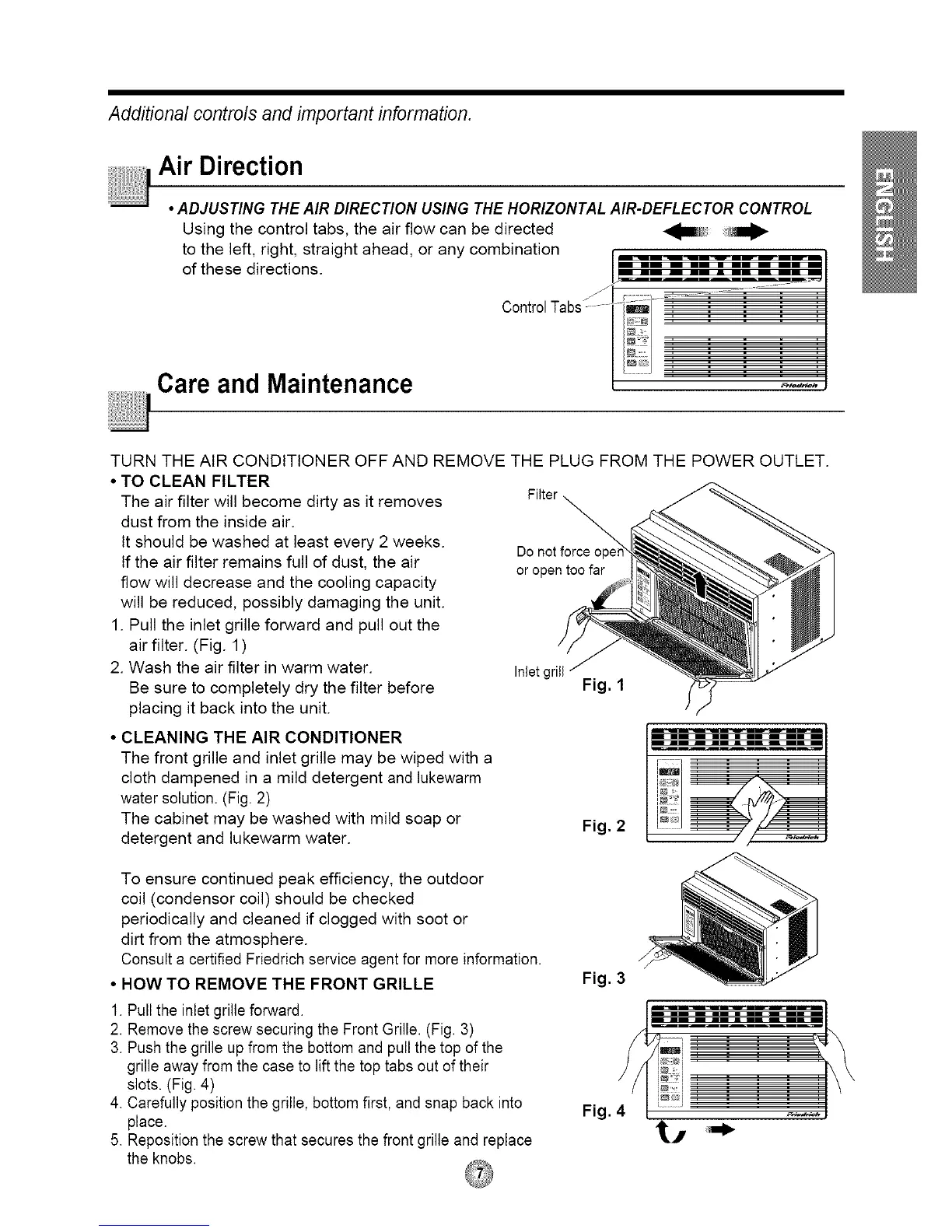

Air Direction
•ADJUSTING THEAIR DIRECTION USING THEHORIZONTAL AIR-DEFLECTOR CONTROL
Using the control tabs, the air flow can be directed _
to the left, right, straight ahead, or any combination
of these directions.
ControlTabs_
Care and Maintenance
......... 77_
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
• TO CLEAN FILTER
The air filter will become dirty as it removes
dust from the inside air.
It should be washed at least every 2 weeks.
If the air filter remains full of dust, the air
flow will decrease and the cooling capacity
will be reduced, possibly damaging the unit.
1. Pull the inlet grille forward and pull out the
air filter. (Fig. 1)
2. Wash the air filter in warm water.
Be sure to completely dry the filter before
placing it back into the unit.
•CLEANING THE AIR CONDITIONER
The front grille and inlet grille may be wiped with a
cloth dampened in a mild detergent and lukewarm
water solution. (Fig. 2)
The cabinet may be washed with mild soap or
detergent and lukewarm water.
Do not force o
or open too far
Inlet grill
Fig. 1
Fig. 2
To ensure continued peak efficiency, the outdoor
coil (condensor coil) should be checked
periodically and cleaned if clogged with soot or
dirt from the atmosphere.
Consult a certified Friedrich service agent for more information.
• HOW TO REMOVE THE FRONT GRILLE
1. Pull the inlet grille forward.
2. Remove the screw securing the Front Grille. (Fig. 3)
3. Push the grille up from the bottom and pull the top of the
grille away from the case to lift the top tabs out of their
slots. (Fig. 4)
4. Carefully position the grille, bottom first, and snap back into
place.
5. Reposition the screw that secures the front grille and replace
the knobs.
Fig. 3
Fig. 4
