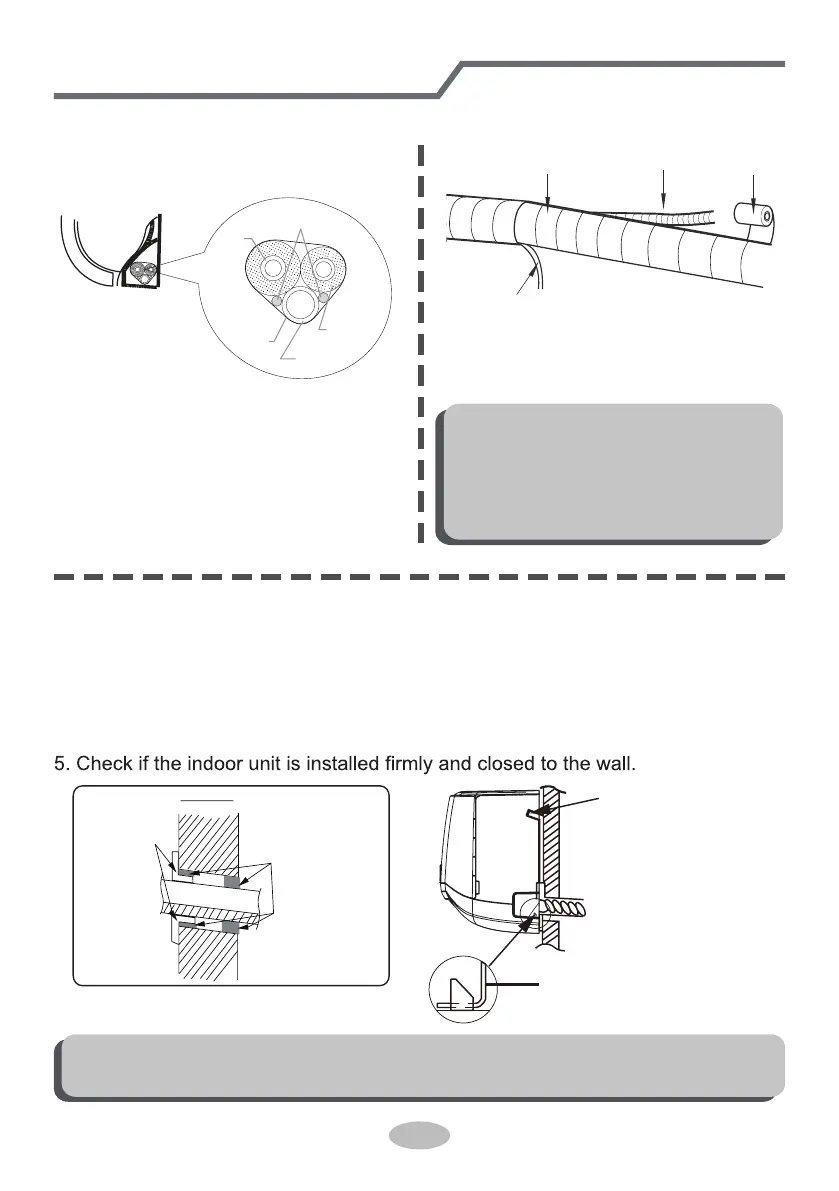

Installation of indoor unit
Step eight: bind up pipe
1.
Combine pipes, wires and drain line
in a UV rated line set covering
system.
indoor unit
gas
pipe
indoor and
outdoor power cord
liquid pipe
drain hose
band
2.
Be sure to allow for extra line set,
wire and drain to connect to outdoor
unit.
3. Bind them evenly.
4. The liquid pipe and gas pipe should
be bound separately at the end.
Be sure that drain pipe is routed at
the bottom of the binded pipe. To
ensure proper drainage.
band
connection pipe
indoor power cord
Step nine: hang the indoor unit
1. Put the bound pipes in the wall pipe and then make them pass through the wall
hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
Note:
● Do not bend the drain hose too excessively in order to prevent blocking.
indoor
outdoor
wall pipe
sealing gum
lower hook of
wall-mounting frame
