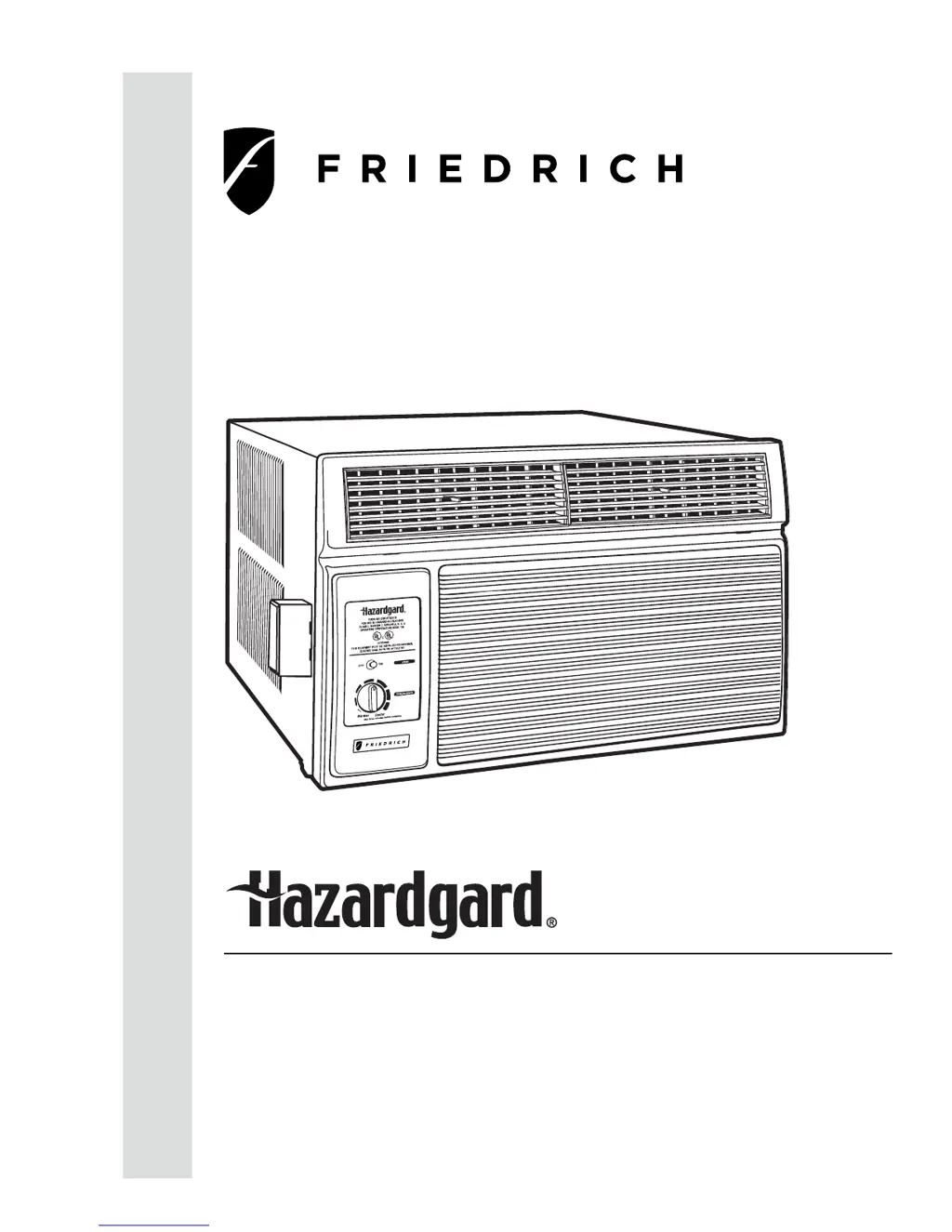

Friedrich Hazardgard SH15M30

Questions and Answers

S
sandersjohnAug 17, 2025
Why is my Friedrich Hazardgard SH15M30 Air Conditioner not cooling properly?
- J
  julienguyenAug 17, 2025
  If your Friedrich air conditioner isn't cooling well, several factors could be the cause: * Make sure the thermostat is set to the coldest position and test it. Replace if necessary. * A dirty air filter can restrict airflow. Clean it as recommended in the Owner's Manual. * Dirty or plugged condenser or evaporator coils can also reduce cooling efficiency. Clean the coils. * Poor air circulation in the room can impact cooling. Adjust the air louvers, check the application, inspect for a dirty filter or evaporator coil, and check the fan motor. Correct as needed. * Low refrigerant levels due to a leak can cause poor cooling. Check for leaks and repair them. * If the compressor isn't pumping properly, it may need to be replaced.
J
Jesse GarciaAug 20, 2025
Why does my Friedrich Hazardgard SH15M30 Air Conditioner compressor run constantly and not cycle off?
- J
  Jeremy ReevesAug 20, 2025
  If your Friedrich air conditioner's compressor runs constantly, it could be due to several reasons: * An excessive heat load might be present. Test the unit's cooling performance to see if it's undersized for the space. * There might be a restriction in the line. Check for a partially iced coil and the temperature split across it. * A refrigerant leak could be the cause. Look for oil on silver soldered connections, check for a partially iced coil, check the split across the coil, and check for low running amperage. * The thermostat contacts may be stuck. Check the thermostat's operation and replace it if the contacts remain closed. * The thermostat setting could be incorrect. Make sure it's set properly.
E
Elizabeth BaileyAug 27, 2025
What to do if Friedrich Air Conditioner thermostat does not turn on the compressor?
- T
  Todd TaylorAug 27, 2025
  If the thermostat in your Friedrich air conditioner isn't turning on the compressor, here are some things to check: * There may be a loss of charge in the thermostat bulb, in which case you should replace the thermostat. * The thermostat contacts could be open. Test for continuity at terminals 1 and 2. Replace the thermostat if it's defective. * Incorrect or loose wiring can prevent the thermostat from activating the compressor. Connect the wires according to the wiring diagram and tighten any loose wires. * The system switch may be open. Test for continuity at the switch terminals 2 and 3.
R
Ryan JordanAug 30, 2025
What to do if Friedrich Hazardgard SH15M30 fan motor does not run?
- M
  Mark StoneAug 30, 2025
  If the fan motor in your Friedrich air conditioner isn't running, check these potential issues: * A defective On-Off switch can prevent the fan from running. Check continuity across terminals 2 and 3. * An open fan capacitor can be the cause. Test it with a capacitor analyzer and replace it if it's bad. * The fan motor itself may be inoperative. Check for power, and if power is present, perform a continuity test. Replace the motor if it's bad. * Incorrect wiring of the fan circuit can prevent operation. Connect according to the wiring diagram. * A solid-state relay might be open. Replace the relay. * Seized motor bearings can stop the fan. Replace the motor. * A bound fan blade or blower wheel can prevent the motor from running. Adjust for proper clearance.
K
Kristin RiceSep 1, 2025
What to do if my Friedrich Air Conditioner unit does not run?
- N
  Nicole SheltonSep 1, 2025
  If your Friedrich air conditioner isn't running, here's what you can check: * First, verify that the power is connected. * See if a branch circuit fuse has blown or a circuit breaker has tripped. Replace the fuse or reset the breaker. If this happens repeatedly, inspect the fuse or breaker size and check for shorts in the unit's wiring and components. * Inspect the wiring and connections at the switch for any looseness or disconnections. Ensure they are connected according to the wiring diagram. * Test the On-Off switch for continuity. If it's faulty, replace it.
C
Christine ConleySep 4, 2025
How to reduce noise and vibration in my Friedrich Air Conditioner?
- R
  Richard ConradSep 4, 2025
  Excessive noise and vibration in your Friedrich air conditioner can stem from several sources: * Improper installation can cause vibrations. Refer to the installation instructions for proper setup. * The fan blade striking the chassis or the blower wheel housing can create noise. Adjust the fan blade or blower wheel clearance. * A vibrating compressor can be the source. Check for deteriorated compressor grommets and replace them if needed. * Loose cabinet parts, improperly mounted components, or tubing rubbing together can also cause noise. Adjust and tighten as required.
M
Morgan TateSep 9, 2025
What causes water leaks into the room from a Friedrich Air Conditioner?
- J
  Juan MaySep 9, 2025
  If water is leaking into the room from your Friedrich air conditioner, consider these possible causes: * The evaporator drain pan may be overflowing due to an obstructed drain trough. Clean the trough. * Condensation may be forming on the bottom of the base pan. This could be due to a broken or cracked evaporator drain pan or a missing or defective chassis seal gasket. * Water dripping from the discharge air grilles can occur. This is often caused by a dirty evaporator coil or extremely high humidity conditions. Clean the coil or check the application.
J
John MontgomerySep 12, 2025
Why is my Friedrich Hazardgard SH15M30 leaking too much water outside?
- P
  perezalanSep 12, 2025
  If your Friedrich air conditioner is leaking excessive water outside, here are some potential causes: * Extremely high humidity conditions can lead to more condensation. Consider installing a drain kit. * Water in the center section of the base pan (compressor area) could indicate a problem with the drain trough. Check its level and ensure it has a 1/4” tilt toward the rear. * A dirty condenser coil can contribute to water leakage. Clean it with steam or detergent. * An improperly positioned fan blade and slinger ring can cause excessive water leakage. Adjust the fan blade to have a 1/2” clearance from the condenser coil.
Z
zachary03Sep 14, 2025
What causes the Friedrich Air Conditioner switch not to cut the fan motor off?
- B
  Bobby TorresSep 14, 2025
  If the On-Off switch on your Friedrich air conditioner doesn't cut the fan motor off, it's likely due to a defective switch or a defective relay. Replace the switch or relay.
D
Douglas ColemanNov 21, 2025
How to fix a Friedrich Air Conditioner evaporator coil that freezes up?
- K
  Kimberly GibsonNov 21, 2025
  If the evaporator coil in your Friedrich air conditioner is freezing up, consider these potential causes and solutions: * A dirty filter can restrict airflow. Clean the filter as recommended in the Owner's Manual. * Restricted airflow can also be due to a dirty or obstructed coil. Check and clean as required. * An inoperative thermostat could be the issue. Test for a shorted thermostat or stuck contacts. * A shortage of refrigerant can cause freezing. De-ice the coil and check for leaks. * A partially restricted capillary can also lead to this problem. De-ice the coil, check the temperature differential across the coil, and touch-test coil return bends for consistent temperature. Also, test for low running current. * If the fan motor is inoperative, test it and replace it if n...

Summary

IMPORTANT SAFETY INFORMATION

PERSONAL INJURY OR DEATH HAZARDS

Covers electrical and other physical hazards leading to injury or death.

REFRIGERATION SYSTEM HAZARDS

Safety precautions for handling refrigerants and system components.

MECHANICAL HAZARDS

Safety precautions related to moving parts and sharp edges.

PROPERTY DAMAGE HAZARDS

Guidelines to prevent fire and water damage to the unit and property.

Unit Component Identification

Diagram identifying the main internal components of the air conditioner unit.

UNIT IDENTIFICATION

HAZARDGARD APPLICATION

SPECIFICATIONS AND PERFORMANCE DATA

Cooling Performance Data

Provides detailed cooling performance metrics for different models.

Specifications

Lists key unit specifications such as capacity, electrical data, and dimensions.

Installation Information

Details dimensions, window width, and thru-the-wall hole requirements.

ELECTRICAL DATA

HAZARDGARD SPECIAL FEATURES

Control Panel Functions

Explains the operation of the power switch and temperature control knob.

COMPONENT DEFINITIONS

Mechanical Components

Definitions for parts like plenum, blower wheel, and slinger fan blade.

Electrical Components

Definitions for parts like thermostat, system switch, relay, capacitor, and fan motor.

Hermetic Components

Definitions for compressor and low ambient bypass valve.

COMPONENT TESTING

Fan Motor Testing

Procedures to test the fan motor's windings and continuity.

Capacitor Testing

Methods for testing capacitor health and functionality.

Solid State Relay Testing

Procedures to test the solid state relays for compressor and fan motor.

System Control Switch Testing

Steps to test the continuity of the system control switch.

THERMOSTAT AND LOW AMBIENT BYPASS VALVE

R-410 A SEALED SYSTEM REPAIR CONSIDERATIONS

R-410 A SEALED REFRIGERATION SYSTEM REPAIRS

Equipment Required for Repairs

List of essential tools and equipment needed for refrigeration system repairs.

Refrigerant Charging Procedure

Step-by-step guide for safely charging refrigerant into the system.

Method Of Charging; Repairs

Refrigerant System Diagnosis

Undercharged Refrigerant Systems

Symptoms, causes, and checks for systems with insufficient refrigerant.

Overcharged Refrigerant Systems

Symptoms, causes, and checks for systems with excess refrigerant.

Restricted Refrigerant System Troubleshooting

COMPRESSOR CHECKS

Locked Rotor Voltage (L.R.V.) Test

Method to test the voltage available to the compressor under stalled conditions.

Amperage (L.R.A.) Test

Procedure to measure the compressor's running and locked rotor amperage.

Internal Overload Check

How to test the compressor's internal overload protector for continuity.

COMPRESSOR REPLACEMENT

Single Phase Resistance Test

Procedures for testing compressor motor winding resistances.

Special Procedure for Motor Compressor Burnout

Specific steps to address and clean systems after a compressor burnout.

ROUTINE MAINTENANCE

Air Filter Maintenance

Instructions for cleaning and replacing the unit's air filter.

Coils and Base Pan Cleaning

Guidance on cleaning the indoor/outdoor coils and base pan.

Blower Wheel and Fan Maintenance

Procedures for inspecting and cleaning blower wheel and fan components.

Electronic;Electrical;Mechanical Inspection

Periodic inspection of unit's electronic, electrical, and mechanical parts.

ROUTINE MAINTENANCE (Continued)

Sleeve and Drain Maintenance

Instructions for inspecting and cleaning the unit's sleeve and drain system.

Front Cover Cleaning

Method for cleaning the unit's front cover.

Clearance Checks

Verifying that unit clearances have not been compromised.

PERFORMANCE TEST DATA SHEET

Sizing Guide

General guidelines for selecting the appropriate air conditioner size.

TROUBLESHOOTING

Unit Does Not Run

Troubleshooting steps for a non-operational unit.

Evaporator Coil Freezes Up

Diagnosing and resolving issues causing the evaporator coil to freeze.

Compressor Runs Continually

Troubleshooting why the compressor operates without cycling off.

Thermostat Issues

Steps to diagnose and fix problems related to thermostat operation.

Compressor Start;Overload Issues

Addressing issues with the compressor attempting to start or cycling on overload.

Fan Motor Not Running

Troubleshooting steps when the fan motor fails to operate.

Poor Cooling Performance

Diagnosing causes for reduced or insufficient cooling.

Water Leaks and Noise Issues

Resolving problems related to water leaks and excessive unit noise or vibration.

WIRING DIAGRAM AND SCHEMATIC

LIMITED WARRANTY

TECHNICAL SUPPORT CONTACT INFORMATION
