Friedrich KP05A10 KP06A10 User Manual

—13—

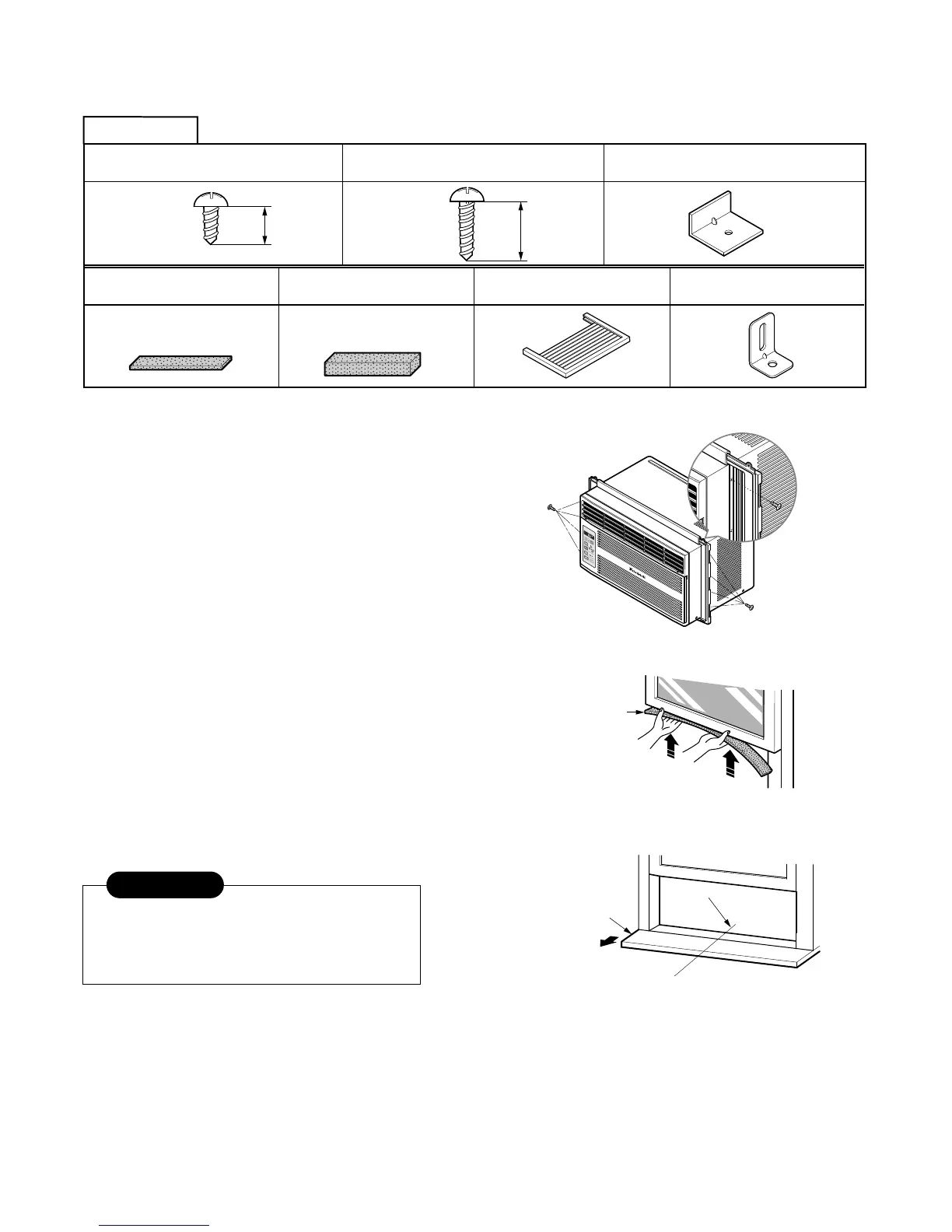

Installation
3.2.2 BEFORE INSTALLATION
1. Insert the guide panels into the guides of the air condi-
tioner. Fasten the curtains to the unit with screws (TYPE
A) as shown Figure. 25.
2. Cut the adhesive-backed seal strip (TYPE D) to the window
width.
Remove the backing from the seal strip and attach the seal
strip to the underside of the bottom window. ( Figure . 26)
3.2.3 NOW START INSTALLATION
1. LOCATING UNIT IN WINDOW
Open the window and mark center line on the center of
the inner sill, as shown in Figure. 27.
2. ATTACH L BRACKET
a. Install the L brackets behind the inner window sill, with
the short side of bracket as shown.
Use the 2 screws (TYPE A) provided.
b. The bracket helps to hold unit securely in place. Be
sure to place bracket edge flush against back of inner
sill. See Figure. 27.
TYPE B: 5EA
(WOOD SCREW)
HARDWARE
TYPE A: 11EA
(SHORT SCREW)
TYPE C: 3EA
(
L BRACKET)
TYPE E: 1EA
(SASH SEAL)
(Not adhesive backed)
TYPE D: 1EA
(SEAL STRIP)
(Adhesive backed)
TYPE F: 2EA
(GUIDE PANEL)
TYPE G: 1EA
(SUPPORT BRACKET)
10mm
16mm
During the following step, hold unit firmly until
window sash is lowered to top channel behind
side panel frames. Personal injury or property
damage may result if unit falls from window.
CAUTION
ROOM SIDE
CENTER LINE
INNER SILL
SEAL STRIP
(TYPE D)
TYPE A
TYPE A
Figure 25
Figure 26
Figure 27
