ELECTRIC SHOCK HAZARD
WARNING
Turn off electric power before inspections,
maintenances, or service.
Failure to do so could result in serious injury
or death.
22
COMPONENTS TESTING

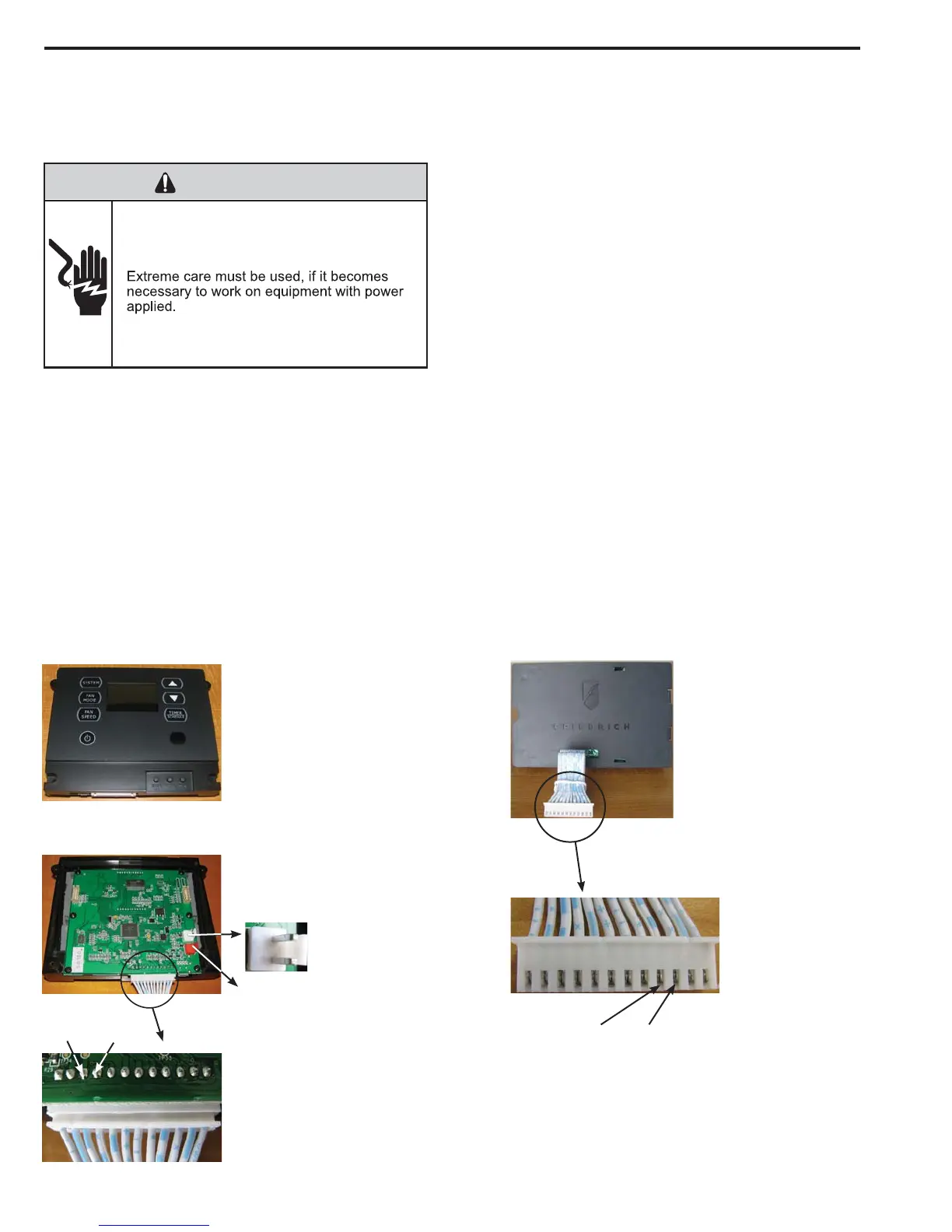

Testing the User Interface and Relay Board
If the user interface does not turn on:
1. Unplug unit, remove the User Interface.
2. Replug power cord and make sure the unit has the proper voltage and that is is turned on.
3. Reconnect the user interface’s wire harness. (Ensure it is in good condition.)
4. Using a voltmeter, check for 5VDC at plug - see Image #2 and #3.
5. For room temperature thermistor’s voltage test, see Image #2.
User Interface Tests Relay Board Test
Check here for 3.3VDC. If no
voltage or wrong voltage, replace
the User Interface.
User Interface Voltage Test
Check here for 5VDC. If no
voltage or wrong voltage,
replace relay board. If voltage
is OK, replace User Interface.
Test for 5VDC. If no
voltage or wrong voltage,
replace relay board.
+
-
+ -
+ -
Not used.
Image 1
Image 4
Image 2
Image 5
Image 3
Room Temperature Thermistor
Voltage Test
Ensure there is 5 VDC at User
Interface (see Image 3).
Front
Front
Back
To Next Page
