Friedrich MC24Y3F - Page 4

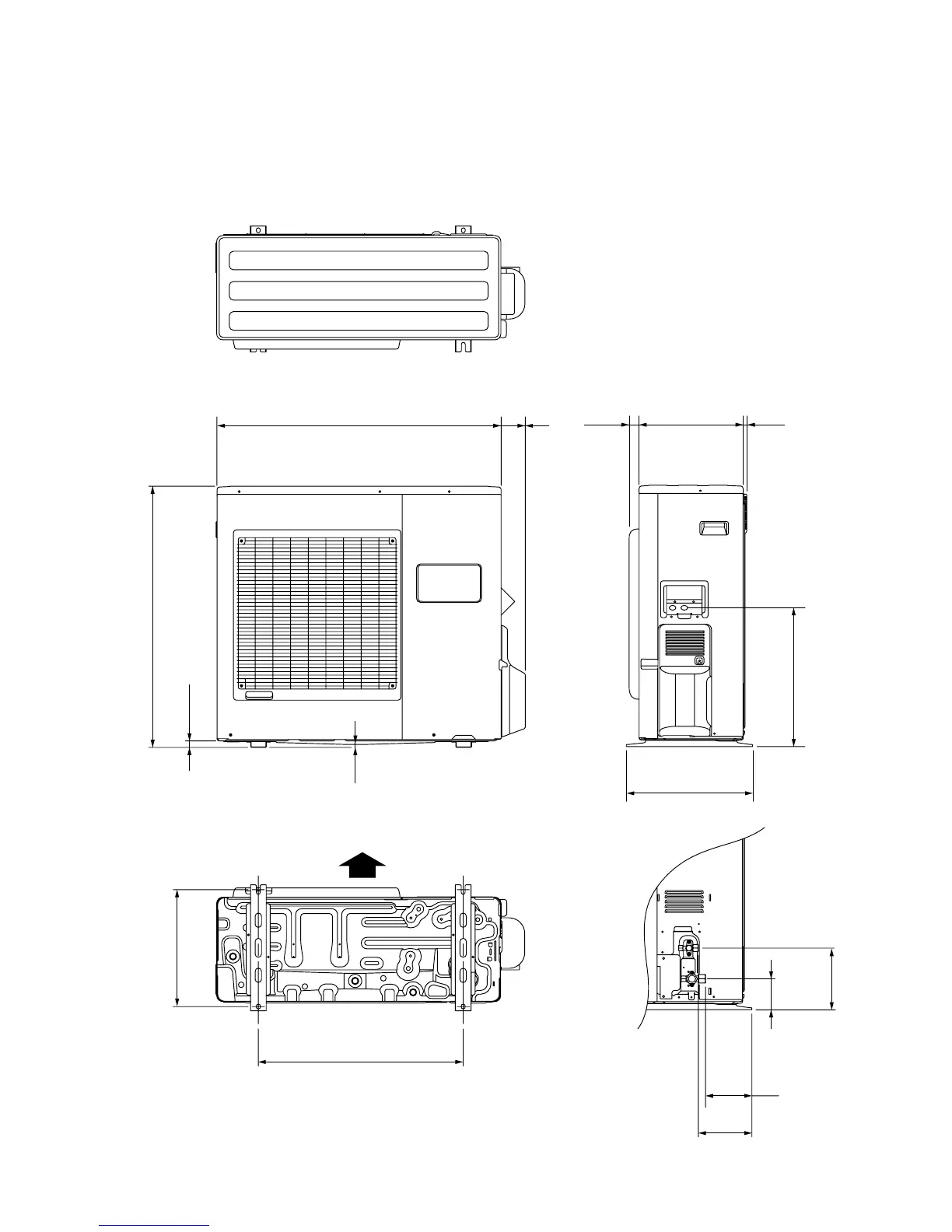

OUTDOOR UNIT
unit : inch (mm)
2006.05.18 3
3"(77)
35-1/2" (900)
32-3/4" (830)
17-3/8" (440)
7/8" (21)
3/8" (9)
15-3/4" (400)
13" (330)
1-1/4"
(31)
1/2"
(12)
7-3/4" (196)
5-3/4" (147)
6-3/4" (170)
3-7/8" (99)
14-5/8" (370)
25-5/8" (650)
Air Flow
