Friedrich PDE07K Installation Instructions

92016602

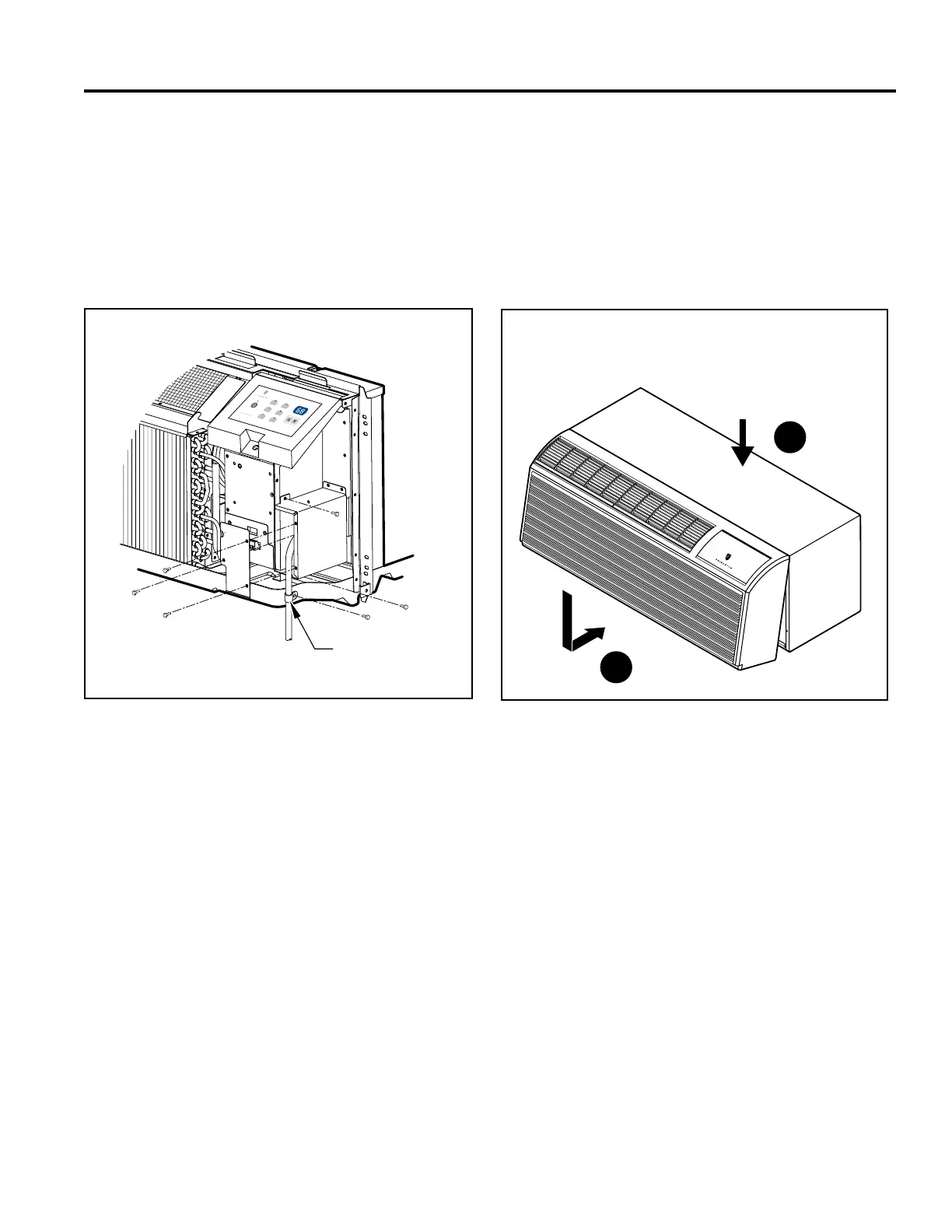

Figure 5
Wire Clamp
FRP019
WIRE CLAMP
High
Med
Low
Fan
Cool
Heat
Fan Speed Mode
Temperature
Power
1. Reinstall junction box and cover.
• Use wire clamp to attach power cord to
basepan. Secure with screws (included)
See Figure 5.
• Replace junction box and cover with screws
removed from Step 2. Tighten securely.
2. Replace front panel. See Figure 5.
Figure 6
Replacing Front Panel
FRP024
1
2
1. Place tabs over top rail (1). Push inward at bottom
until panel snaps into place (2).
2. Reinstall front panel. See Figure 6.
Installation Instructions POWER CORD ACCESSORY KIT
To remove the front cover, pull the bottom end forward
and lift it up to clear the L bracket across the top of
the chassis.
1. Plug the cord into the appropriate receptacle.
2. Restore power to the unit.
Electrical Wiring for 265 Volt Models
NOTE: It isrecommended that thePXSB subbaseassembly (or
equivalent)thePXCJAconduitkit(orequivalent)beinstalled
onallhardwireunits.Ifinstallingaush-oormountedunit,
makesurethechassiscanberemovedfromthesleevefor
serviceandmaintenance.
Power Cord Installation
All265VPTAC/PTHPunitscomewithafactoryinstallednon-LCDI
powercordforuseinasubbase.Iftheunitistobehard-wiredreferto
theinstructionsinPXCJAkit.
