ROOM AIR CONDITIONER UNIT PERFORMANCE TEST DATA SHEET
JOB NAME________________________________ TECHS NAME____________________________________
DATE: _______________ MODEL:_______________ SERIAL:________________
HOW IS ALL OF THE INSTALLATION? GOOD BAD
YES NO
IS THE UNIT INSTALLED 2 3/8” INTO THE PLENUM?
IS T H E F R E S H /E XAUS T AIR V E NT OP E N?
‘H’ WALL PLENUM INSTALLED? HCIRDEIRF A SI
IS A F R I
E DR IC H OU T DO OR G R IL LE INS T AL L E D?
?DEMROFREP GNIEB ECNANETNIAM SI ____ ____
____ ____
____ ____
____ ____
____ ____
If NO
is checked use back of sheet for explanation
E L E C T R IC AL :
LINE VOLTAGE (STATIC) --------- VOLTS
START UP VOLTAGE --------- VOLTS
AMPERAGE DRAW --------- AMPS (COOL)
AMPERAGE DRAW --------- AMPS (HEAT)
C OMP R E S S OR
LOCKED ROTOR AMPS --------- AMPS
AMPERAGE DRAW --------- AMPS
INDOOR TE MP E R AT U R E S :
INDOOR AMBIENT TEMPERATURE -------- F
RELATIVE HUMIDITY (RH) INDOOR -------- %
C OO L H E AT
DISCHARGE AIR TEMPERATURE (INDOOR) ---------- F --------- F
RETURN AIR TEMPERATURE (INDOOR) ---------- F --------- F
DIFFERENTIAL ---------- F --------- F
DIFFERENTIAL ---------- F --------- F
OU T DO OR T E MP E R AT U R E :
CO NDE NSE R:
OUTDOOR AMBIENT TEMPERATURE --------- F
RH OUTDOOR (RELATIVE HUMIDITY) --------- %
DISCHARGE AIR TEMPERATURE --------- F ---------- F
INTAKE AIR TEMPERATURE --------- F ---------- F
APPLICATION USE ------------------------- ROOM (RESIDENTIAL OR COMMERCIAL)
COOLING OR HEATING
AREA W ------------------- X L -------------------- X H --------------------- = SQ/CU/FT ----------------------
T his is a genera l guide. plea s e c ons ult manua l J or M.
This is a general guide.
Please consult manual J or M for exact load calculations.
1. If heavily shaded, reduce capacity 10%.
2. If very sunny, add 10%.
3. Add 500 BTU/H per person over 2 people.
4. Add 4,000 BTU/H if area is a kitchen.

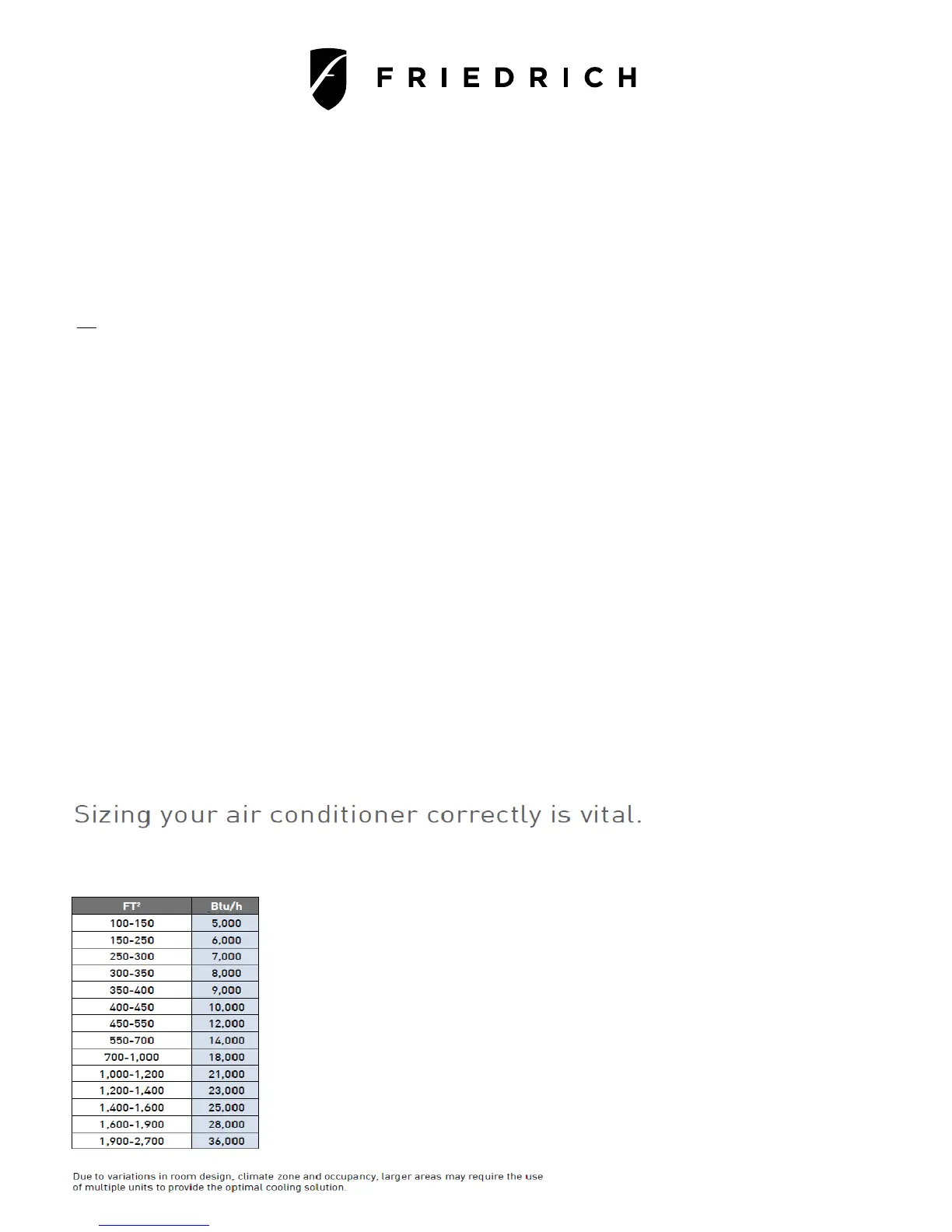

Siz ing Gu ide
Th e f oll owi ng gui de is ba s ed on no rma l r oom in sul ati on, a v er a ge nu mbe r o f s un- exp ose d w ind ows a n d t wo -pe rso n o ccu pan cy.
