The airow path may be adjusted to distribute air independently from the left or right side of the discharge opening. Each of the
banks of louvers can be directed left, right, up, or down in order to achieve the most optimum airow positioning.
To adjust airow direction left or right, grab the lever in the center of the louver bank and move it in the direction that you would
like the air to be directed. To adjust the airow up or down, rotate the entire vent to the desired position Please note that it is
normal that airow may be stronger out of one side of the louvers than the other.
OPERATION
Airow Adjustment

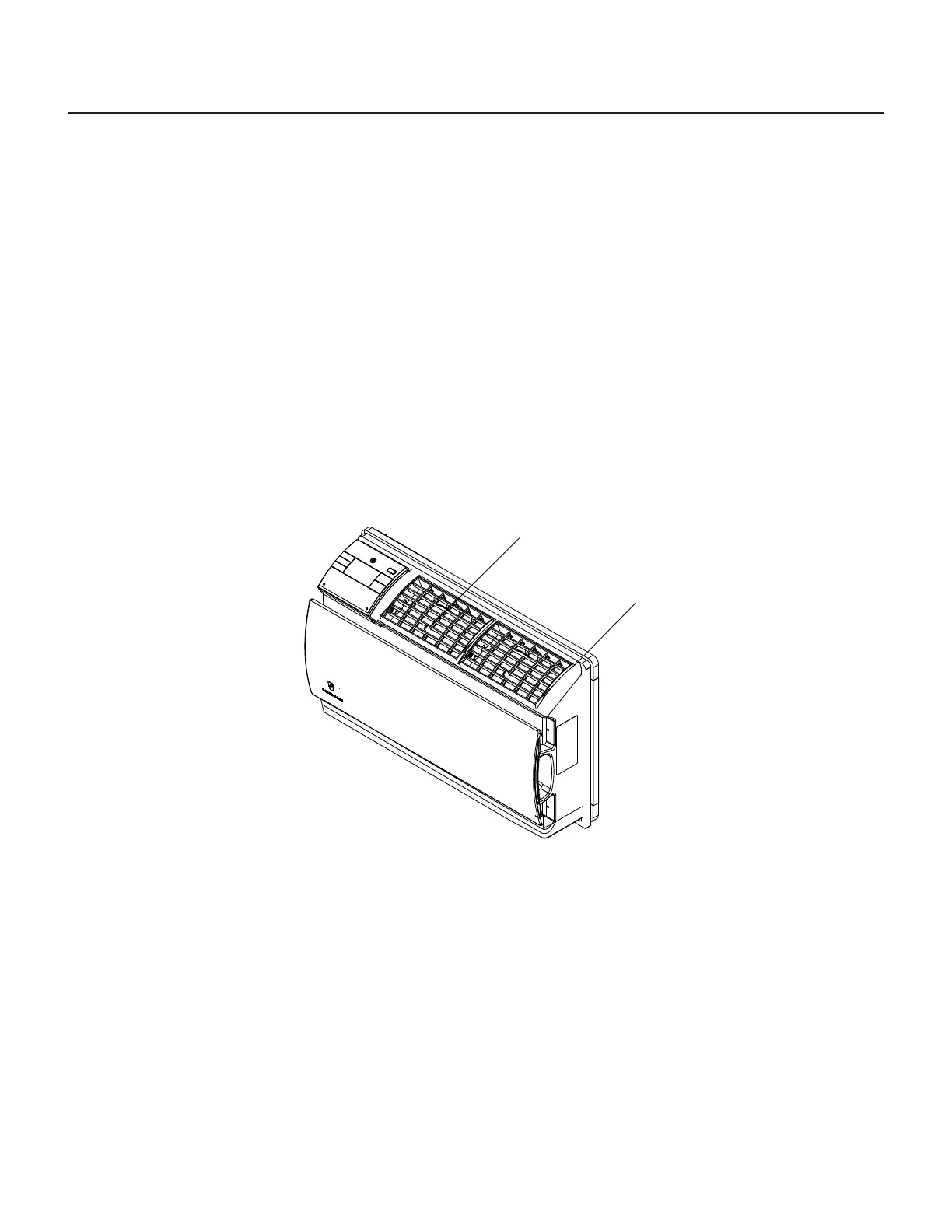

Figure 301 (AIRFLOW SELECTION AND ADJUSTMENT)
Left and right
Adjustment
Up and Down
Adjustment
