INSTALLATION INSTRUCTIONS
FOR INTERNAL DRAIN KIT
(IDK)

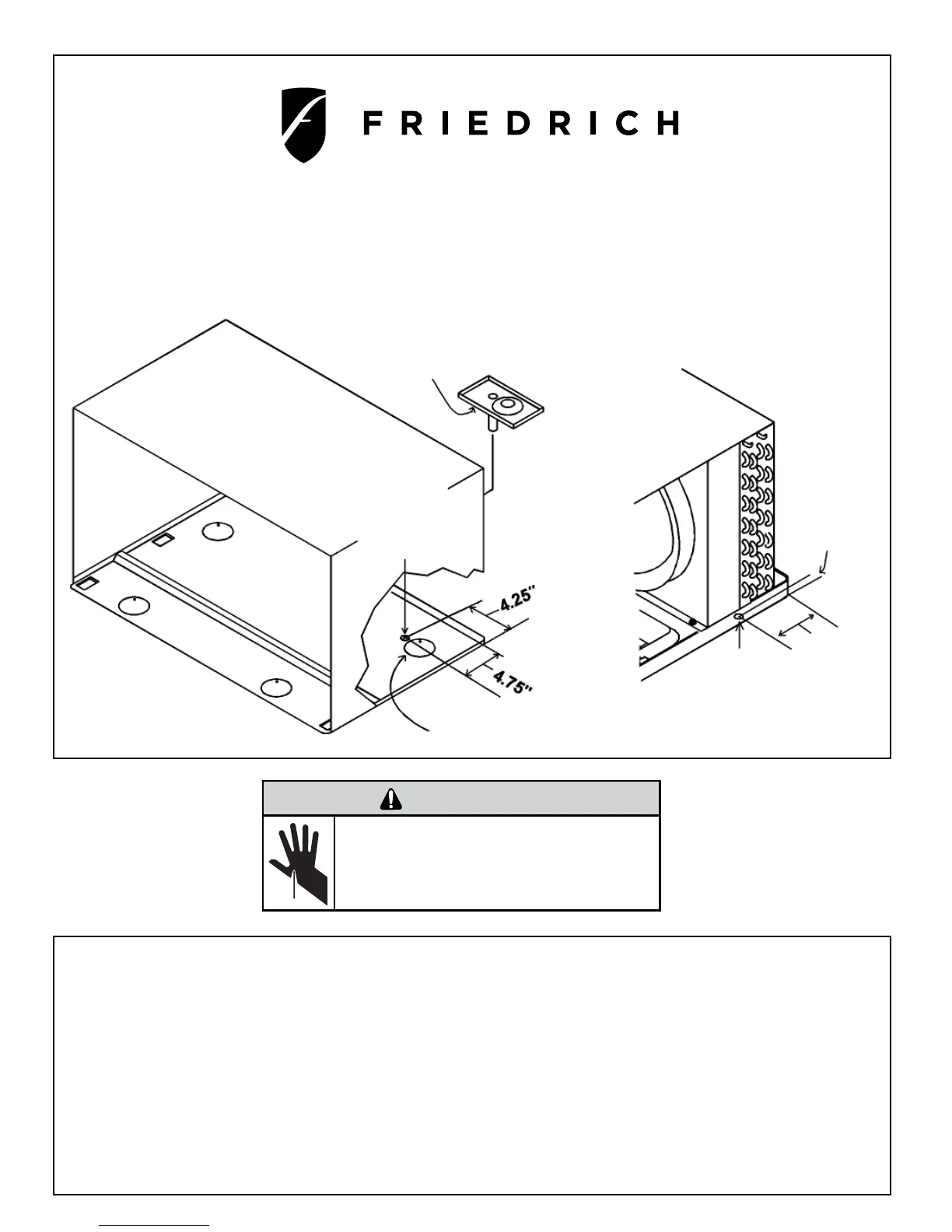

Apply Sealer to
the bottom of
the Drain Plate
Drill a .625”
diameter
hole here
Dimple
Wall Sleeve
Sleeve
Base
0.5” In
from edge
4.75” From
back of
basepan
Drill a .625”
diameter
hole in the
bottom of
the basepan
1. DRILL A .625” DIAMETER HOLE IN THE BOTTOM OF THE SLEEVE BASE TO THE
DIMENSIONS SHOWN.
2. APPLY A SILICONE TYPE OF SEALER TO THE OUTSIDE BOTTOM EDGES OF THE
DRAIN PLATE.
3. INSERT THE DRAIN TUBE INTO THE HOLE AND PRESS THE DRAIN PLATE DOWN TO
FORM A WATERTIGHT SEAL AGAINST THE SLEEVE BASE.
4. DRILL A .625” DIAMETER HOLE IN THE BOTTOM OF THE BASE PAN AS SHOWN IN THE
ILLUSTRATION. THIS HOLE ALLOWS CONDENSATE TO ENTER THE WALL SLEEVE
WHERE IT TRAVELS TO THE DRAIN KIT FOR DISPOSAL.
MECHANICAL HAZARD
WARNING
Sharp edges and corners. Be careful with
the sharp edges and corner. Wear protective
clothing and gloves, etc.
Failure to do so could result in serious injury.
Be careful with the sharp edges and corners.
Wear protective clothing and gloves, etc.
