14
Greater than
8 feet (2.5m)
•

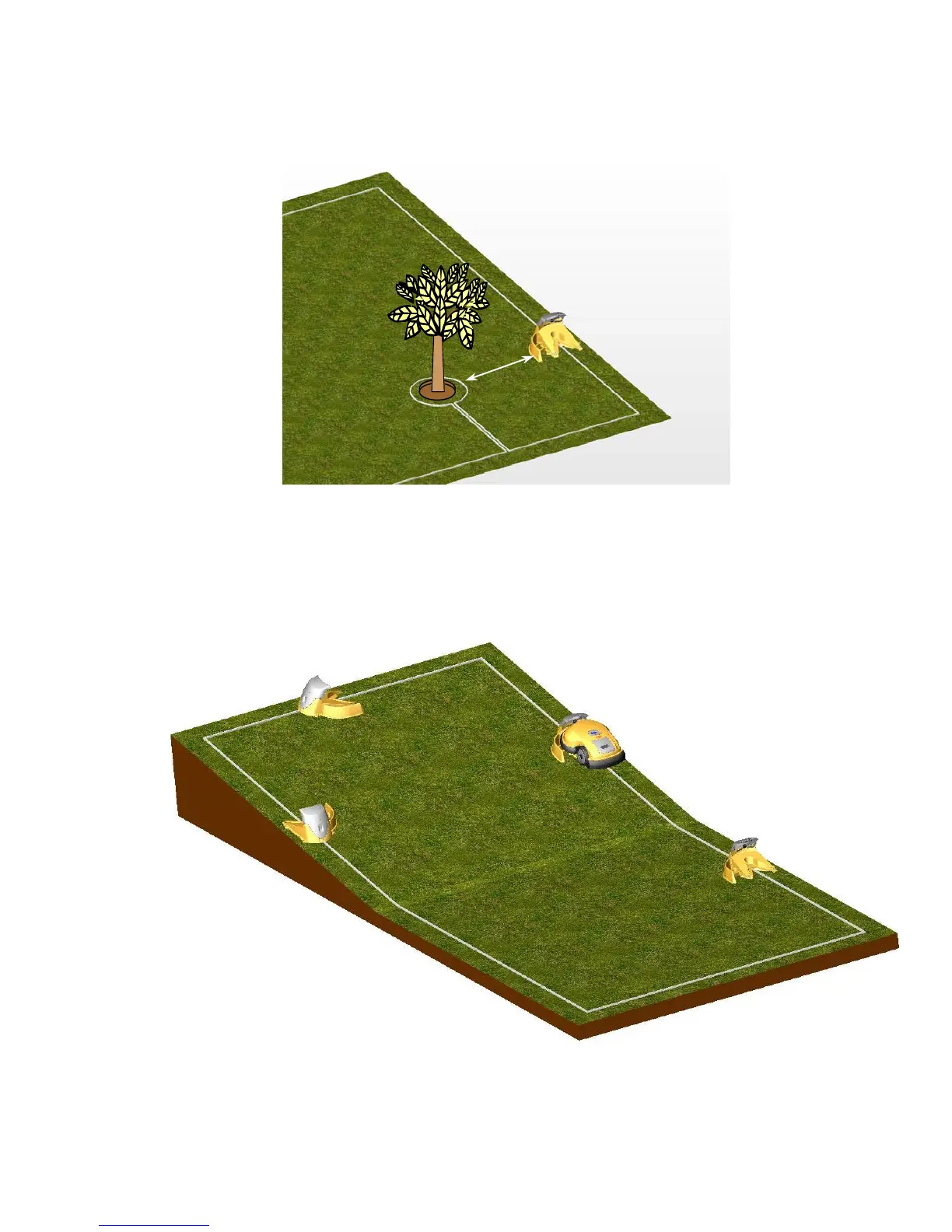

A minimum distance of 8 feet (2.5 meters) is required between the Docking Station fence and the
perimeter island. See figure 1.5.
Figure 1.5 – Distance From Perimeter Island
 Place the Docking Station on level ground. Do not place the Docking Station on a slopping ground.
See figure 1.6. The area under and around the Docking Station MUST be flat to insure proper docking
of the mower into the Docking Station. Ensure both drive wheels are leveled with the Docking
Station base.
Figure 1.6 – Placing Docking Station on Level Ground
U
O
K
U
U
Relatively Level – OK
Slo
p
in
g
– im
p
ro
p
er
