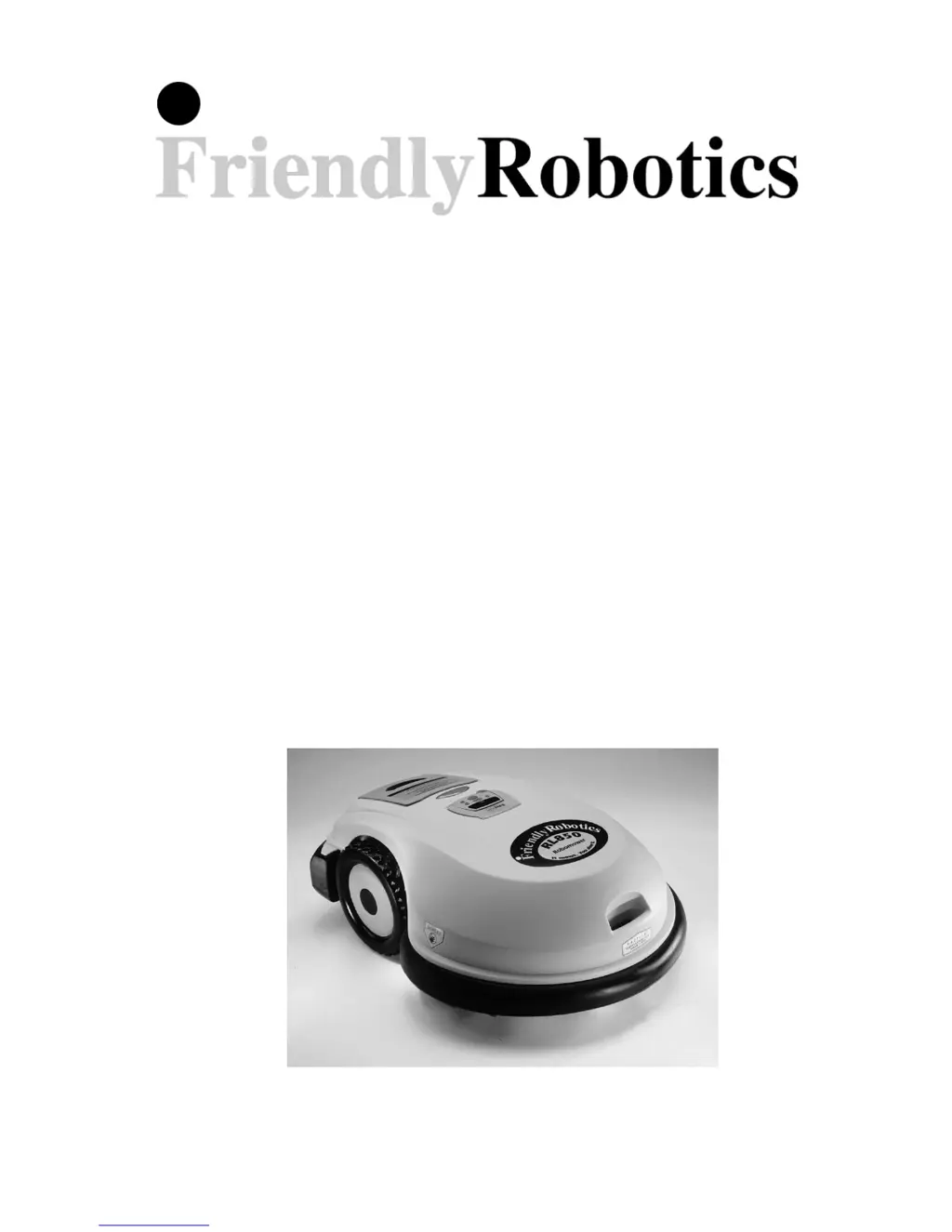

Operating & Safety
Manual
Robomow
RL500 / RL550
RL800 / RL850
www.friendlyrobotics.com
DOC0012A

Table of Contents

Questions and Answers

  • C
    Cole PayneSep 8, 2025
    Why the bumper on my Friendly Robotics Robomow RL500 isn't working?
    • T
      tcannonSep 8, 2025
      If the bumper on your Friendly Robotics Lawn Mower does not activate when striking an obstacle, it could be because the obstacle is less than 6 inches (15 cm) in height, is not rigid enough, or is positioned at an angle relative to the ground preventing square contact with the outermost surface of the bumper. Remove the obstacle or exclude it from the cutting area with the perimeter wire.
  • S
    Steven MartinAug 23, 2025
    Why my Friendly Robotics Robomow RL500 won't turn on and the LCD screen is blank?
    • B
      bradleyhansenAug 23, 2025
      If your Friendly Robotics Lawn Mower is not operating and the LCD screen is blank, it could be in deep sleep mode due to not being connected to the charger. To resolve this, lift the Power Pack from the mower and re-insert it after 10 seconds. Another reason could be that the Power Pack has been discharged from lack of charge maintenance. It is required for the charger to remain connected to the Robomower when not in use.
  • J
    Jeffrey HintonAug 25, 2025
    What does ‘Drive Overload Cooling, Wait…’ mean on my Friendly Robotics Robomow RL500?
    • J
      Jonathan WallaceAug 25, 2025
      If the Friendly Robotics Lawn Mower shows the message ‘Drive Overload Cooling, Wait…’, it means that the drive motors have been working under a severe load for too long. You should wait until the message ‘Drive Overload – Press GO’ is displayed before resuming operation.
  • C
    Carolyn GomezAug 27, 2025
    What does ‘Mowing Overload Cooling, Wait…’ mean on my Friendly Robotics Lawn Mower?
    • J
      Jodi TaylorAug 27, 2025
      If the Friendly Robotics Lawn Mower shows the message ‘Mowing Overload Cooling, Wait…’, it means that the mowing motors have been working under a severe load for too long. Wait until the message ‘Mowing Overload – Press GO’ is displayed.
  • C
    Charles UnderwoodAug 27, 2025
    Why Friendly Robotics Robomow RL500 does not complete the edge?
    • T
      tgravesAug 28, 2025
      If your Friendly Robotics Lawn Mower is not completing the edge, it could be due to an obstacle along the path or the geometry of your perimeter. Watch the full operation of the edge and confirm no obstacles are present. If you have RL500 & RL550 model, start the edge from the opposite side of the lawn.
  • A
    Andrew PadillaSep 22, 2025
    Why does my Friendly Robotics Robomow RL500 drive but the blades won't spin?
    • K
      kristina49Sep 22, 2025
      If your Friendly Robotics Lawn Mower drives but the blades will not mow, it is possible that ‘Mowing ‘has been turned to off. Change it back on under ‘User Preferences’.
  • D
    David TylerSep 16, 2025
    What does 'Start Elsewhere' mean on Friendly Robotics Robomow RL500 Lawn Mower?
    • M
      Michelle KingSep 16, 2025
      If your Friendly Robotics Lawn Mower displays 'Start Elsewhere', an unknown fault has occurred and operator help is required. Manually drive the mower away from this particular area and restart operation.
  • A
    Angela MejiaSep 18, 2025
    How to turn off Theft Guard on Friendly Robotics Robomow RL500?
    • K
      Karen HutchinsonSep 18, 2025
      If your Friendly Robotics Lawn Mower displays 'Theft Guard On', the theft guard system is activated. Enter the correct 4-digit code. You can deactivate ‘Theft Guard’ under ‘User Preferences’. Contact your service provider for assistance in a lost code situation.
  • A
    Angel LewisSep 7, 2025
    How to troubleshoot 'Check Power' on Friendly Robotics Robomow RL500 Lawn Mower?
    • B
      brittanyconwaySep 7, 2025
      If your Friendly Robotics Lawn Mower displays 'Check Power', confirm the power supply is plugged into the main receptacle. Also, check for power to this main receptacle by plugging in another appliance and ensure the main power is turned on to the receptacle.
  • R
    robin78Sep 4, 2025
    Why Friendly Robotics Robomow RL500 perimeter switch will not activate when turned on?
    • M
      Matthew MurphySep 4, 2025
      If your Friendly Robotics Lawn Mower's perimeter switch will not activate when turned on, the batteries may be completely discharged. Install fresh alkaline C-cell batteries. Also, check that the batteries are installed with the correct polarity position. Water/moisture protection of the Perimeter Switch can only be insured when mounted vertically. Replace Perimeter Switch if it's not mounted vertically.

Summary

Safety Warnings and Precautions

General Safety Instructions

Lists crucial safety rules for operating the Robomower.

Warning Decal Definitions

Explanation of Safety Symbols

Details the meaning of various safety symbols used in the manual.

Safety Features

Chapter 1: Perimeter Wire Setup

Where To Start Setup

Using The RoboRuler for Placement

Starting The Perimeter Wire Laying

Instructions for unwinding and beginning to lay the perimeter wire.

Fastening Wire and Handling Corners

Fastening The Wire To The Ground

How to secure the perimeter wire using pegs.

Corners & Sharp Turns

Narrow Areas and Obstacle Exclusion Zones

Narrow Areas And Narrow Passes

Defining Obstacles-Perimeter Islands

How to create exclusion zones around obstacles.

Completing Perimeter Wire Setup

Completing The Setup

Final steps to connect the perimeter switch and wires.

Perimeter Switch Connection and Mounting

Perimeter Switch Connection

Details on connecting wires, indicators, and mounting the switch.

Chapter 2: Preparing The Robomower

Power Pack Fuse Installation

Using The Manual Controller

Using The Manual Controller

Overview of the Manual Controller's buttons and functions.

Adjusting Cutting Height and Ground Clearance

Setting The Cutting Height And Ground Clearance

How to adjust the mower's cutting height and ground clearance with safety notes.

Safety Warning for Blade Adjustment

Critical safety warning when working near the blades.

Initial Calibration and Wire Testing

Set Country and Perform One Time Calibration

Guide to the essential one-time calibration and perimeter wire testing.

Testing Wire Position for Edge Mowing

Calibration Setup Sequence Guide

Calibration Setup Sequence

Step-by-step process for the mower's initial calibration.

Chapter 3: Automatic Operation

Activating Perimeter Switch and Starting Mowing

Mowing Pattern and Positioning

Chapter 4: Power Pack Charging & Power Management

Power Pack Charging Procedures

Detailed instructions for charging the power pack.

Charger Safety Precautions

Critical safety warnings related to the charger and charging process.

Chapter 5: Manual Operation

Driving and Navigating Manually

Manual Mowing and Safety

Chapter 6: Operator Settings and Advanced Features

Accessing User Options and Preferences

Performing Safety Tests

Performing Safety Tests

Chapter 7: Text Messages and Troubleshooting

Understanding LCD Messages and Causes

Chart of common messages, their probable causes, and corrective actions.

Troubleshooting Specific Operational Faults

Troubleshooting Specific Operational Faults

Further details on faults like 'Restart Elsewhere', 'Theft Guard', and 'No Wire Signal'.

Resolving Other Operational or Fault Problems

Resolving Other Operational or Fault Problems

Solutions for issues like disconnected wires, weak batteries, or bumper activation.

Troubleshooting Mowing and Runtime Issues

Troubleshooting Mowing and Runtime Issues

Addressing problems such as short run time, uncut grass, or language settings.

Chapter 9: Care and Maintenance

Mowing Deck and Blade Maintenance
