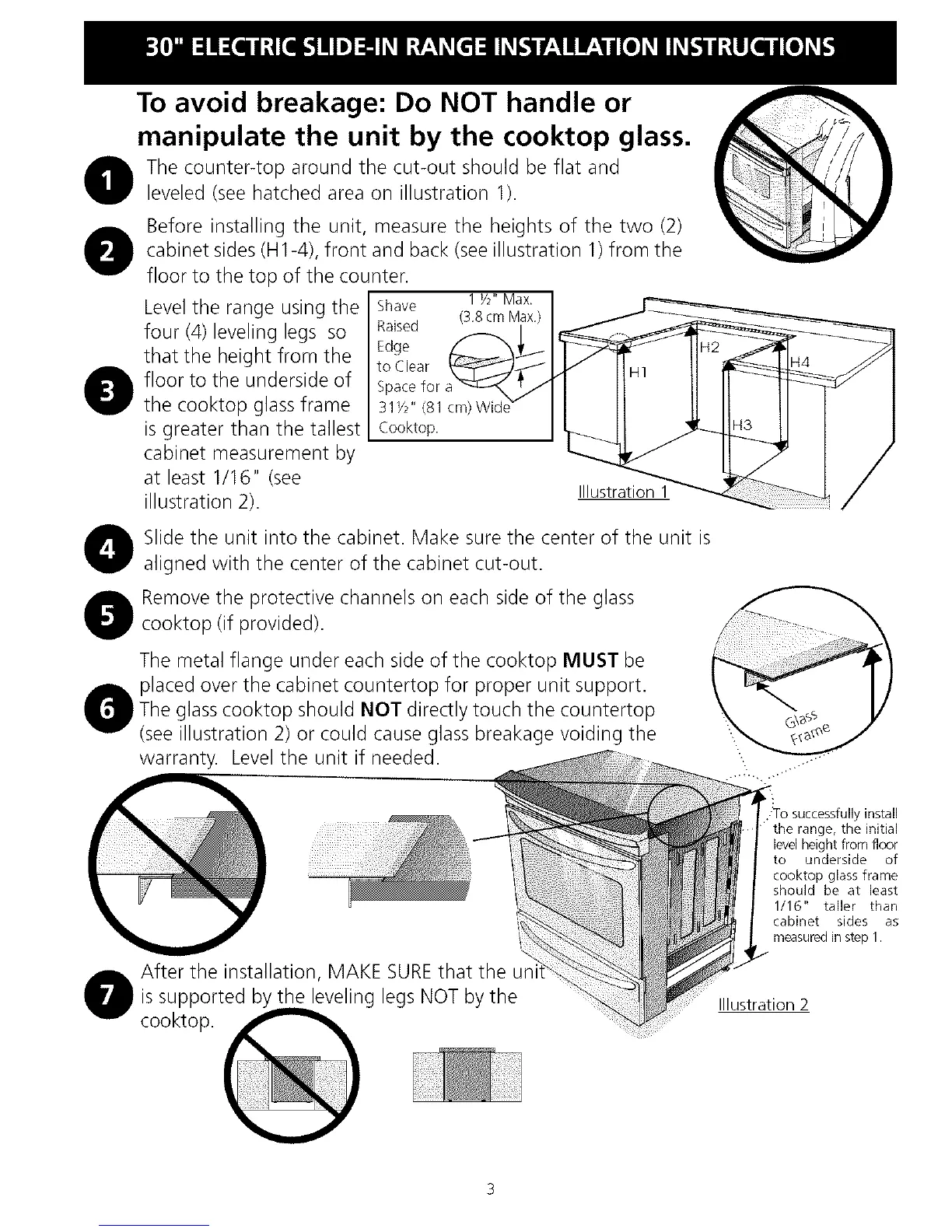

To avoid breakage: Do NOT handle or
manipulate the unit by the cooktop glass.
A The counter-top around the cut-out should be flat and i /
leveled (see hatched area on illustration 1).
Before installing the unit, measure the heights of the two (2)
_!_ cabinet sides (H1-4), front and back (see illustration 1) from the
floor to the top of the counter.
Level the range using the
four (4) leveling legs so
that the height from the
floor to the underside of
the cooktop glass frame
is greater than the tallest
cabinet measurement by
at least 1/16" (see
illustration 2).
Shave 1 72"MaX.a(_e __L 1
(3,8cm Max,) I
Raised .........
Edge
to Clear
Space for
31V2" (81 cm)Wk
Cooktop.
/
Slide the unit into the cabinet. Make sure the center of the unit is
aligned with the center of the cabinet cut-out.
Remove the protective channels on each side of the glass
cooktop (if provided).
The metal flange under each side of the cooktop MUST be
placed over the cabinet countertop for proper unit support.
The glass cooktop should NOT directly touch the countertop
(see illustration 2) or could cause glass breakage voiding the
warranty. Level the unit if needed.
_ro successfully install
the range, the initial
level height from floor
to underside of
cooktop glass frame
should be at least
1/16" taller than
cabinet sides as
measured in step 1.
O After the installation, MAKE SUREthat the
is supported by the leveling legs NOT by the
cooktop.
Illustration 2
3
