Frigidaire Dishcare - Page 16

Dishcare Product Specifications
page 16
4"
18"
34
1
/4"
min.
24"
min.
3"
Electrical
Wiring
Hot
Water
Line
Electrical,
water, and
drain lines
must be
confined to
shaded area.
6"
6"
24"
1
1
/2"1
1
/2"
7
1
/2"
90°
90°
INSTALLATION

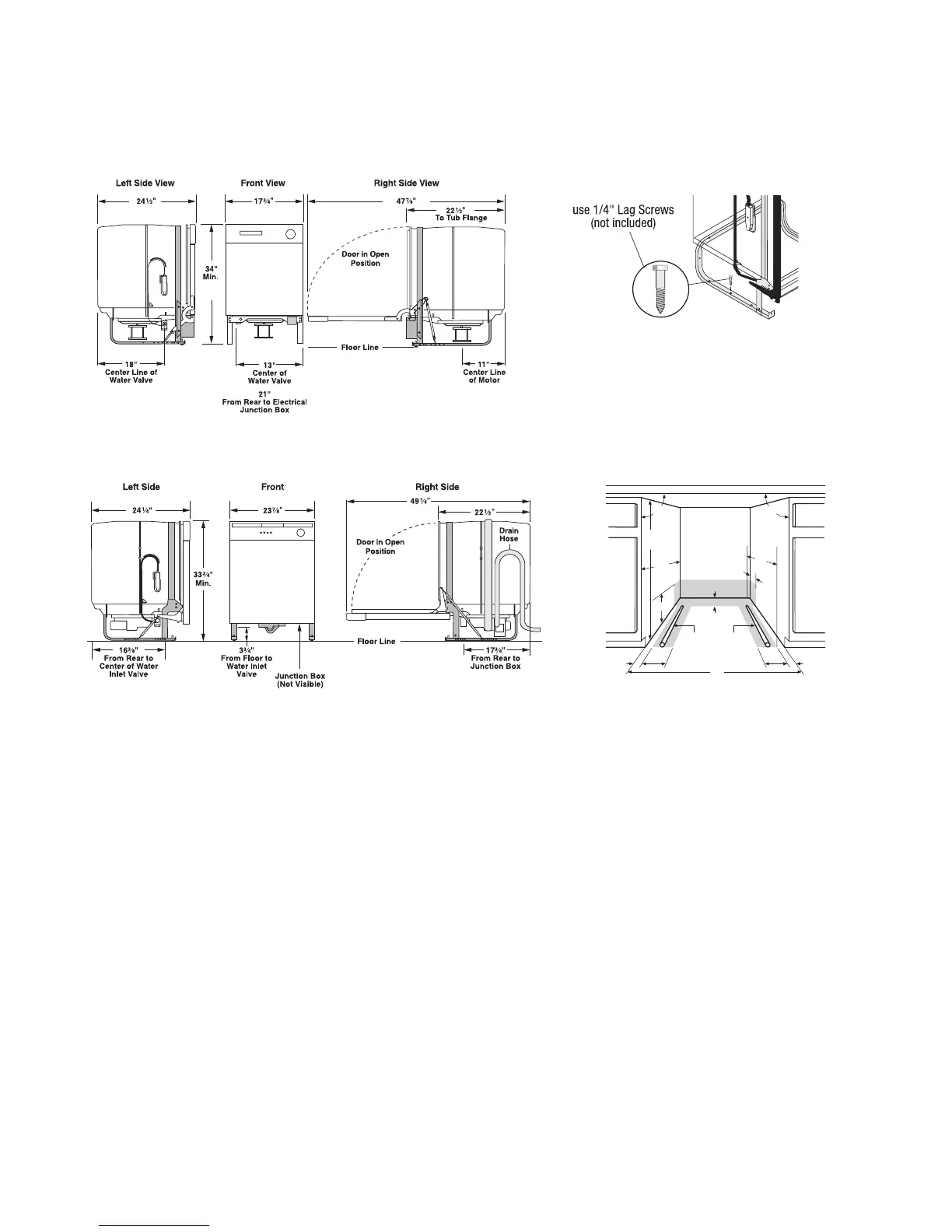

The dimension and cutout information is for planning purposes only.
Consult installation instructions packed with individual product for complete details.
Floor Anchoring
When a new layer of flooring is applied, reduced installation height
can occur. To reduce a Frigidaire dishwasher to a 33-1/2"
installation height, remove the countertop anchoring clips from
the dishwasher frame and mount to the floor with 1/4" lag screws
(not included) through the holes provided in the dishwasher frame.
Use expansion fasteners if floor is concrete (see illustration).
18" Dishwashers
24" Dishwashers
