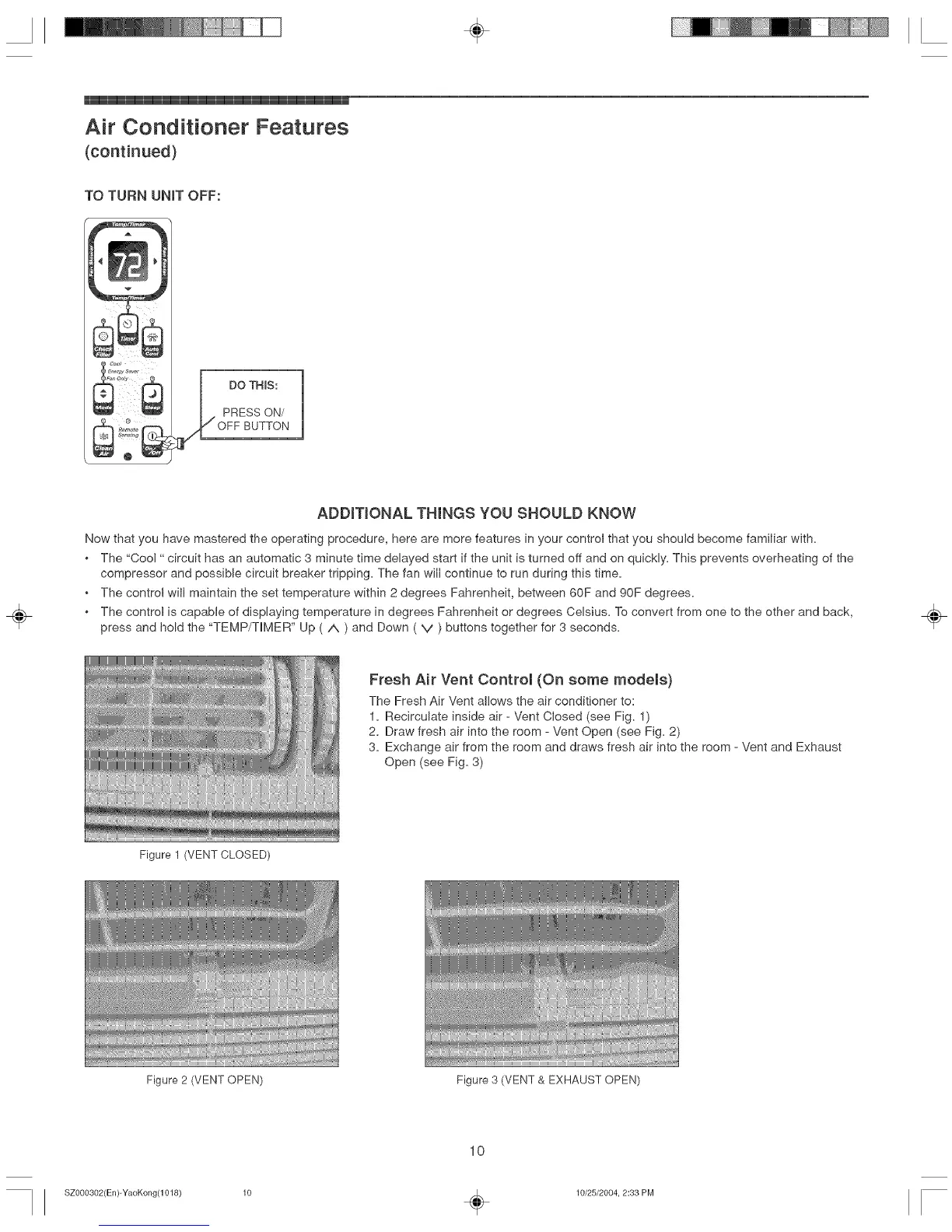

Air Conditioner Features
(continued)
TO TURN UNiT OFF:
DO THINS:
I / PRESS ON/
_._ OFF BUTTON
÷
ADDiTiONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with=
• The "Cool "circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the
compressor and possible circuit breaker tripping. The fan will continue to run during this time.
• The control wilI maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees.
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other and back,
press and hold the "TEMP/TIMER" Up ( A ) and Down ( V ) buttons together for 3 seconds.
Figure 1 (VENT CLOSED)
Figure 2 (VENT OPEN)
÷
Fresh Air Vent Control (On some models)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (see Fig. 1)
2. Draw fresh air into the room - Vent Open (see Fig. 2)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust
Open (see Fig. 3)
Figure 3 (VENT & EXHAUST OPEN)
10
