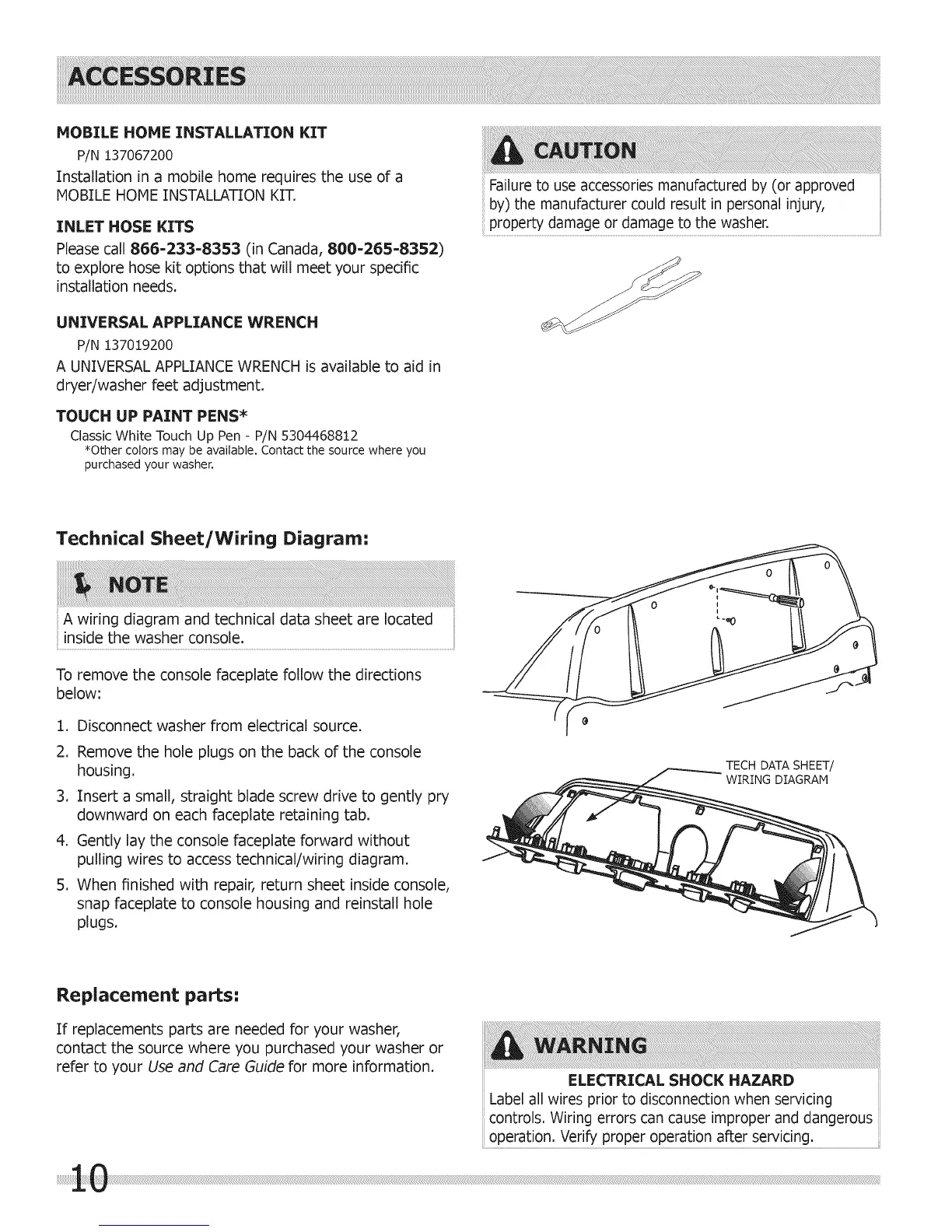

MOBILE HOME INSTALLATION KIT
P/N137067200
Installation in a mobile home requires the use of a
MOBILE HOME INSTALLATION KIT.
INLET HOSE KITS
Please call 866-233-8353 (in Canada, 800-265-8352)
to explore hose kit options that will meet your specific
installation needs.
UNIVERSAL APPLIANCE WRENCH
P/N 137019200
A UNIVERSAL APPLIANCE WRENCH is available to aid in
dryer/washer feet adjustment.
TOUCH UP PAINT PENS*
ClassicWhite TouchUp Pen- P/N5304468812
*Other colors may be available, Contact the source where you
purchased your washer.
Failure to use accessories manufactured by (or approved
by) the manufacturer could result in personal injury,
property damage or damage to the washer.
Technical Sheet/Wiring Diagram,'
A wiring diagram and technical data sheet are located
inside the washer console,
To remove the console faceplate follow the directions
below:
i.
2.
Disconnect washer from electrical source.
Remove the hole plugs on the back of the console
housing.
3. Insert a small, straight blade screw drive to gently pry
downward on each faceplate retaining tab.
4. Gently lay the console faceplate forward without
pulling wires to access technical/wiring diagram.
5. When finished with repair, return sheet inside console,
snap faceplate to console housing and reinstall hole
plugs.
TECH DATA SHEET/
WIRING DIAGRAM
Replacement parts:
If replacements parts are needed for your washer,
contact the source where you purchased your washer or
refer to your Use and Care Guide for more information.
ELECTRICAL SHOCK HAZARD
Label all wires prior to disconnection when servicing
controls, Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing,
