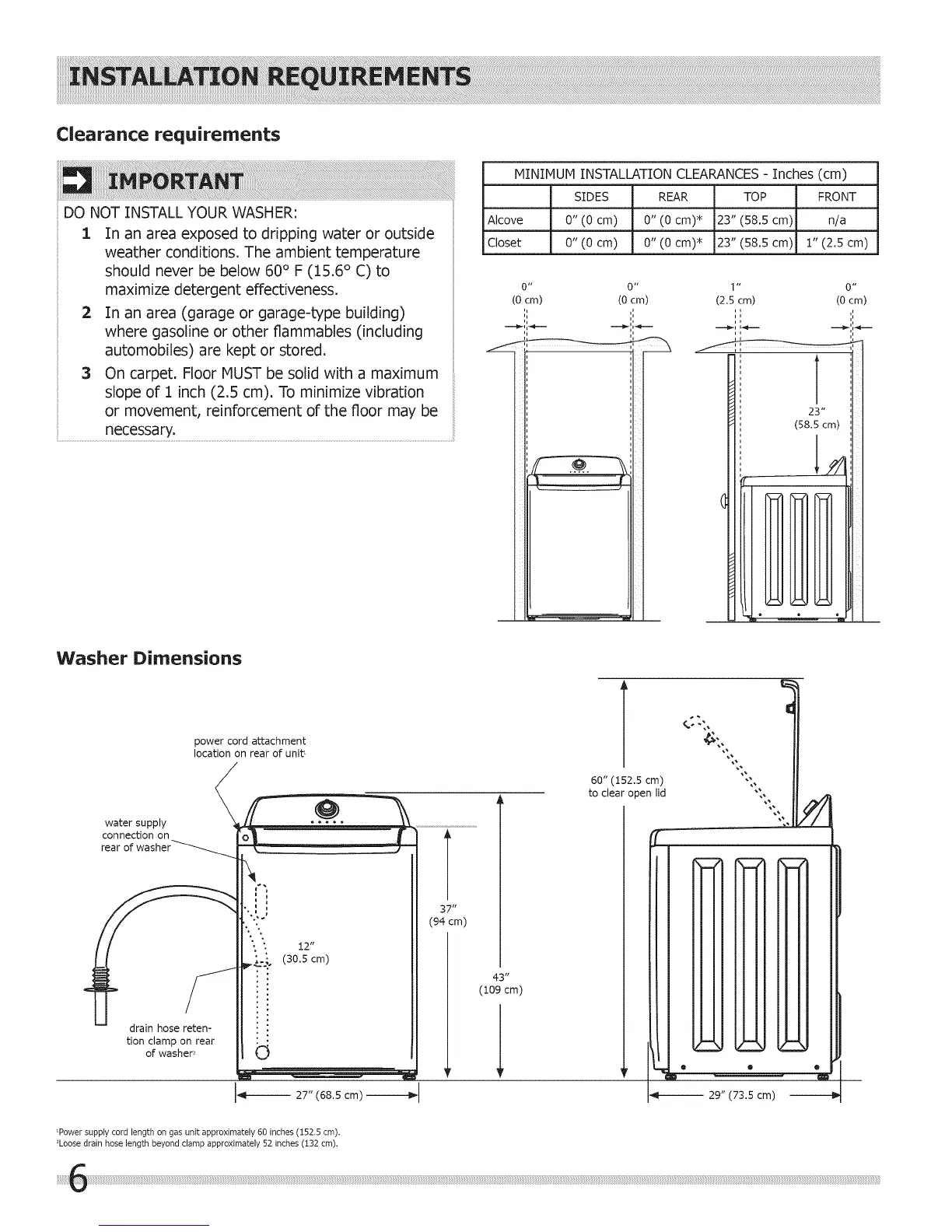

Clearance requirements
DO NOT INSTALL YOUR WASHER:
1 In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60° F (15.6 ° C) to
maximize detergent effectiveness.
2 In an area (garage or garage-type building)
where gasoline or other flammables (including
automobiles) are kept or stored.
3 On carpet. Floor MUST be solid with a maximum
slope of 1 inch (2.5 cm). To minimize vibration
or movement, reinforcement of the floor may be
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0" (0 cm) 0" (0 cm)* 23" (58.5 cm) n/a
Closet 0" (0 cm) 0" (0 cm)* 23" (58.5 cm) 1" (2.5 cm)
0" 0"
(0 cm) (0 cm)
;,,
-._',',.,,--- _ -,,---
0"
(0 cm)
Washer Dimensions
power cord attachment
location on rear of unit 1
/
\
water supply
connection on
rear of washer-_._
drain hose reten-
tion clamp on rear
of washeF
60" (152,5 cm)
to clear open lid
I'
: : 12"
,___. (30.5cm)
0
27" (68,5 cm)
37 H
(94 cm)
43 Ir
(109 cm)
<.:11,
29" (73.5 cm) ---------------------_
1Power supply cord length on gas unit approximately 60 inches (152.5 cm).
2Loosedrain hose length beyond clamp approximately 52 inches (132 cm).
