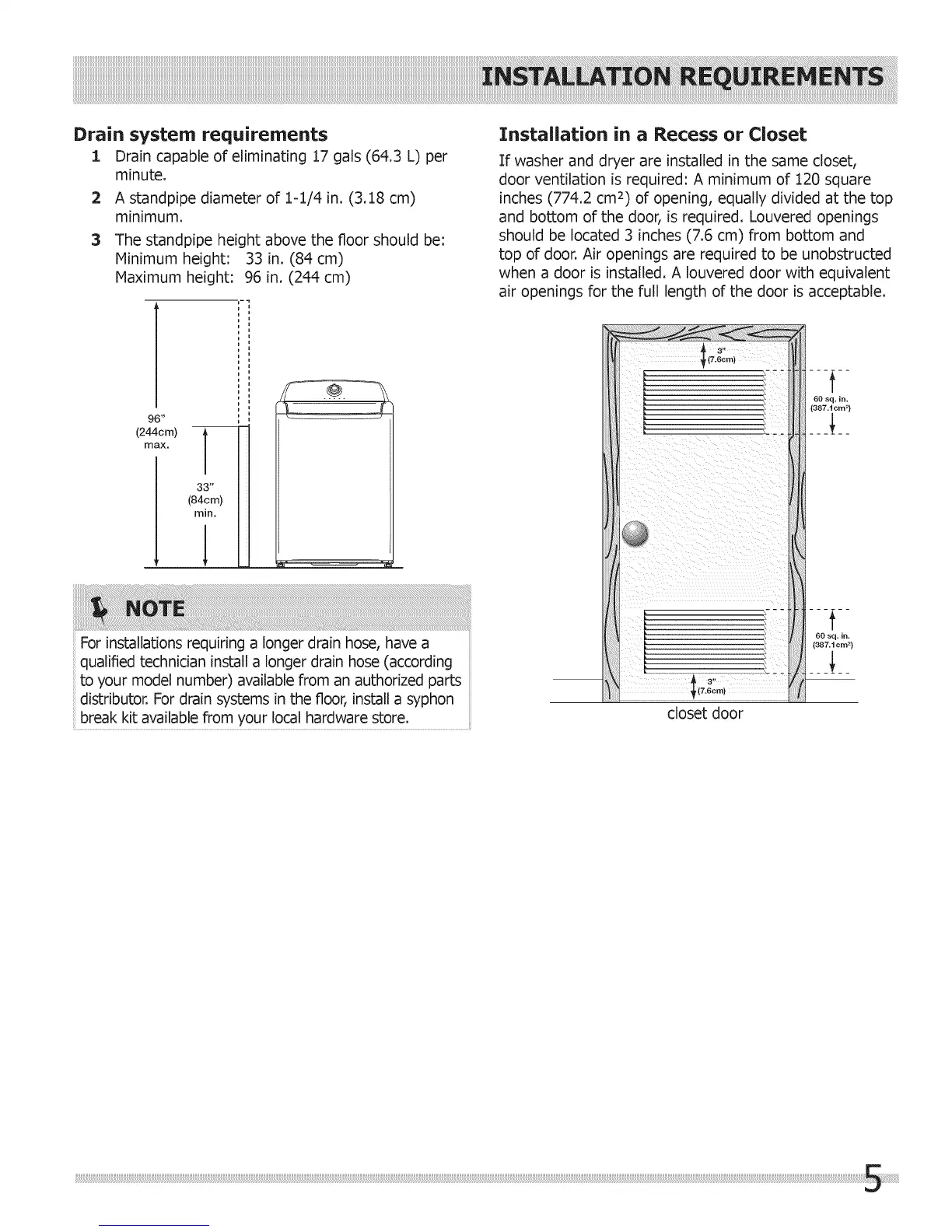

Drain system requirements
1 Drain capable of eliminating 17 gals (64.3 L) per
minute.
2 A standpipe diameter of 1-1/4 in. (3.18 cm)
minimum.
3 The standpipe height above the floor should be:
Minimum height: 33 in. (84 cm)
Maximum height: 96 in. (244 cm)
Installation in a Recess or Closet
If washer and dryer are installed in the same closet,
door ventilation is required: A minimum of 120 square
inches (774.2 cm2) of opening, equally divided at the top
and bottom of the door, is required. Louvered openings
should be located 3 inches (7.6 cm) from bottom and
top of door. Air openings are required to be unobstructed
when a door is installed. A Iouvered door with equivalent
air openings for the full length of the door is acceptable.
96"
(244cm)
max.
[
33"
(84cm)
rain.
1
0 _
For installations requiring a longer drain hose, have a
qualified technician install a longer drain hose (according
to your model number) available from an authorized parts
distributor. For drain systems in the floor, install a syphon
break k!t ava!!ab!e from your/oca! hardware store:......................................................
3'
i (7.6cm)
i \
closet door
