# = Fast-moving Parts 3 06/01
* = Non-Illustrated Parts
FAS154K1A Publication No.
5995348546

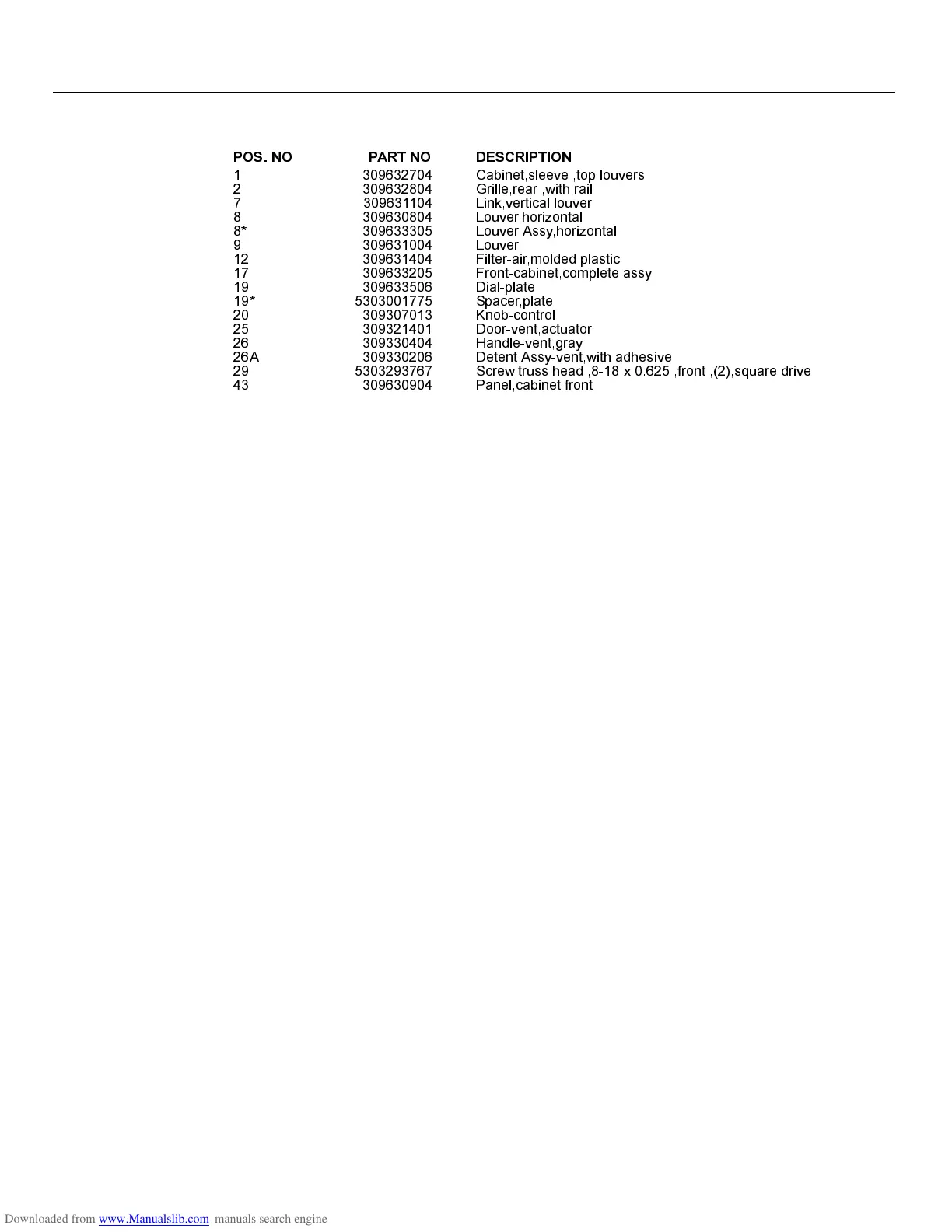

CABINET FRONT AND WRAPPER
POS. NO PART NO DESCRIPTION
1 309632704 Cabinet,sleeve ,top louvers
2 309632804 Grille,rear ,with rail
7 309631104 Link,vertical louver
8 309630804 Louver,horizontal
8* 309633305 Louver Assy,horizontal
9 309631004 Louver
12 309631404 Filter-air,molded plastic
17 309633205 Front-cabinet,complete assy
19 309633506 Dial-plate
19* 5303001775 Spacer,plate
20 309307013 Knob-control
25 309321401 Door-vent,actuator
26 309330404 Handle-vent,gray
26A 309330206 Detent Assy-vent,with adhesive
29 5303293767 Screw,truss head ,8-18 x 0.625 ,front ,(2),square drive
43 309630904 Panel,cabinet front
