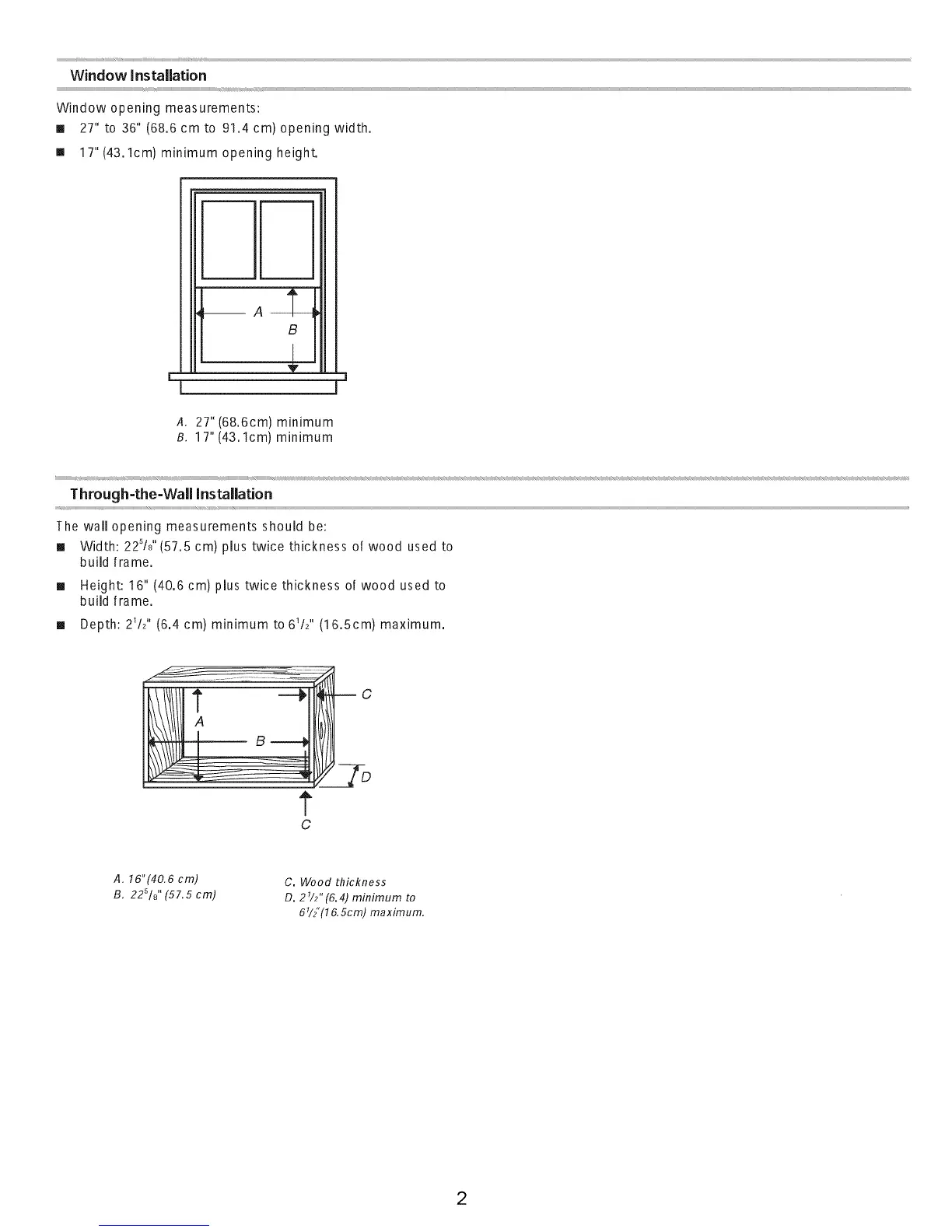

Window Installation
Window opening measurements:
[] 27" to 36" (68.6 cm to 91.4 cm) opening width.
[] 17"(43.1cm) minimum opening height.
mA__t_
B
{
,r
[:7_ =_
1 I
A. 27"(68.6cm) minimum
B. 17" (43.1cm) minimum
Through=the=Wall Installation
The wall opening measurements should be:
[] Width: 22s/8"(57.5 cm) plus twice thickness of wood used to
build frame.
[] Height: 16" (40.6 cm) plus twice thickness of wood used to
bui{d frame.
[] Depth: 2_/2" (6.4 cm) minimum to 6V2" (16.5cm) maximum.
? ....................... _ii_ii........ C
t
C
A. 16"(40.6 cm)
B. 225/_" (57,5 cm)
C. Wood thickness
D. 21/2"(6.4) minimum to
61/2"(16.5cm) maximum.
