Frigidaire FFEC3025UB User Manual

6

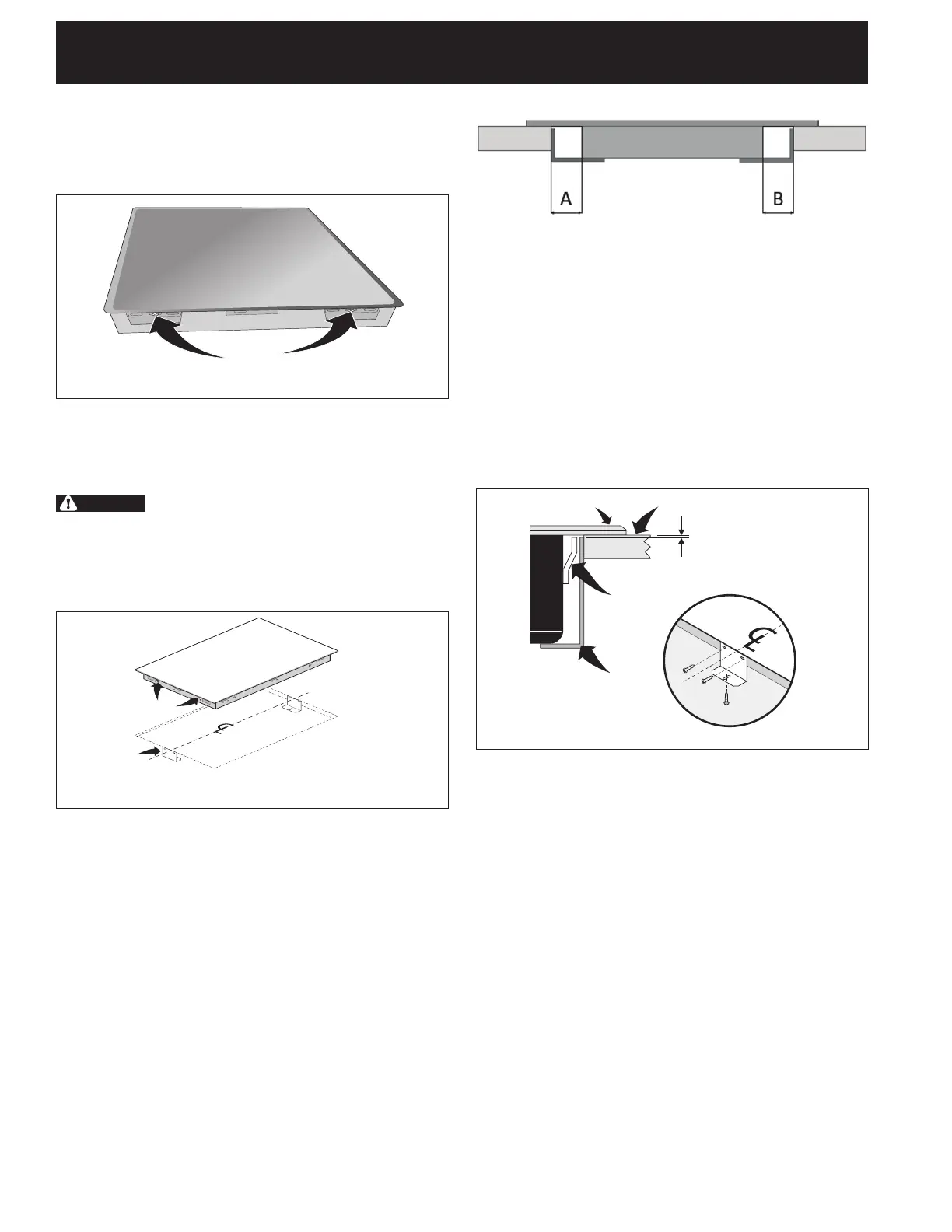

ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
Cooktop Installation
1. All Ceramic‑Glass Cooktops
Visually inspect the cooktop for damage. Also make sure
all cooktop screws are tight (see Figure 8).
Set the cooktop into the countertop cutout.
NOTE: Do not use caulking compound; cooktop should
be removable for service when needed.
WARNING
Do not remove the built in springs on
the edges of the cooktop. These springs center the
cooktop in the space provided. The cooktop must
be centered to prevent excess heat buildup that
may result in heat damage or fire (see Figure 9).
Screws
Figure 8
The retainer brackets MUST be installed, to meet
local codes or, in their absence, with the National
Electrical Code ANSI/NFPA No. 70—latest edition, or
with CSA Standard C22.1, Canadian Electrical Code,
Part 1 (see Figure 11).
Figure 9
8 Built-in
Springs
2 Retainer
Brackets
Position brackets on
unit cutout center
line (CL)
During the installation with wide cutout, make sure the
cooktop is centered. A and B gap should have the same
dimensions. The elongated holes on the bottoms of the
installation brackets are made to fit every cutout.
Cooktop
Retainer Brackets Must
Be Installed At Least
1/8" (0.3 cm) BELOW
Countertop
Built in
Spring
Countertop
Retainer
Bracket
Figure 11
Figure 10

Frigidaire FFEC3025UB Specifications

General

Style	smoothtop; drop-in
Color	stainless steel; black
Griddle	no
Glass Surface	yes
Induction	no
Number of Burners	4
Downdraft Vent	no
Control Type	knobs; ready-select®
Remote Control	no
Wi-Fi	no
Fuel	electric
Voltage	240/208 volts
Current	40

Weight and Dimensions

Depth	21 3/8 inch
Height	2 5/8 inch
Width	30 3/8 inch
Cutout Depth	19 5/8 inch
Cutout Width	28 1/2 inch
