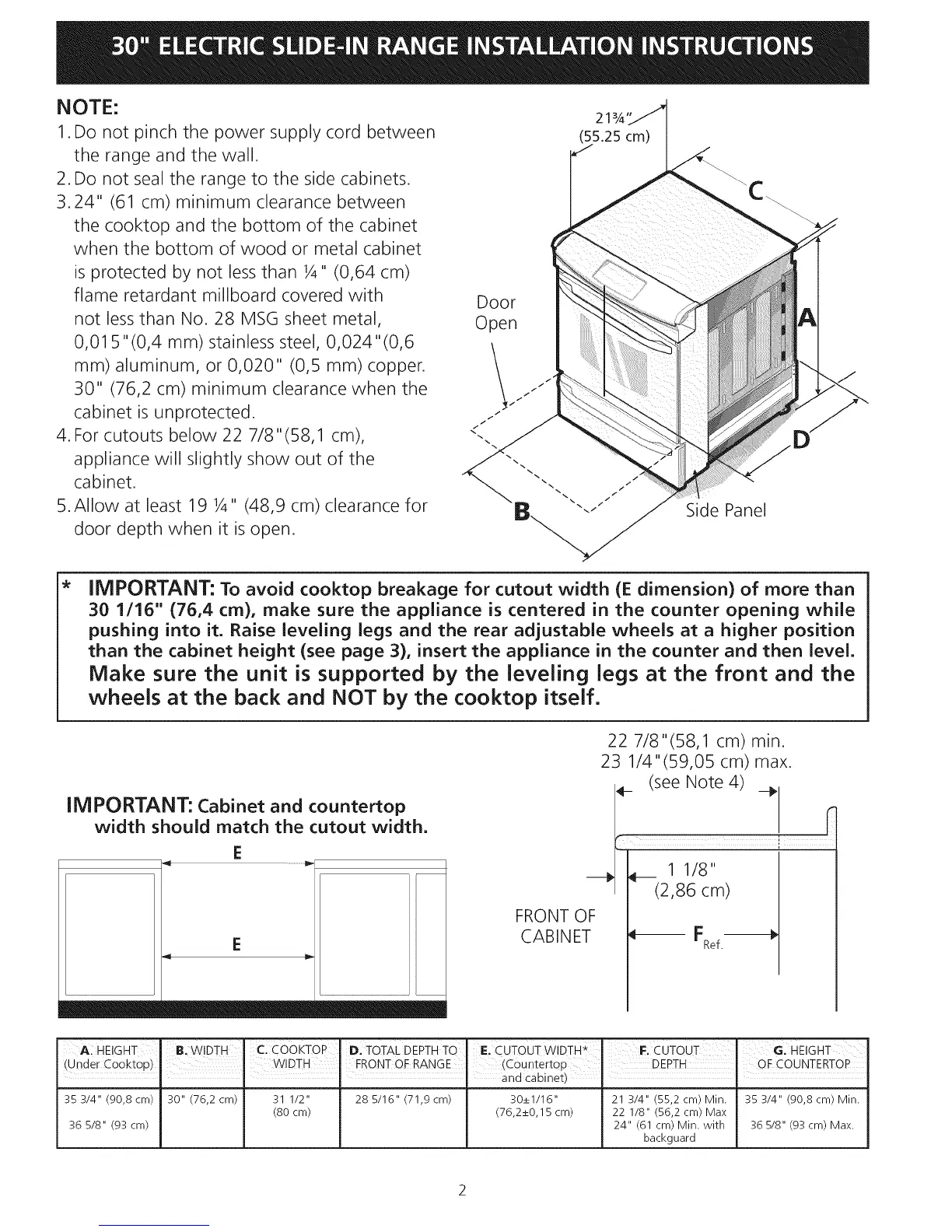

NOTE:
1. Do not pinch the power supply cord between
the range and the wall.
2. Do not seal the range to the side cabinets.
_3.24" (61 cm) minimum clearance between
the cooktop and the bottom of the cabinet
when the bottom of wood or metal cabinet
is protected by not less than ¼" (0,64 cm)
flame retardant millboard covered with
not less than No. 28 MSG sheet metal,
0,015 "(0,4 mm) stainless steel, 0,024"(0,6
mm) aluminum, or 0,020" (0,5 mm) copper.
_30" (76,2 cm) minimum clearance when the
cabinet is unprotected.
4. For cutouts below 22 7/8"(58,1 cm),
appliance will slightly show out of the
cabinet.
5.Allow at least 19 ¼" (48,9 cm) clearance for
door depth when it is open.
Door
Open
21
(55.25 cm)
Side Panel
IMPORTANT: To avoid cooktop breakage for cutout width (E dimension) of more than
30 1/16" (76,4 cm), make sure the appliance is centered in the counter opening while
pushing into it. Raise leveling legs and the rear adjustable wheels at a higher position
than the cabinet height (see page 3), insert the appliance in the counter and then level.
Make sure the unit is supported by the leveling legs at the front and the
wheels at the back and NOT by the cooktop itself.
IMPORTANT: Cabinet and countertop
width should match the cutout width.
E
E
22 7/8"(58,1 cm) min.
23 1/4"(59,05 cm) max.
F (see Note 4) __
_/_ 1 1/8
! (2,86 cm)
FRONT OF
CABINET _-- FRef.-_
A:HEIGHT B.W!DTH C Co0KToP . D. TOTAL DEPTHTO IE. CuToUTW!DTH* FiCUTOU T G. HEIGHT
(Unde[ Cooktop) WIDTH FRONTOF RANGE (Countertop DEPTH " OF COUNTERTOP
' ' I I and cabinet) I
35 3/4" (90,8 cm) 30" (76,2 cm) 31 1/2"
(80 cm)
36 5/8" (93 cm)
28 5/16" (71,9 cm) 30_+1/16" 21 3/4" (55,2 cm) Min. 35 3/4" (90,8 cm) Min.
(76,2_+0,15 cm) 22 1/8" (56,2 cm) Max
24" (61 cm) Min. with 36 5/8" (93 cm) Max.
backguard
