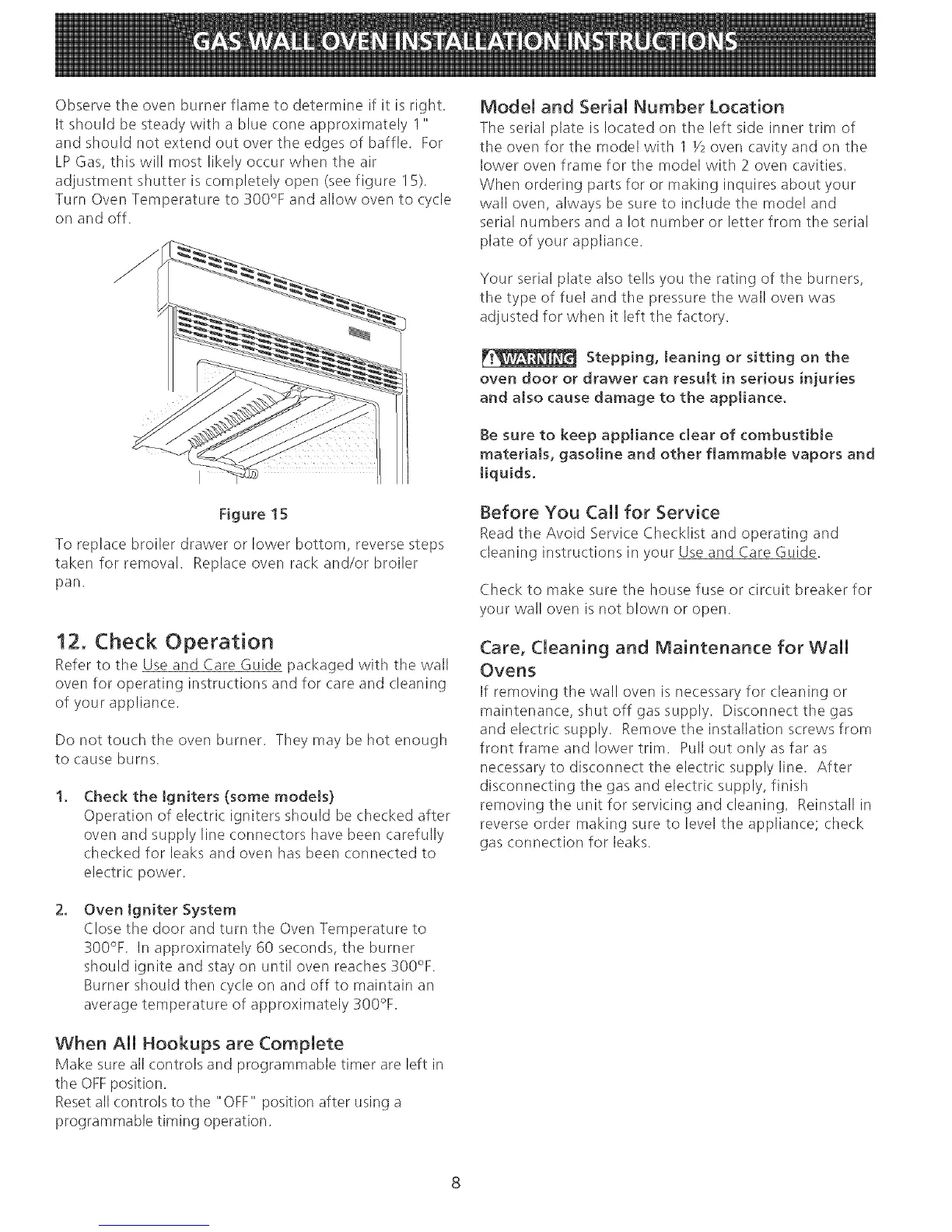

Observetheovenburnerflametodetermineif it isright.
It shouldbesteadywithablueconeapproximatelyI "
andshouldnotextendoutovertheedgesofbaffle.For
LPGas,thiswillmostlikelyoccurwhentheair
adjustmentshutteriscompletelyopen(seefigureI5).
TurnOvenTemperatureto300%andallowovento cycle
onandoff.
Figure15
Toreplacebroilerdrawerorlowerbottom,reversesteps
takenfor removal.Replaceovenrackand/orbroiler
pan.
12. Check Operation
Refer to the Use and Care Guide packaged with the wall
oven for operating instructions and for care and cleaning
of your appliance.
Do not touch the oven burner. They may be hot enough
to cause burns.
Check the igniters (some modeJs}
Operation of electric igniters should be checked after
oven and supply line connectors have been carefully
checked for leaks and oven has been connected to
electric power.
Oven Igniter System
Close the door and turn the Oven Temperature to
300°F. In approximately 60 seconds, tile burner
should ignite and stay on until oven reaches 300°F.
Burner should then cycle on and off to maintain an
average temperature of approximately 300°F.
When All Hookups are Complete
Make sure all controls and programmable timer are left in
the OFFposition.
Resetall controls to the "OFF" position after using a
programmable timing operation.
Model and Serial Number Location
The serial plate is located on tile left side inner trim of
the oven for the model with 1 Y2oven cavity and on tile
lower oven frame for tile model with 2 oven cavities.
When ordering parts for or making inquires about your
wall oven, always be sure to include the model and
serial numbers and a lot number or letter from the serial
plate of your appliance.
Your serial plate also tells you the rating of the burners,
the type of fuel and tile pressure tile wall oven was
adjusted for when it left tile factory.
Stepping, Jeaning or sitting on the
oven door or drawer can resuJt in serious injuries
and also cause damage to the appliance.
Be sure to keep appliance clear of combustible
materiaJs, gasoline and other flammable vapors and
tiquids.
Before You Call for Service
Read the Avoid Service Checklist and operating and
cleaning instructions in your Use and Care Guide.
Check to make sure the house fuse or circuit breaker for
your wall oven is not blown or open.
Care, Cleaning and Maintenance for Wall
Ovens
If removing the wall oven is necessary for cleaning or
maintenance, shut off gas supply. Disconnect the gas
and electric supply. Remove the installation screws from
front frame and lower trim. Pull out only as far as
necessary to disconnect the electric: supply line. After
disconnecting the gas and electric supply, finish
removing tile unit for servicing and cleaning. Reinstall in
reverse order making sure to level the appliance; check
gas connection for leaks.
