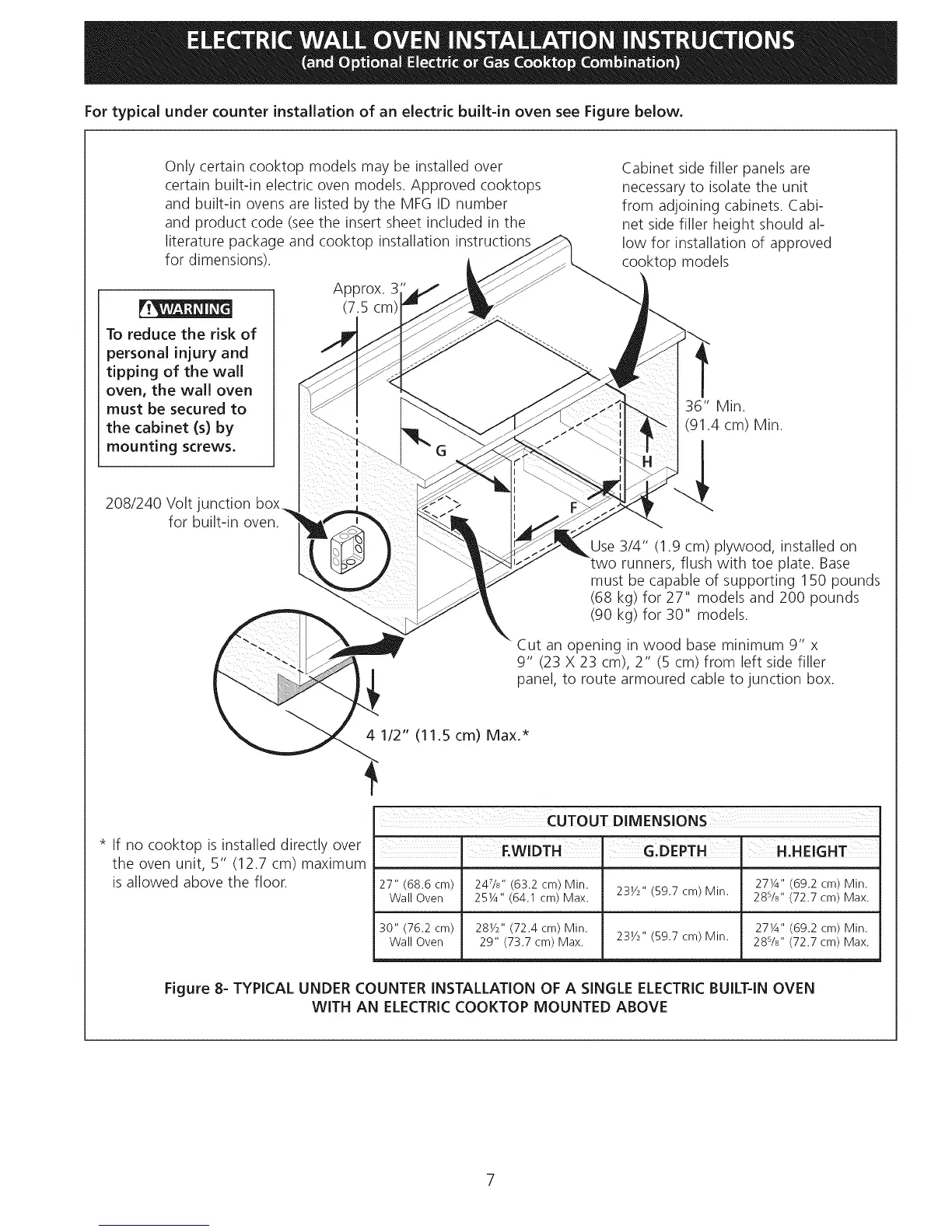

For typical under counter installation of an electric built-in oven see Figure below.
Only certain cooktop models may be installed over
certain built-in electric oven models. Approved cooktops
and built-in ovens are listed by the MFG ID number
and product code (see the insert sheet included in the
literature package and cooktop installation instructions
for dimensions).
To reduce the risk of
personal injury and
tipping of the wall
oven, the wall oven
must be secured to
the cabinet (s) by
mounting screws.
Approx. 3
(7.5 cm)
208/240 Volt junction box
for built-in oven.
.>
Cabinet side filler panels are
necessary to isolate the unit
from adjoining cabinets. Cabi-
net side filler height should al-
low for installation of approved
cooktop models
36" Min.
(91.4 cm) Min.
Use 3/4" (1.9 cm) plywood, installed on
two runners, flush with toe plate. Base
must be capable of supporting 150 pounds
(68 kg) for 27" models and 200 pounds
(90 kg) for 30" models.
Cut an opening in wood base minimum 9" x
9" (23 X 23 cm), 2" (5 cm) from left side filler
panel, to route armoured cable to junction box.
4 1/2" (11.5 cm) Max.*
* If no cooktop is installed directly over
the oven unit, 5" (12.7 cm) maximum
is allowed above the floor.
CUTOUTDIMENSIONS
I F.WIDTH I G:DEPTH l H:HEIGHT
27" (68.6 cm) 247/8'' (63.2 cm) Min. 23Y2" (59.7 cm) Min. 27¼" (69.2 cm) Min.
Wall Oven 25¼" (64.1 cm) Max. 285/8.' (72.7 cm) Max.
30" (76.2 cm) 281/2'' (72.4 cm) Min. 27¼" (69.2 cm) Min.
Wall Oven 29" (73.7 cm) Max. 23Y2" (59.7 cm) Min. 285/¢' (72.7 cm) Max.
Figure 8- TYPICAL UNDER COUNTER INSTALLATION OF A SINGLE ELECTRIC BUILT-IN OVEN
WITH AN ELECTRICCOOKTOP MOUNTED ABOVE
