8

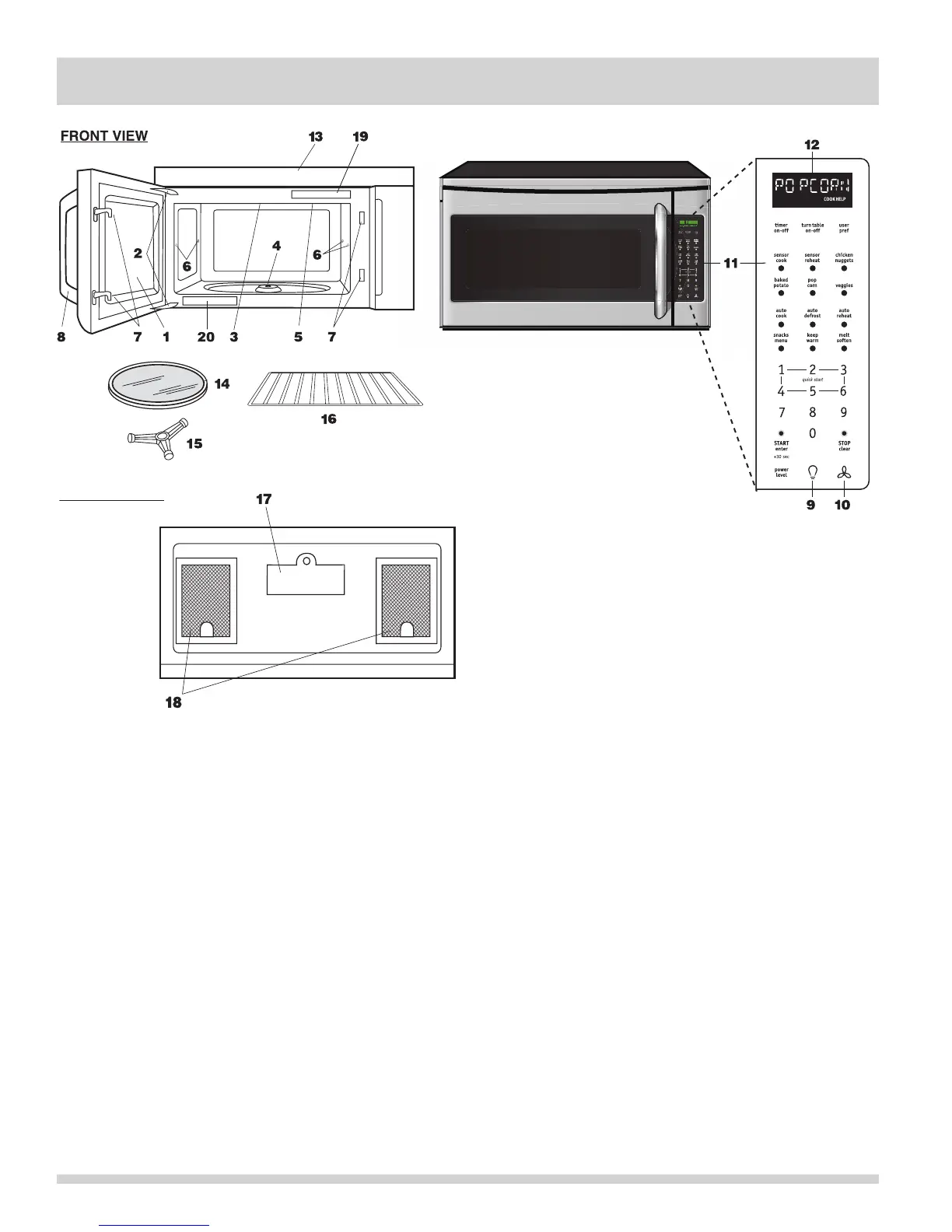

PART NAMES
1 Microwave oven door with see-through window
2 Door hinges
3 Waveguide cover:
DO NOT REMOVE.
4 Turntable motor shaft
5 Microwave oven light
It will light when microwave oven is operating or door
is open.
6 Rack holders
7 Safety door latches
The microwave oven will not operate unless the door
is securely closed.
8 Handle
9 Light hi/lo/off pad
Press the light hi/lo/off pad once for high, twice for
low and three times to turn off the light.
10 Vent hi/lo/off pad
Press the vent hi/lo/off pad once for high speed, twice
for low speed and three times to turn off the fun.
11 Control panel
12 Time display: Digital display, 99 minutes, 99 seconds
13 Ventilation openings
14 Removable turntable
The turntable will rotate clockwise or counterclockwise.
Only remove for cleaning.
15 Removable turntable support
First, carefully place the turntable support in the motor
shaft in the center of the microwave oven floor. Then,
place the turntable on the turntable support securely.
16 Rack for 2-level cooking/ reheating
17 Light cover
18 Grease filters
19 Menu label
20 Rating label (model and serial number)
(Front of microwave oven)
(Rear of microwave oven)
BOTTOM VIEW
U&C 2.0 side control_UL [B320] [8 8U&C 2.0 side control_UL [B320] [8 8 2/3/12 4:54:24 PM2/3/12 4:54:24 PM

Other manuals for Frigidaire FGMV205KB

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Frigidaire FGMV205KB and is the answer not in the manual?

Frigidaire FGMV205KB Specifications

General IconGeneral
StyleOver-the-Range
ColorBlack
Total Capacity1.7 Cu. Ft.
Temperature Settings-
Cooking ProgrammsGrill
Power Levels9
Fan Speeds2 Speed
Venting TypeConvertible
Special FeaturesChild Safety Lock
AccessoriesMetal Rack
Max Power Consumption1650 W
Microwave Power1000 W
Grill Power-
Convection Power-
Voltage120 V
Frequency60 Hz
Current15 A
Weight and Dimensions IconWeight and Dimensions
Depth16 3/4 in
Height17 1/16 in
Width29-15/16 in
Net Weight69 Lbs
